HAMGEEK HackRF One Software Defined Radio MAX2839 R9C + Portapack H4 V2.2.x SDR Radio Assembled with 5 Antennas

HAMGEEK HackRF One Software Defined Radio MAX2839 R9C + Portapack H4 V2.2.x SDR Radio Assembled with 5 Antennas

Advantages:
* This is a HamGeek Signature Edition
* It uses the MAX2839 chip
* With a Type-C port and a battery level display
* Maintains the original encoder features of H2

Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.2.0 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H4 and a FAT32 formatted MicroSD card over 1G.

HackRF One R9C:
1. Description:
* HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
* Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
* It is designed with a type-c port.

2. Specifications:
* 1 MHz to 6 GHz operating frequency
* Half-duplex transceiver
* Up to 20 million samples per second
* 8-bit quadrature samples (8-bit I and 8-bit Q)
* For GNU Radio, SDR#, and the like
* Software-configurable RX and TX gain and baseband filter
* Software-controlled antenna port power (50 mA at 3.3 V)
* SMA female antenna connector
* SMA female clock input and output for synchronization
* Convenient buttons for programming
* Internal pin headers for expansion
* Hi-Speed USB 2.0
* USB-powered
* Open source hardware
* HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

Improvements of H4:
* Single power on/off switch: When powered off, the battery will no longer phantom drain, meaning the device can be completely powered off.
* Advanced battery management IC and battery display: The screen can display the battery level, including percentage, voltage, and current/draw. It is easier to check the battery level.
* Matte screen: This matte screen helps you see the content of the screen more clearly in sunny outdoor environments.
* GPIO port: Since this feature is rarely used by users, it is built into the mainboard. If you need to use the GPIO port, the H4 cover must be opened.
* Improved charging speeds: The H4 improves both the charging quality and speed.
* Automatic sound switching between headphones and speakers: When you plug in the headphones, the H4 will automatically switch from speaker mode to headset mode. This is a feature not available in previous versions of Portapack.

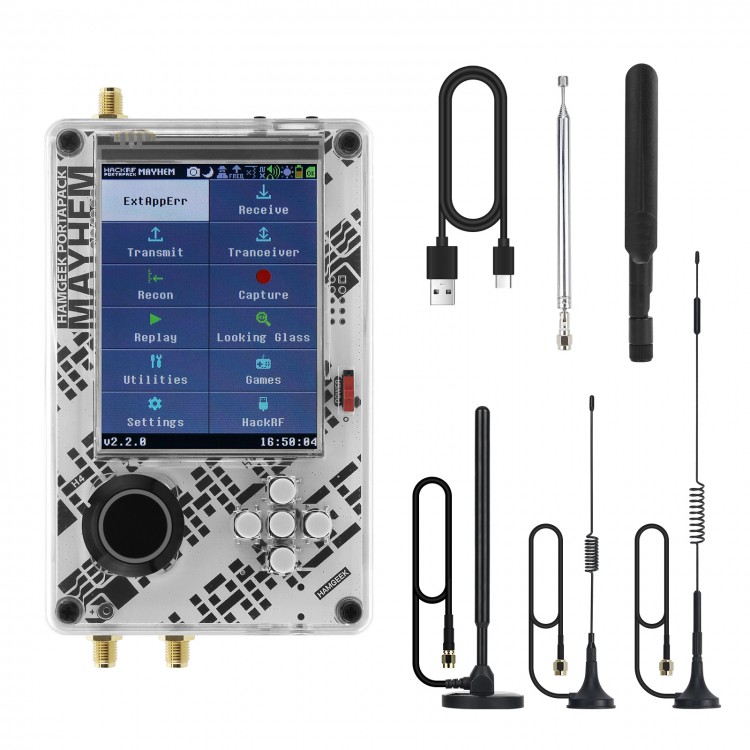

Packing List:
* 1 x HAMGEEK R9C + H4 (Assembled)
* 1 x Type-C Cable
* 1 x 40MHz-6GHz Telescopic Antenna
* 1 x 2.4/5/5.8GHz Antenna
* 1 x 35DBi GSM/3G/4G Antenna
* 1 x 40MHz-860GHz Antenna
* 1 x 700MHz-2700MHz Antenna

Packaging Details:
* Weight: 1kg

Note:
* The product is assembled.
* Battery is included.
* The H4 needs to be turned on in order to charge.
