HamGeek HG106B 80MHz-999MHz Digital SWR Meter SWR Power Meter below 120W w/ Data Cable and Adapters
Description:
It is easy to use HamGeek HG106B which is durable. It adds burst detection capability and can be used to measure digitally modulated signals such as DMR. In addition, it adds frequency compensation. This greatly broadens the frequency range. The frequency is divided into three frequency bands, allowing automatic switching and manual input of the signal frequency required for testing.
FMB: 80~109MHz
VHF: 110~299MHz
UHF: 300~999MHz
With a 128x64 dot matrix display, it can display all measured data. With refractive and reflective backlight, it can be used outdoors in bright light. And it can also be used at night.
With an aluminum alloy shell and laser lettering, it is not easy to fade. A big red button enables easy operation. Furthermore, its connector adopts a customized N-KF microwave connector. The housing is brass plated with bright nickel, while the pins are gold plated in beryllium bronze. It supports type-c charging and connection to a host computer.
Specifications:
- Frequency range: 80MHz~999MHz
- VSWR display: 1.00~99.9
- Maximum power: <120W
- Power error: <10%
- Continuous sampling: 100 times/sec
- Burst sampling: signal front trigger sampling, burst/continuous sampling automatic conversion
- Frequency compensation: Automatically measure the signal frequency and make frequency compensation for power conversion
- Sleep and wake: Sleep after 3 minutes without any operation. It can be woken up via radio frequency or manually
- Display: 128x64 dot matrix refractive and reflective LCD. Can be backlit or lit with natural light
- Key operation: one big red button
- RF interface: N-KF (50 ohms)
- Type-C interface: 200mA, charging via a USB cable. The host computer can be connected via a dedicated cable
- Li-ion battery: 3.7V/350mAH
- Dimensions: 95 x 35 x 26mm/3.7 x 1.4 x 1"
- Net weight of the main unit: about 120g/0.3lb

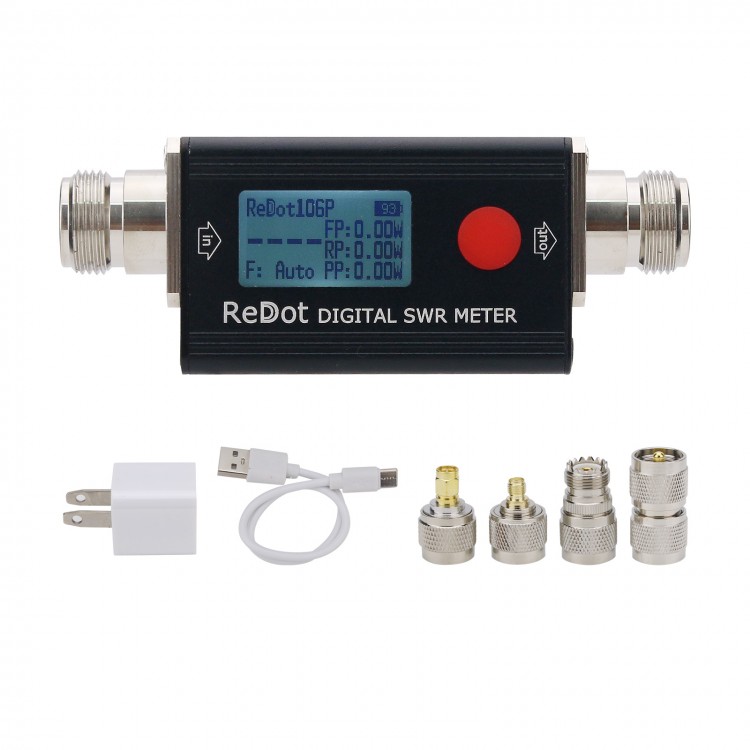

Package Included:
- 1 x Main Unit
- 1 x Type-C Data Cable
- 1 x Power Adapter Plug
- 1 x N/M-JK Adapter
- 1 x N/M-JJ Adapter
- 1 x N/SMA-JK Adapter
- 1 x N/SMA-JJ Adapter
