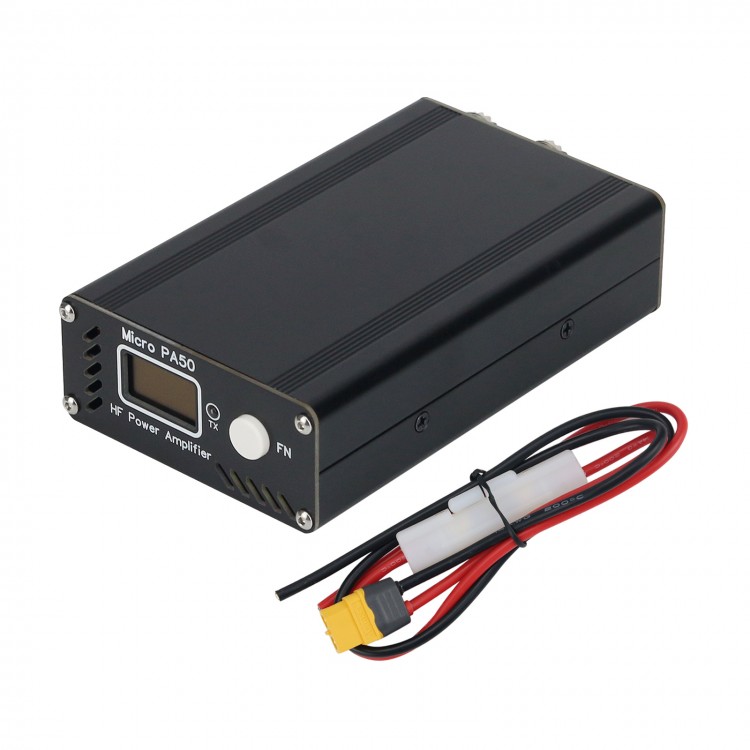

HamGeek PA50 50W HF Power Amplifier Micro PA50 3.5MHz-28.5MHz with 0.96" OLED Display
Features:
- 50W intelligent portable shortwave power amplifier
- High-speed automatic sending and receiving switching
- High-speed automatic switching of LPF filters
- Power and standing wave display and protection
- Voltage display and protection
- Temperature display, temperature protection, and intelligent cooling
- CW semi-insertion mode function
- Supports for ICOM and XIEGU band switching protocols
Specifications:
- Frequency range: 3.5MHz-28.5MHz
- Input power: 2-5W
- Input standing wave: ≤ 2.0 at 50 Ω
- Maximum output power: 40-50W at 13.8V
- Output impedance: 50 Ω
- Supply voltage: 8.5V-14.2V; 13.8V (typical)
- Current consumption: ≤ 12A
- Maximum working temperature: ≤ 55℃
- Dimensions: 88 x 38 x 143mm/3.5 x 1.5 x 5.6" (excluding protrusions); 88 x 38 x 160mm/3.5 x 1.5 x 6.3" (including protrusions)
- Weight: around 615g/1.4lb
Package Included:
- 1 x Power Amplifier
- 1 x Power Cable
