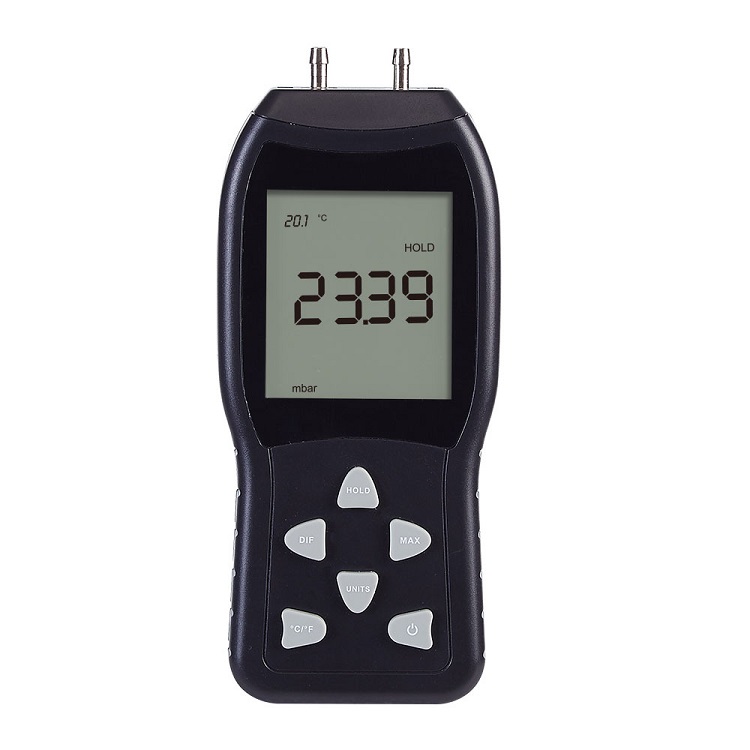

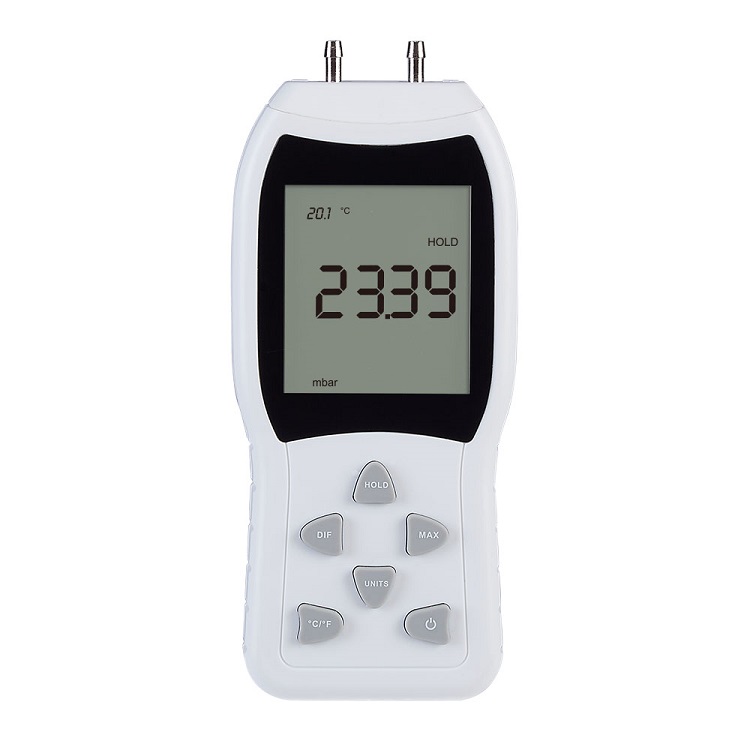

Handheld LCD Differential Gauge Tester Digital Manometer Air Pressure Meter with Dual Ports

Handheld LCD Differential Gauge Tester Digital Manometer Air Pressure Meter with Dual Ports

This instrument can measure the air pressure of the single pipe, or differential pressure of two pipes. It is suitable for measuring of ventilation and air conditions systems, and widely use for gas measurement, calibration, and any trouble shooting of any gas pressure systems.

Product details:

- Built-in high quality pressure sensor, provides high accuracy measurement.

- 2.8 inch large LCD backlight display screen, providing clear reading.

- 12 selections of measuring unit: kPa, psi, kg/cm²; ozin², bar, mbar, inHg, mmHg, inH₂O, ftH₂O, cmH₂O.

- Low battery indicator and pressure unit indicator.

- Zero adjustment, offset and DIF function.

- Automatic/manual power off function.

- Data hold and automatically shutdown function.

- Suitable for measurement and field check of ventilation and air conditioning system, corrective maintenance for clean room or any gas pressure system.

Specifications:

- Item name: Manometer

- Model No: JD-102

- Color: White/Black

- Display screen: 2.8 inch

- Unit: kPa, psi, kg/cm²; ozin², bar, mbar, inHg, mmHg, inH₂O, ftH₂O, cmH₂O, Pa

 - Selectable pressure range: ±2.999 psi

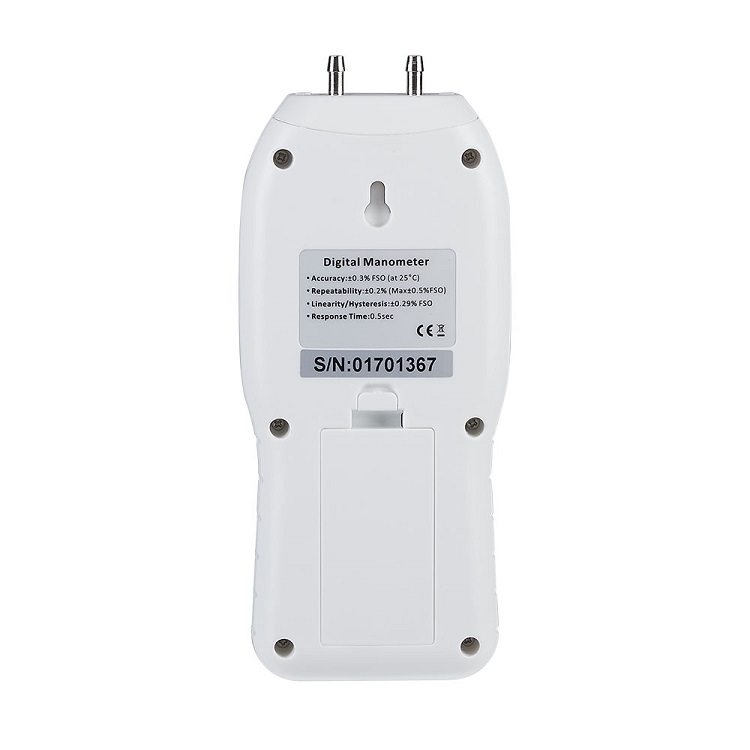

- Accuracy: ± 0.3% FSO (at 25℃)

- Repeatability: ± 0.2% (Max ± 0.5% FSO)

- Response time: 0.5s

- Over range indicator: Err 0

- Under range indicator: Err 1

- Temperature: -40  ℃ to 80 ℃ （-40℉ to 176℉）

- Operating conditions: 0℃ to 50℃ (32 ℉  to 122℉)

- Storage conditions: -10 ℃ to 60 ℃ (14 ℉  to 140 ℉)

- Battery: 9V battery (Not included)

- Size: 164 x 70 x 32 mm

- Weight: 0.2kg

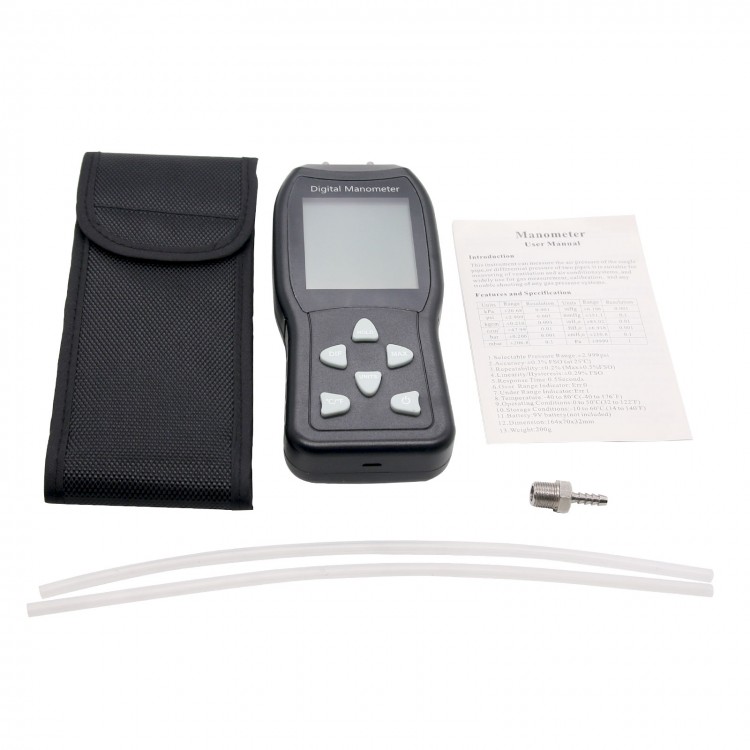

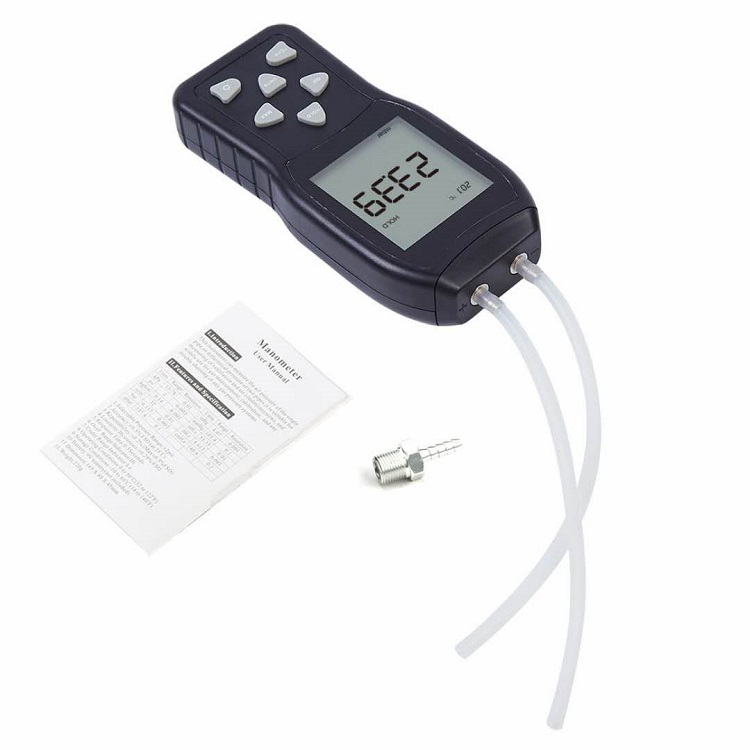

Package Included:

- 1 x Manometer

- 2 x Plastic Pipes

- 1 x Metal Connector

- 1 x User Manual
