Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $659.71 | $646.24 | $626.05 | $599.12 | Contact US |
Hantek DSO1062S Portable Digital Multimeter Oscilloscope USB PC Based Storage 60MHz 2CH Automotive Diagnostic-Tool

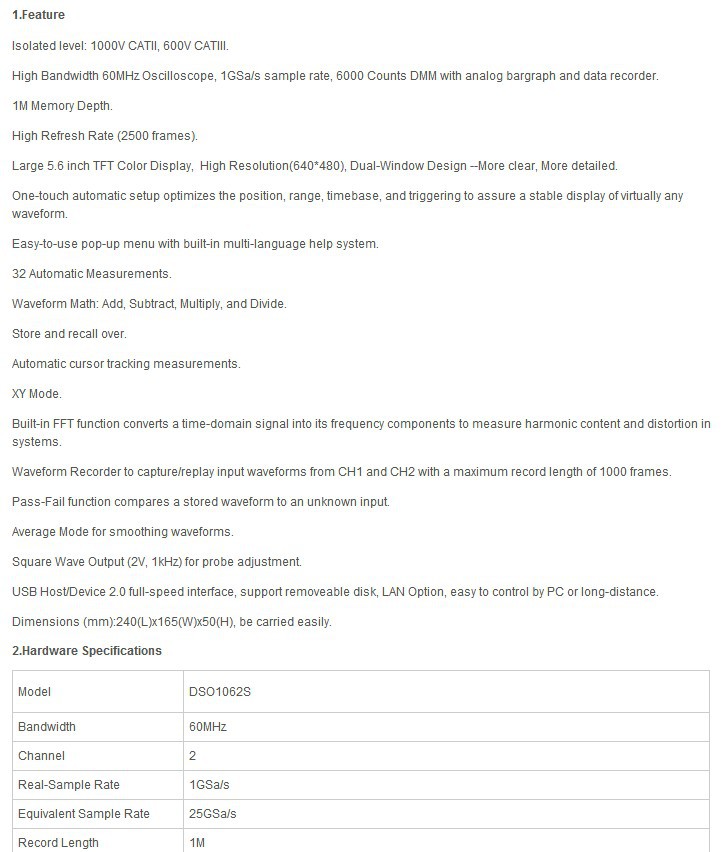

Feature:
- Isolated level:1000V CATII,600V CATIII.
- High Bandwidth 60MHz-200MHz Oscilloscope,1GSa/s sample rate, and 6000 Counts DMM with analog bargraph , and data recorder.
- 1M Memory Depth.
- High Refresh Rate (2500 frames)
- Large 5.6 inch TFT Color LCD Display,High Resolution(640*480), Dual-Window Design --More clear, More Detailed
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform
- Easy-to-use pop-up menu with built-in multi-language help system
- 23 Automatic Measurements
- Waveform Math: Add, Subtract, Multiply, and Divide
- Store and recall over
- Automatic cursor tracking measurements
- XY Mode
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
- Waveform Recorder to collect/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
- Pass-Fail function compares a stored waveform to an unknown input
- Average Mode for smoothing waveforms
- Square Wave Output (2V, 1kHz) for probe adjustment
- USB Host/Device 2.0 full-speed interface ,support removeable disk, LAN Optional ,Easy to control by PC or long-distance.
- Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
