Happymodel Larva-X HD 125MM 2-3S Whoop Drone Assembled Whoop HD Toothpick HD (For Frsky D8 RX)

Availability: In stock, usually dispatched in 1 business day

  • Price:$148.65
  • Price in reward points: 1487 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $145.68 $142.70 $138.24 $132.30 Contact US
Quantity:

Happymodel Larva-X HD 125MM 2-3S Whoop Drone Assembled Whoop HD Toothpick HD (For Frsky D8 RX)

Features:

- Toothpick HD and Whoop HD 2 in 1 combo (Default delivery in Toothpick HD style).
Toothpick style compatible with 2.5" and 3" propellers.
- Support for Betaflight to adjust parameters. Multiple flight modes available.
- EX1203 High efficiency brushless motors weighs only 4.7g, with double ball bearings.
- Integrated OSD function enables easy monitoring of flight voltage, receiver's signals, and ensures compatibility with main stream remote controls.
- Camera for Caddx Baby Turtle provides 1080P 60FPS DVR video, with adjustable camera angle.
- VTX features switchable power 25mw-200mw, built-in function for Smartaudio. You can adjust flight control parameters via OSD, adjust flight control PID and VTX frequency point parameters.
- Drones have been assembled and tested before delivery. Please matching the frequency of the drone and your remote control before using.
- Buzzer is ready to use.

Specifications:
- Brand Name: Happymodel
- Item Name: Larva-X HD Micro FPV Brushless Drone
- Wheelbase: 125mm

Receiver Options:
- For Frsky D8 (D8/D16 Switchable SPI Receiver)
- For Flysky (AFHDS/AFHDS-2A Switchable)
- For DSM2/DSMX
- For Frsky XM+ (For External Frsky XM+ Receiver)
- For Frsky R-XSR (For External Frsky R-XSR Receiver)
- For TBS CRSF (For External TBS CRSF Nano Receiver)

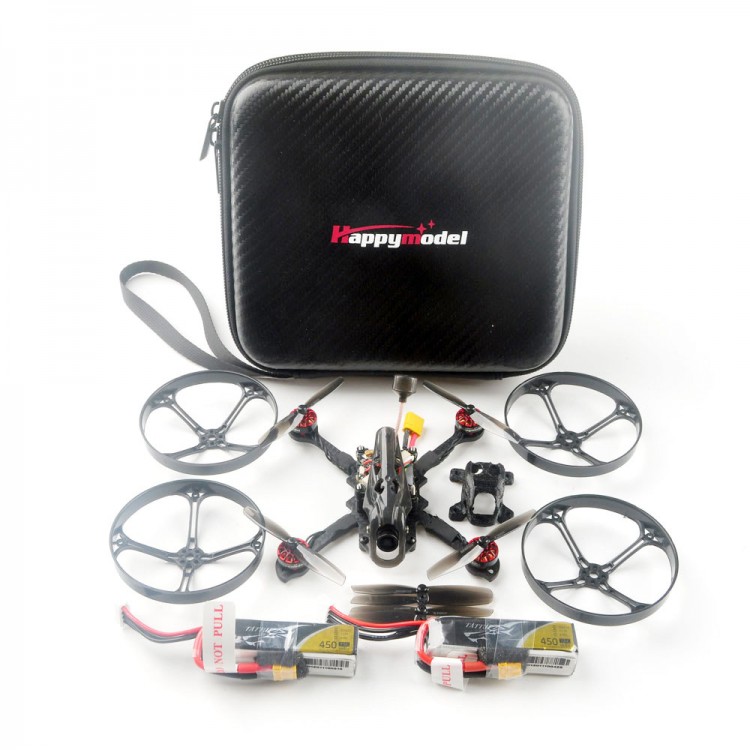

Package Included:
- 1 x Larva-X HD Frame
- 4 x Whoop Protective Shields
- 1 x SPI Receiver For Crazybee F4FR V3.0 PRO FC built-in Frsky SPI D8 RX
- 1 x Protective Shield For Spare Camera
- 4 x EX1203 KV6200 Brushless Motors
- 1 x Set of Propellers
- 1 x FPV Camera For CADDX Baby Turtle
- 1 x VTX 5.8g 25mW~200mW Switchable
- 1 x 5.8g Antenna For Micro UXII
- 1 x Propeller Disassemble Tool
- 1 x Storage Bag

Note:
- It is finished and ready to use.
- Batteries are not included in the package.


Accessories Parameters:
Motor:
- Mode: EX1203 KV6200
- Configuration: 9N12P
- Stator Diameter: 12mm
- Stator Length: 3mm
- Shaft Diameter: 1.5mm
- Motor Dimension(Dia.*Len): 15mm*15mm
- Weight(g): 4.7g

Flight Controller:
- (For Frsky SPI RX version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
- (For Flysky SPI RX version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
- (External RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Board Size: 28.5 * 28.5MM
- Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
- Could add external receiver on the FC board
- Built-in OSD For Betaflight (SPI Control)
- Built-in Current meter Max. 70A
- Current meter scale set to 470
- Built-in 5V 1A BEC
- Built-in voltage detection

On-Board 4-In-1 ESC:
- MCU upgraded to EFM8BB21
- Current: 10A continuous peak 12A (5 seconds)
- Support for BLHeliSuite programmable
- Factory Firmware: F_H_40_REV16_7.HEX
- Default Protocol: DSHOT600

For Frsky SPI D8 Receiver Version:
- SPI BUS receiver for Frsky D8
- Support for Non EU transmitter D8 model
- Channels: 8ch
- Fail-safe support
- No ground interference (Transmitter and receiver 1 m from the ground): 100m~200m

For Flysky SPI Receiver Version:
- SPI BUS receiver
- Protocol: AFHDS and AFHDS-2A Switchable
- Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
- No ground interference (Transmitter and receiver 1 m from the ground): 100~200m
- Fail-safe support

For External DSMX Version:
- Resolution: 1024/2048
- Operating Voltage: 3.3V
- Working Current: 60MA
- Size: 18mm*13mm*5mm
- Antenna Length: 30mm
- Protocol: DSM2/DSMX

For External Frsky XM+ Version:
- Dimension: 21.5*12*3.5mm(L x W x H)
- Weight: 1.6g
- Number of Channels: Up to 16CH from SBUS (1-15ch for PWM, 16ch RSSI for FC)
- Operating Voltage Range: 3.7~10V
- Operating Range: Full range
- With RSSI output on board: Analog 0~3.3V
- Antenna: 10cm
- Firmware Upgradable
- Compatibility: Fit for FrSky D16 mode

For External Frsky RXSR Version:
- Weight: 1.5g
- Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
- Operating Voltage Range: 3.5V~10V
- Operating Current:70mA@5V
- Firmware Upgradable
- Compatibility: For FrSky X Series modules and radios in D16 mode
- Could support for Frsky New ACCST Protocol ( Upgrade firmware)

For External TBS CRSF Nano Receiver Version:
- For Original TBS CROSSFIRE Receiver, CRSF Protocol, fit for Official TBS transmitter

VTX:
- Output Power: 25~200mw switchable
- Frequency: 40CH
- Input Voltage: 3.3V 5.5V
- Current Consumption: 300mA(type)
- Antenna: Antenna For Micro UXII
- Frequency: 5.8GHz 5bands 40 channels
- With Race band
- Support for Smartaudio. Ready to use
- Weight: 3g

Camera For Caddx Baby Turtle:
- TV system: NTSC/PAL changeable
- Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
- Power Input: DC 4.5-20V
- Mini. Illumination: 0.01lux
- Image Resolution: 2 Megapixels
- Working Current: 380mA@5V/160mA@12V (low consumption)
- OSD Menu: Yes (Support Voltage Display)
- Video Files: MP4
- Audio: Support
- Electronic Shutter: PAL: 1/50-100,000 NTSC: 1/60-100,100
- SNR: >60dB (AGC OFF)
- Video Output: CVBS
- Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
