Description:

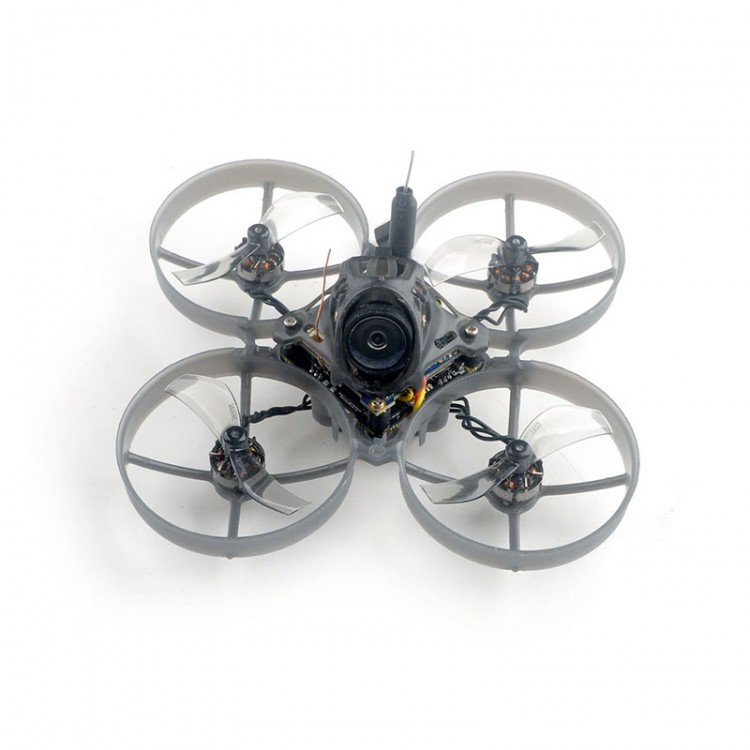

Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO flight controller supports ESC with a maximum current output of 12A. We added black-box for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external black-box is not installed perfectly and insert SD card is not friendly to most of the people, however we still think it's really excited for this small whoop could record a video with gyroflow steady and keep safe flying.

Features:
* X12 5-IN-1 AIO flight controller
* VTX Power up to 400mw
* NEW RS0802 KV20000 motors
* 1080P HD Video record
* Blackbox Ready support GYROFLOW
* Smooth and powerful
* Compatible for 1S Lipo/LIHV

Specifications:
* Brand Name: Happymodel
* Item Name: Mobula7 1S HD 75mm Micro FPV whoop drone
* Wheelbase: 75mm
* Size: 99 x 99 x 45.5mm
* Weight: 33g

Package Included:
* Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame) x 1
* X12 flight controller for Frsky V1.0/V2.1 with built-in SPI 2.4G receiver for FRSKY x 1
* External Blackbox Module support gyroflow x 1
* RS0802 KV20000 brushless motor x 4
* Gemfan 1610-2 bi-blade propellers (4CW+4CCW) x 1
* Runcam Split3-Lite Camera+1080P DVR x 1
* 1S series balance charging board x 1
* Propeller disassemble tool x 1

Note:
* 1S 450mah/550mah/650mah batteries (not included) are recommended.

Spare Parts Specifications:
Motor
* Mode: RS0802 KV20000
* Configuration: 9N12P
* Stator Diameter: 8mm
* Stator Length: 2mm
* Shaft Diameter: 1.5mm
* Motor Dimensions (Dia.*Length): 10.5mm*13.5mm
* Weight(g): 2.0g
* No. of Cells (Lipo): 1S only

Propellers
* Weight: 0.24g
* Material: PC
* Pitch: 1 inch
* Props Dia.: 40mm
* Center Thickness: 5mm
* Center Hole Dia.: 1.5mm

Flight controller
* For X12 Frsky V1.0/V2.1 flight controller built-in SPI FRSKY 2.4G receiver Target: CRAZYBEEF4FR
* MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
* Sensor: ICM20689 or BMI270 (SPI connection)
* Mount hole size: 25.5 x 25.5mm
* Built-in 12A(each) Blheli_S 4in1 ESC
* Built-in Betaflight OSD (SPI Control)
* Built-in 5.8G 0mw~400mw VTX for OpenVTX
* Built-in receiver for ExpressLRS 2.4G or Frsky D8/D16 (optional)
* Built-in voltage detection
* Built-in current sensor

Onboard 4in1 ESC
* Power supply: 1S LiPo/LiPo HV
* Current: 12A continuous peak 15A (3 seconds)
* Programmable
* Factory firmware: Z_H_30_REV16_7.HEX
* Default protocol: DSHOT300
* Support firmware for Bluejay
* When use firmware for Blujay with 48khz, should set startup power to 1100/1200

Onboard SPI 2.4GHz Receiver for ExpressLRS (optional)
* Packet Rate option: 50Hz/150Hz/250Hz/500Hz
* Firmware version for ExpressLRS: V2.0
* RF Frequency: 2.4GHz
* Antenna: Enameled copper wire length 30mm
* Telemetry output Power: < 12dBm
* Receiver protocol: for SPI ExpressLRS
* Compatible with TX Module for ExpressLRS V2.0
* Couldn't flash separately firmware for ExpressLRS

Onboard receiver for Frsky SPI D8/D16 (optional)
* SPI BUS receiver for Frsky D8 D16
* Could working on protocol for FRSKY D8/D16/D16 LBT/REDPINE/SFHSS
* Channels: 8ch or 16CH
* No ground interference (Transmitter and receiver 1m/3.3ft from the ground): 200meter/656.2ft
* Fail-safe support

Onboard 5.8g for OPENVTX
* Firmware version: for OPENVTX
* For Smartaudio v2.1
* PIT Mode support
* RCE Mode support
* Channels:48ch
* Transmitting Power: 0/RCE/25mw/100mw/400mw
* Power supply: DC 5V
* Current (5v): < 650ma (400mw)

Runcam Split3-Lite
* Model: RunCam Split3-Lite
* Field of View(FOV): Recording FOV 165° (FPV FOV: 165° at 16:9, 130° at 4:3)
* Video Resolution: 1080 at 60fps/1080 at 50fps/1080 at 30fps/720 at 60fps
* Video File Format: MOV
* Image Resolution: 2MP
* TV Mode: NTSC (720*480)/PAL (720*576) Switchable
* Interface: JST 1.25mm / UART and SH 1.0mm
* Max Micro SD Card up to 64G (need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)
* Hole Distance of Installation: 25.5 x 25.5mm
* PCB Size: 29 x 29mm
* Lens Module Size: 14 x 14mm
* Lens Specs: M9
* Power Input: DC 5-20V (Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera)
* Working Current: 450mA at 5V

External Blackbox and voltage booster module
* Size:18 x 15.5 x 4.5mm
* With Built-in Voltage booster module
* Weight: 1.5gram
* SD Card support max to 32GB
* SD Card need to use FAT32 Format
* Notes: Need to careful to insert the TF SD Card, and don't pull it out while install battery
