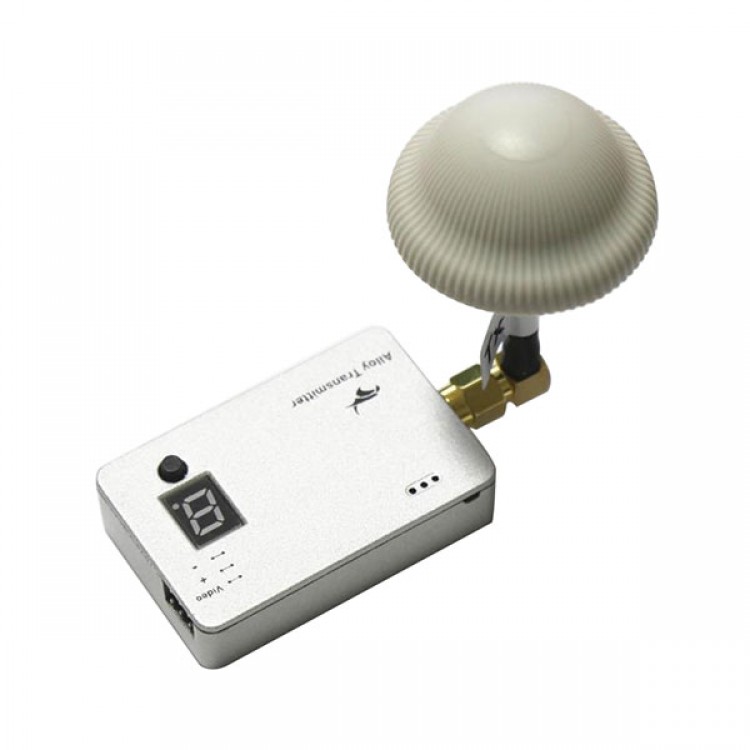

Hawk Eye Alloy 5.8G 600MW Transmitter 32Ch FPV AV Sender + Antenna 6Km Range

Hawk Eye Alloy 5.8G 600MW Transmitter 32Ch FPV AV Sender + Antenna 6Km Range

Specs:
- Power: 600mW
- Voltage: 6V - 28 V DC
- Current: 240mA @12V
- Channel number: 32
- size: 51×34×12 MM
- Weight: 42g
- Material:Aluminium Alloy
- Frequency:5.8G
- Input voltage:2S-6S
- LED Display
- With mushroom antenna
- Range:6000m in open filed/3000 in vertical

Superb heat resistance,you don't need to worry about the overheat.

Frequency:
A1: 5.645G B1: 5.740G C1: 5.725G D1: 5.733G
A2: 5.665G B2: 5.760G C2: 5.745G D2: 5.752G
A3: 5.685G B3: 5.780G C3: 5.765G D3: 5.771G
A4: 5.705G B4: 5.800G C4: 5.785G D4: 5.790G
A5: 5.885G B5: 5.820G C5: 5.805G D5: 5.809G
A6: 5.905G B6: 5.840G C6: 5.825G D6: 5.828G
A7: 5.925G B7: 5.860G C7: 5.845G D7: 5.847G
A8: 5.945G B8: 5.860G C8: 5.865G D8: 5.866G

Note:The antenna should be fixed vertically to the machine for good performance.

Lock the KEY:
The key will be locked in order to avoid some misoperations. In key-locked mode,
current frequency group and frequency will be displayed in the LED window with a
cycle time of 5 seconds. When the key has been released for 5 seconds, it will be
locked automatically, and the LED display window will flash twice to remind us.
Unlock the KEY:
Press the key twice in 2 seconds, the key will be unlocked. The LED will flash
twice to remind us. When the key is unlocked, current frequency group and frequency
will be displayed in the LED window with a cycle time of 1.5 seconds. When
connected to power, or released for 5 seconds, the key will be locked automatically.

Package includes:
- Alloy shell transmitter x 1
- Mushroom antenna x 1
- Cable x 2
