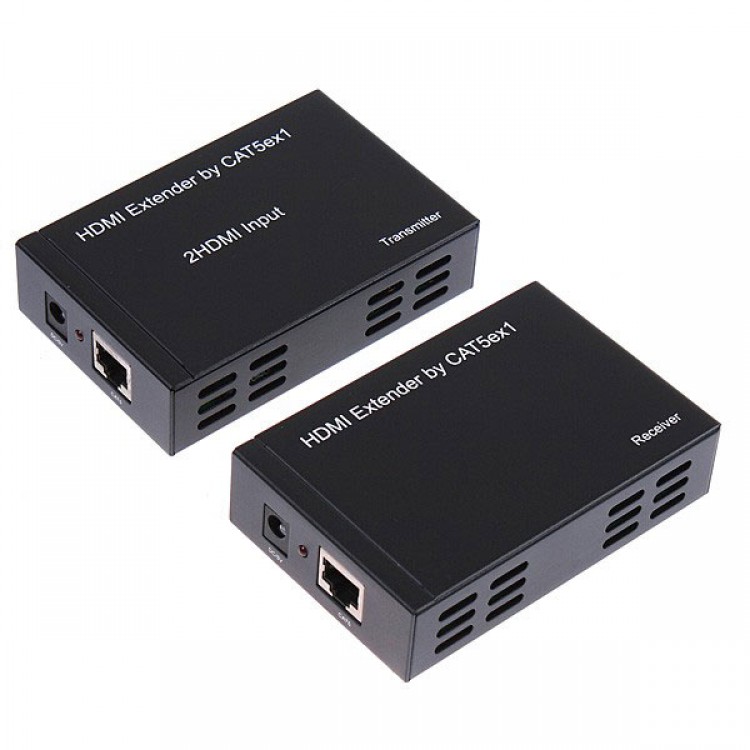

HDMI over ONE CAT5E/CAT6 HDMI Extender (CAT6/50m) HDV-HE50
The HDMI Extender over ONE CAT5E/CAT6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT5E/CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Extender and receiver, over ONE CAT5E/CAT6 extender is your substantial HDMI extender tool.
Features
- HDMI 1.3, HDCP 1.1 and DVI1.1 Compliant
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
- Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away
- When transmitting a signal in 1080p resolution the CAT5E/CAT6 operating distance is 50 meters
- Supports XVYCC
Specifications
|
Frequency Bandwidth |
2.25Gbps (single link) |
|
HDMI Transmitter Input/Output Ports |
2 x HDMI Female port/1 x CAT5E/CAT6 |
|
HDMI Receiver Input/Output Ports |
1 x HDMI Female port/1 x CAT5E/CAT6 |
|
Power Supply |
5V/1A DC |
|
ESD Protection Human Body Model |
± 8kV (air-gap discharge) ± 4kV (contact discharge) |
|
Dimensions (mm) |
65(W) X 100 (D) X 25 (H) |
|
Chassis Material |
Aluminum |
|
Operating Temperature |
0˚C ~ 40˚C / 32˚F ~ 104˚F |
|
Storage Temperature |
-20˚C ~ 60˚C / -4˚F ~ 140˚F |
|
Relative Humidity |
20~90% RH (non-condensing) |
HDMI Extender User Manual Download
