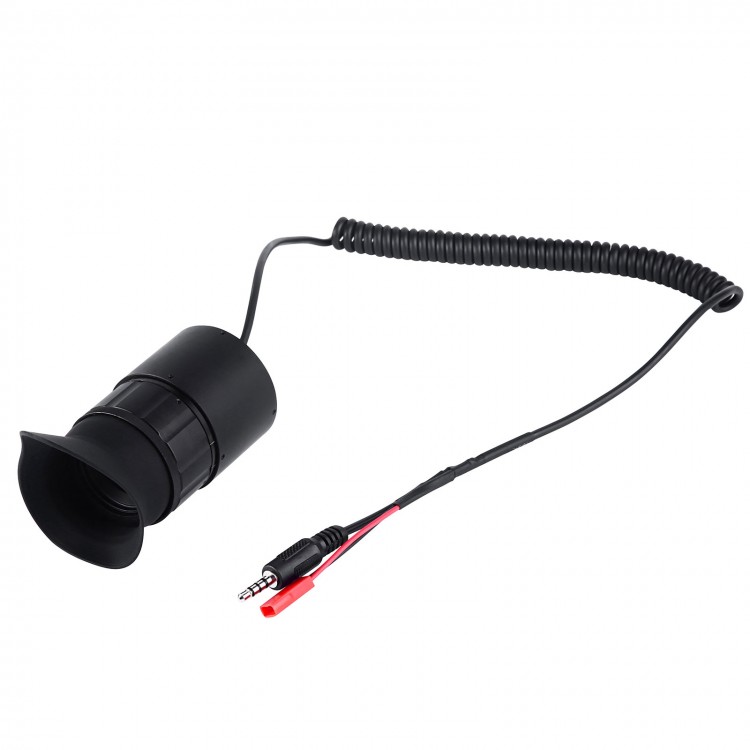

Head Mounted Display Wearable Video Display 1024*768 For FPV RX TX (With Composite AV Interface)
Parameters:
- Display: 0.5 INCU OLED
- Resolution: 1024*768
- Screen Ratio:4:3
- Color Depth:24-bit input
- Viewing Angle: 45° diagonal
- Video Input: Composite AV
- Video Signal:NTSC/PAL/SECAM automatic selection
- Working Voltage:3.7-5V
- Working Current: 5mA
- Power Consumption: 0.1W
- Display Frame Frequency: 120HZ (NTSC), 100HZ(PAL
- An Exit Pupil Distance: 20mm
- An Exit Pupil Diameter: 1-2m
- Eyepiece: 12x optical
- Bright Adjustment: yes
- Diopter Adjustment: yes
Applications:
- 1024 x 768 active matrix color 0.5 inch OLED panel module uses single crystal silicon transistor
- The display module can be equivalent to 2 meters distance virtual 90 - inch screen
- VGA pixels of micro display chip, image as well as the light source system, high-performance optical engine, the drive control circuit
- FPV model aircraft display, easy to plug in both the user to carry and operate
- Monocular display suite, night vision, medical, information, infrared detection, power monitoring electronic suite viewfinder
- Metal case with internal fixing bracket, waterproof, dustproof and shockproof
- Equipped with 21MM eyepieces, custom hoods
- User-friendly straps are comfortable and convenient, while supporting up and down adjustment
Package Included:
- 1 x Set of Head Mounted Video Display
