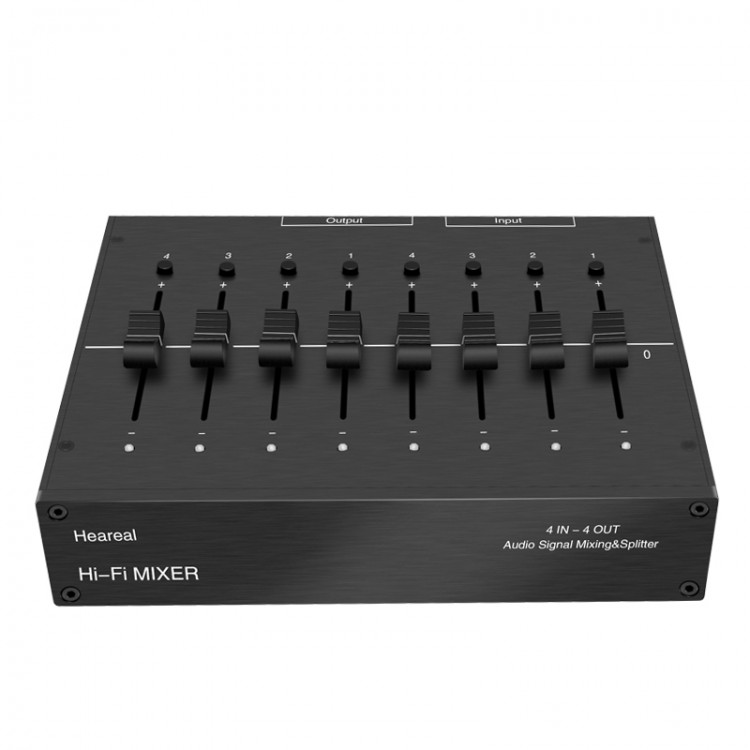

Heareal F2 Audio Signal Distributor Hifi Mixer 4 IN 4 OUT Audio Mixer & Splitter for Preamp Headphone Amp
Features:
- 4-way input and 4-way output
- Each way controlled separately; independent volume adjustment
- 16 audio-specific relays in the positive and negative poles; even if there is interference with the input device with a common ground, it will not affect the signals of other channels at all
- Meet the high requirements of the tuner: the volume potentiometer has a delicate feel and accurate feedback throughout the process
- When volume slides adjusted to the middle position, the signal is restored without gain; after sliding up, the signal can be amplified, working as a preamp
- When used with an adapter plug, it can be used with your headphones as a headphone amp
- All-aluminum CNC shell adopts anodized wire drawing process so that it is not easy to drop paint, fade or rust; improved strength of shielding signal interference
- 4 audio input: CD/player/decoder/vinyl record player; 4 output: preamp/headphone amp/power amp/active speakers
- 4 instrument inputs: keyboard/guitar/bass/drums; 4 outputs: power amp/mixer/effects/ear monitor
- Durable power adapter for Delta
- 4 sound source inputs: mixer, PC, mobile phone and microphone (active mic or microphone amplifier); 4 outputs: recorder, power amp, headphone and effect
Specifications:
- Input impedance: 47KΩ
- Output impedance: 600Ω
- Frequency response range: 20hz-20KHz
- Output power: 850mw/32Ω; 300mw/150Ω
- Amplification factor: 4.1
- SNR: 96.86
- THD: 0.0048
- Dimensions: 205 x 160 x 45mm/8.1 x 6.3 x 1.8" (LxWxH)
- Weight of main unit: 0.9kg/2 lb
Package Included:
- 1 x Mixer Audio Signal Distributor
- 1 x Set of Power Adapter
- 1 x User Manual
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
