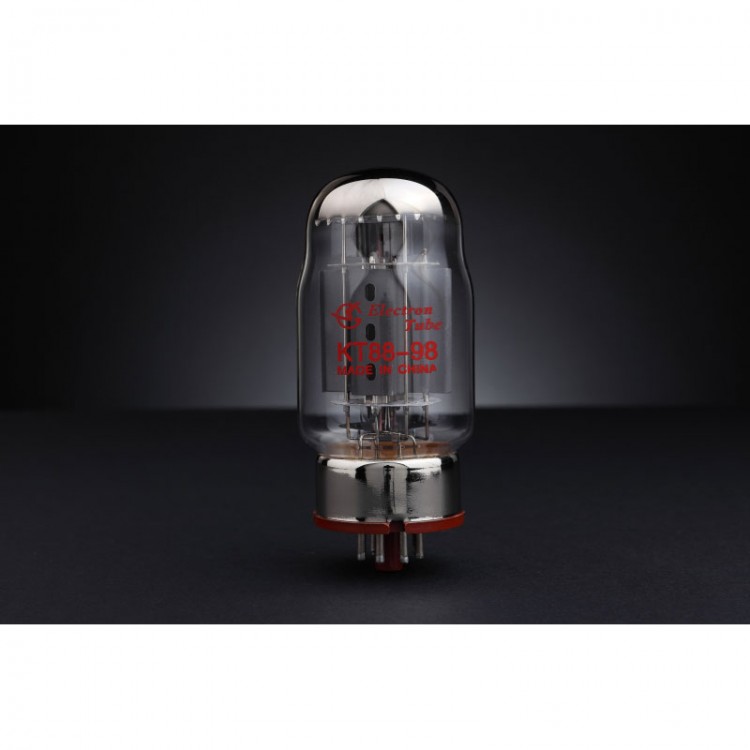

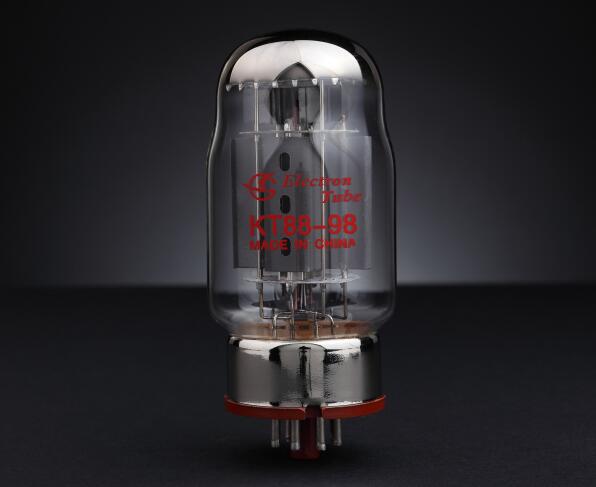

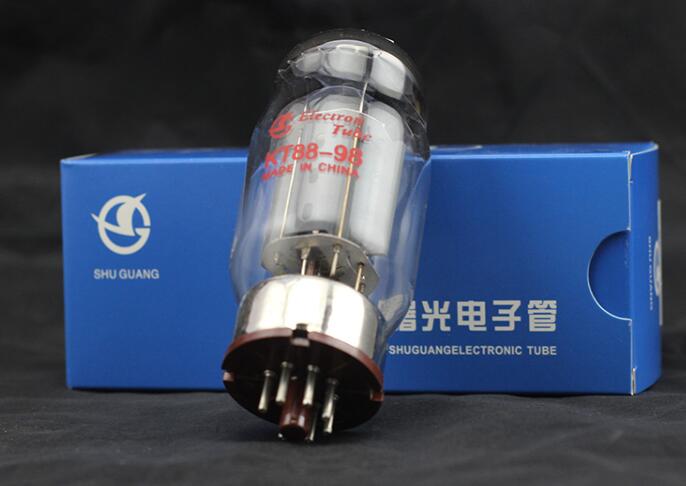

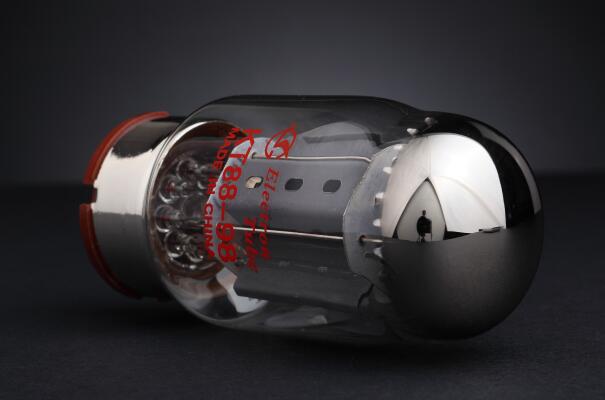

HiFi Electron Tube KT88-98 KT88 EL34 45W for Audio Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.13
  • Price in reward points: 331 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.47 $31.80 $30.81 $29.49 Contact US
Quantity:

HiFi Electron Tube KT88-98 KT88 EL34 45W for Audio Amplifier

Product Description:
- The power dissipation at the anode limit of the beam power KT88 is 42W. In an audio amplifier, the 100W power is obtained when two electron tubes are used as class AB1 Push-Pull Outputs, and the KT88 can also be used in an electronic voltage stabilizing circuit.
- KT88 is similar to CV5220 and 6550 and can be used interchangeably
The KT88 family includes KT88, GEKT88, KT88-98, KT100, CV5220, and 6550A-98, which belong to a hot cathode cathode beam quadrupole tube. Mainly used for audio power for larger models, push-pull output, the series of tube plate low consumption for KT88, GEKT88 for 40W, KT88-98, KT100, CV5220, 6550A-98 in consumption are up to 45W, very suitable for lining line ultra linear method, good pressure resistance, strong power, with strong sense. Broad, the squelch and anti vibration design and technology, is one of the dawn of electronic tube factory's flagship product, the product sales in the 8-10 million, well received by the customer support and favor, it is honored as "prince charming".

Thermal electric filament:
UH--------6.3     V
IH---------1.6      A

Package List:
- 1 x  HiFi Electron Tube KT88-98
