9018IC included in this listing!

 Description:

1. this is latest DAC design from Weiliang after long time testing, its perfect performance worth you to have a try!
2. 4 layers PCB board, perfectly compatible with Amanero usb IIS usb or our XMOS U8 DSD I2S usb

3. It is assembled board with fully tested.

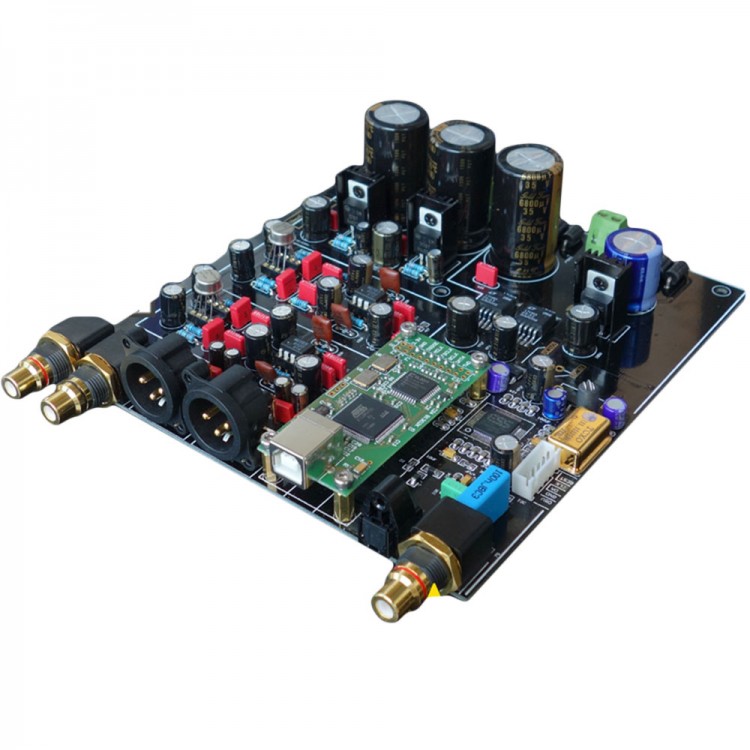

PLease note price not include usb card and opamps , (Picture is upgrade version,if you need it, please contact us to add extra fees), with hifi quality components: ELNA caps,WIMA 104, 3 pcs golden plated RCA jacks !

4. ES9018 IC is very very good, The best DAC chip so far, very good feedbecks from customers! and use TCXO 0.1PPM.

5. Not include the opamp, < it need 2 pcs mono and 2 pcs dual opamps >,
we recommend use AD797+MUSES8820/8920,(if you need please email me,Thanks)

>>Sample rate:
1. Coaxial Supports up to 32bit 192khz
2. Optical supports up to 192khz
3. USB support up to 32bit 384k  ( option,need buy usb card)

>> Output: RCA analog + XLR balanced output

>>Input :
1. Support : Optical and Coaxial input
2. Support : USB Input ; (option: you need to buy our usb module,
Amanero usb IIS usb or XMOS U8 DSD I2S usb)


>>Input voltage : AC 15V --0--15V ; 0-- 9V; 0---9V

Package included:

- 1 x Assembled Board

Detailed components list as following:

Main Components:
- 4 layers PCB                                           1pcs
- Ultra precision linear regulator                   1pcs
- Active crystal 0.1ppm 100M                      1pcs
- Display                                                    1pcs
- LM7219                                                    1pcs
- Gold-plated IC seat                                   4pcs
- ON LM317/.337                                        1pcs
- 5A VIS rectification                                   12pcs
- Gold-plated balance seat                           2pcs
- ASM1117 1.2                                            2pcs
- RX147                                                      1pcs
- Radiators                                                  3pcs
- WIMA                                                       1pcs
- ELNA capacitor                                        1pcs
- KG 6800UF                                             1pcs
- WEL FR4 resistor                                     1pcs
- RCA                                                        3pcs
- ES9018 IC                                                1pcs
