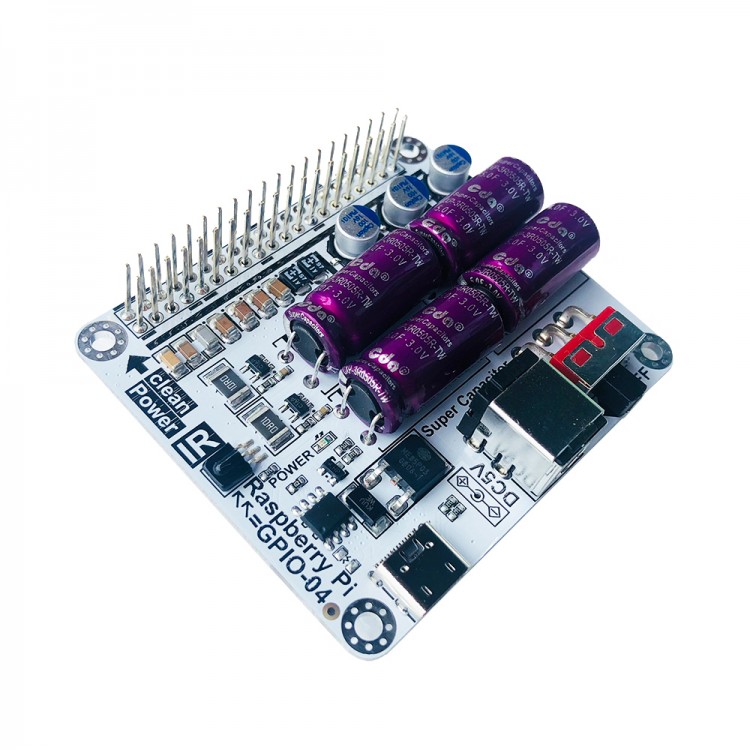

Hifi Power Filter Module Super Capacitor Power Filter for Raspberry Pi Moode to Improve Sound Quality
Advantages:
- Super capacitor power filter for Raspberry Pi
- For moode, volumio, picoreplayer, and runeaudio
- After installation, the sound quality and hearing experience become better, and the power is surging
- The super capacitor board is 2 levels of common mode rejection
- 6 super capacitors
- 6 low internal resistance 47uf tantalum polymer capacitors in parallel
- 3 sets of micro-capacitor filter output to Pi
- With infrared receiver for remote control
- After fully charged, the instantaneous discharge current over 10A
Features:
- Three groups of micro-capacitors filter the spike ripple. 3 groups of micro-capacitor filtering, each group of 2 0.001uF, 0.01uF, 0.1uF for the last high-frequency ripple filter
- 6 groups of 47uF low ESR tantalum polymer capacitors connected in parallel
- 2CH common-mode suppression filter circuits effectively suppress the power ripple from your power adapter
- With IR receiver
- Support type C and DC2.1 input 5V
- Power supply filter capacitor capacity 6F=6000000μF
- Professional power filter board for Raspberry Pi
- After input power supply is filtered by 2 sets of common-mode suppression filter circuits, the secondary power supply is reformed by 6 super capacitors EDLC, and then filtered by 6 low ESR tantalum polymer capacitors, and finally sent to 3 groups of micro-capacitors to complete the end purification
- All GPIO pin headers are led out for easy expansion
Package Included:
- 1 x Power Filter Board
Note:
- Power supply 5V 4A or above is recommended, because the super capacitor board start instant current is relatively high. The CPU power supply response is faster, the natural decoding rate will not be reduced. The sound quality is more pure.
- Super capacitor filtering power supply plugged in the board for Raspberry Pi, type c or DC2.1 (5V) power supply directly to the super capacitor board can be realized.
