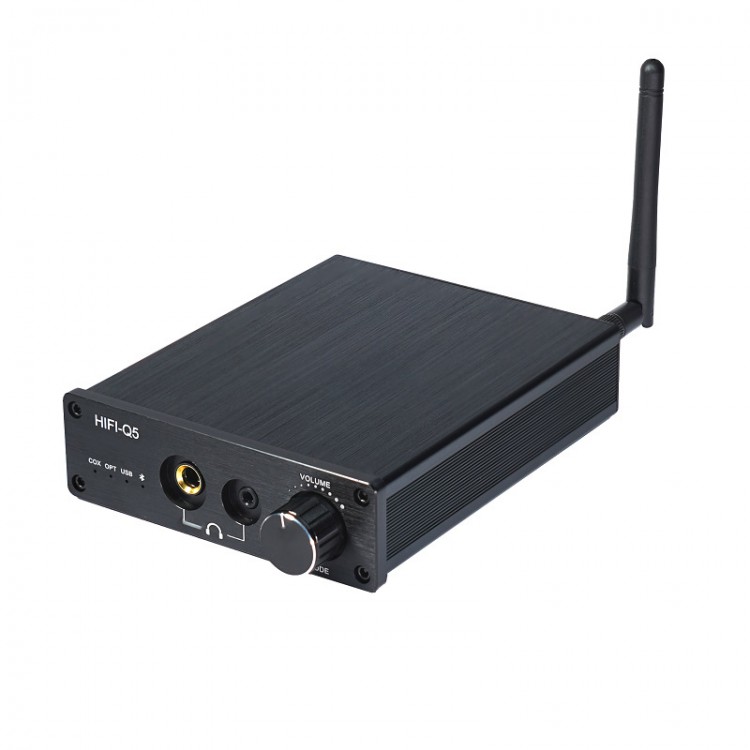

HIFI-Q5 Hifi USB DAC Headphone Amplifier Supports Optical Optical Bluetooth USB Sound Card Input

HIFI-Q5 Hifi USB DAC Headphone Amplifier Supports Optical Optical Bluetooth USB Sound Card Input

Features:
- Hifi audio decoder: high resolution, high sampling rate, cost-effective.
- Powerful decoding ability to build a desktop music scene for you. The DAC adopts the ES9018K2M decoding chip from the United States, and supports DSD256/1bit and PCM 384kHz/32bit. Its resolution is strong, the sound is delicate and round, the extension is very good, and it is shocking! HIFI-Q5 can act as a bridge between computers, mobile phones, power amplifiers, speakers, and headphones, restoring a shocking exclusive concert hall for you!
- Powerful USB sound card chip: The USB sound card adopts Taiwan's SA9227A chip. It has powerful performance and high sampling rate. It can also support DSD256/1bit, and PCM up to 384Khz/32bit! Support system for Windows/Mac/Android, etc., and support laptops/tablets/mobile phones and other devices. It can output DSD source signal, imagine lossless music scene!
- Hifi Bluetooth chip: equipped with American Hifi QCC5125 Bluetooth chip, it supports version 5.1 (compatible with lower versions such as 5.0/4.2). For LDAC/aptX-HD/aptX-Adaptive/aptx-LL/aptx/AAC/SBC and other protocols. For LDAC protocol, its sampling rate can reach 96Khz, allowing you to enjoy the exclusive music scene with wireless, low latency and lossless sound quality!
- Imported headphone amp chip supports 300Ω headphones. It is suitable for mainstream headphones in the market. Using TPA6120A2 chip, in fact, the current feedback circuit, the slew rate is up to 1300V/us, the distortion is only 0.00014% THD+N, the signal-to-noise ratio and dynamic range are up to 120dB, the driving ability is strong, and the output current is up to 700mA, which can fit most of headphones on the markets.
- Dual headphone jacks: In order to be compatible with most headphones in the market, HIFI-Q5 is designed with 3.5mm and 6.35mm headphone jacks. Cooperate with professional headphone amplifier chip TPA6120A2 and op amp NE5532 to ensure high resolution, high thrust and audible sound quality.
- Operational amplifier socket design: The operational amplifier adopts NE5532, which has low distortion, low noise and large thrust. It also adopts an op-amp socket design, which is convenient for music enthusiasts to replace different op-amp chips to obtain a desired sound.
- Digital encoder to adjust volume: digital volume adjustment is adopted, which is uniform and smooth, effectively avoiding the bias and noise problems of analog potentiometers. The one-piece stamped metal knob and the embedded aluminum alloy brushed panel are seamlessly connected to smoothly control the volume. Press the knob at the same time to switch the input channel cyclically, and press and hold the knob to soft power off or power on.
- Premium components: Using German original polypropylene audiophile audio coupling capacitor (for WIMA), it makes the sound even better! Use relays to handle the pop sound when power is turned on and off.
- Professional audio configuration builds audiophile sound quality: QCC5125 + SA9227 + NE5532 + TPA6120A2

Functions:
- Coaxial input: support 192khz/24bit
- Optical input: support 192khz/24bit
- USB sound card input: support 384khz/32bit; support DSD256/1bit
- Bluetooth receiver: support 96khz/16bit; for LDAC/aptX-HD
- Optical output: support 192khz/24bit
- RCA output
- 3.5mm output: support 500mW 300Ω; dynamic range 120dB
- 6.35mm output: support 500mW 300Ω; dynamic range 120dB
- USB sound card chip: support DSD/PCM
- Bluetooth chip: for LDAC/aptx-HD
- Decoder chip: support DSD/PCM
- Headphone amplifier chip: support 500mW 300Ω

Specifications:
- Input interface: coaxial + optical + USB sound card + bluetooth
- Output interface: Optical fiber+ RCA + 3.5mm headphone jack + 6.35mm headphone jack
- Bluetooth protocol: for LDAC/aptX-HD/aptX-Adaptive/aptx-LL/aptx/AAC/SBC, etc.
- Bluetooth sampling rate and bit width: 44.1khz/48khz/96khz (only supports 96Khz for LDAC)
- Bluetooth sampling bit width: 16bit/24bit (maximum)
- Bluetooth version: BT5.1 version (compatible with lower version such as BT5.0/4.2)
- Bluetooth distance: within 15m/49.2ft
- USB sound card support system: for Win11 and below, Android, Apple, etc.
- USB sound card sampling rate and bit width: DSD supports DSD256/1bit; PCM supports 384KHz/32bit
- USB sound card support device: computer, mobile phone, tablet, etc.
- Optical/coaxial sampling rate and bit width: support up to 192KHz/24bit
- DAC sampling rate and bit width: DSD supports up to DSD256/1bit, PCM supports up to 384KHz/32bit
- SNR: +127dB
- THD+N: -120dB
- Op amp power supply: ±9V DC
- Op amp chip: NE5532 (default). Users can replace and upgrade by themselves
- Amp power supply: ±9V DC
- Amp performance: with 120dB signal-to-noise ratio and dynamic range
- Headphone Impedance: 16-300Ω
- Headphone power: 500mW max (32Ω load)
- Power supply: DC12V/1A
- Product Dimensions: 138 x 112 x 34mm/5.4 x 4.4 x 1.3"
- Product weight: 0.35kg/0.8lb

Package Included:
- 1 x DAC Headphone Amp
- 1 x DC 12V/1A Power Adapter
- 1 x Type C Data Cable
- 1 x Bluetooth Antenna
- 1 x OTG USB Adapter
- 1 x User Manual
