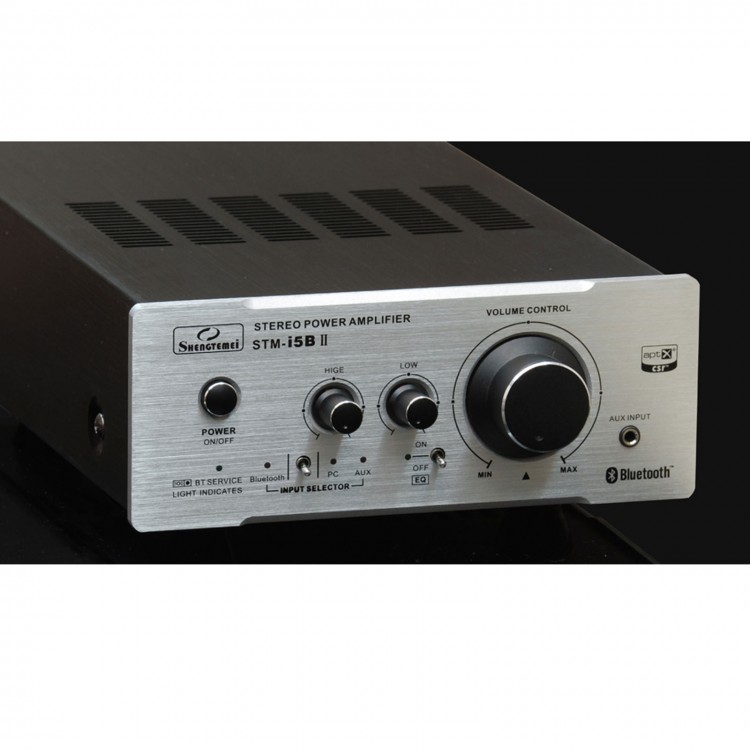

HIFI Stereo Audio Power Amplifier Bluetooth 4.0 Decoding 150W+150W 2.0CH Support APT-X Silver

Availability: In stock, usually dispatched in 1 business day

  • Price:$239.25
  • Price in reward points: 2393 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $234.47 $229.68 $222.50 $212.93 Contact US
Quantity:

HIFI Stereo Audio Power Amplifier Bluetooth 4.0 Decoding 150W+150W 2.0CH Support APT-X Silver

Features:

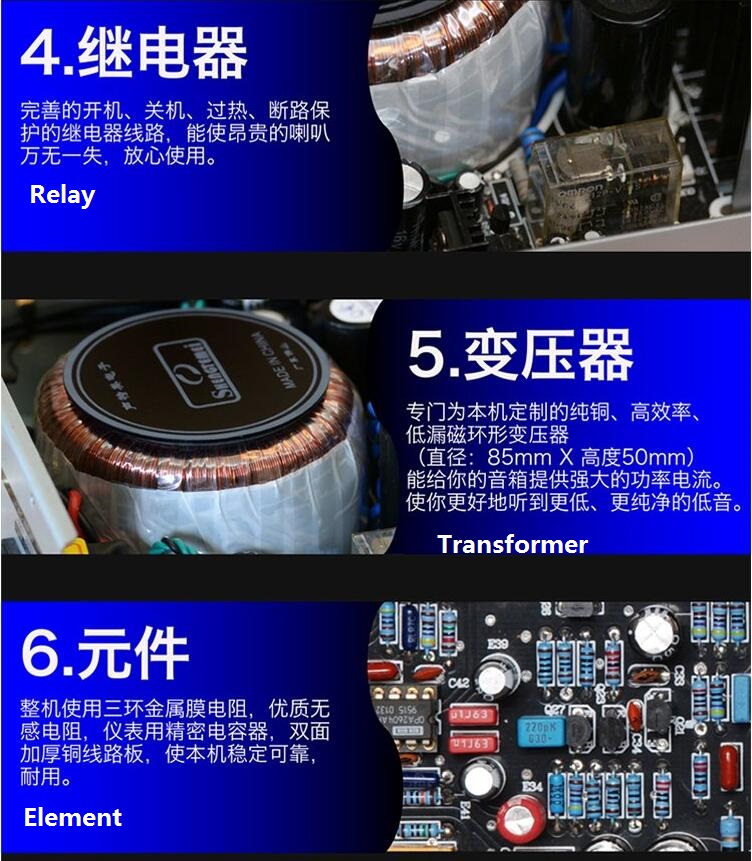

- Low magnetic flux leakage,high performance transformer
- Power otuput up to 150Wx2
- Independent transformer for power amplification part and pre-amp circuit part
- Fully discrete parts circuit structure for current amplication part
- Dynamic distortion servo track correction circuit
- With fan cooling system
- With 2*EQ(+6db/-6db)adjustment,bass/treble independenly to adjust level
- With EQ by-pass switch
- Bluetooth 4.0,suppot SPT-X playing
- Wireless bluetooth receiving system

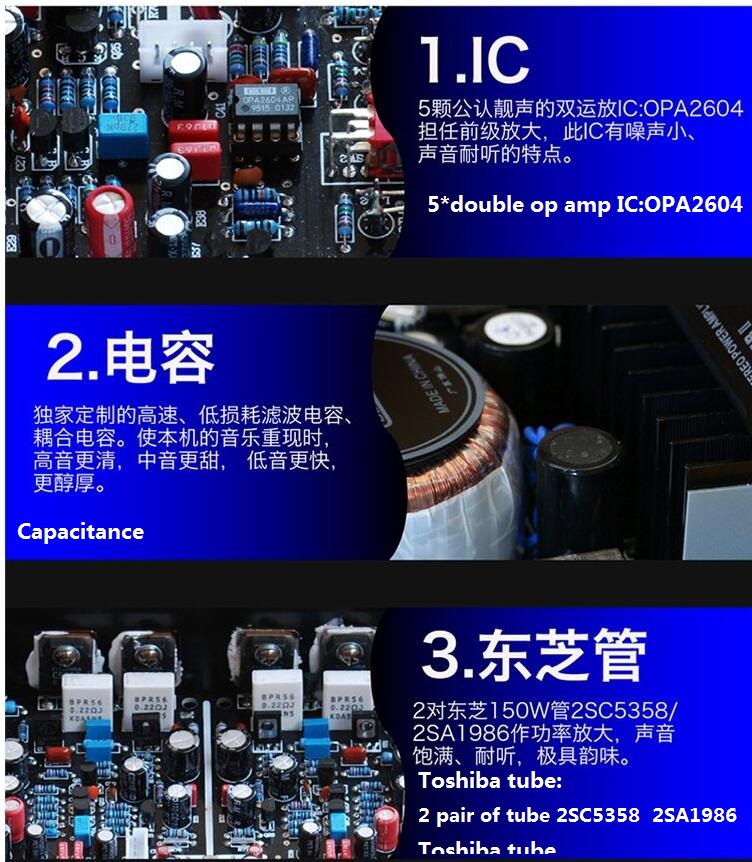

- Pre-AMP adopt IC:OPA2604/NE5532
- Power amplifier tube: A1986/C3358;A1941/C5198
- With anti impact circuit for booting,over-load,short-circuit protection circuit

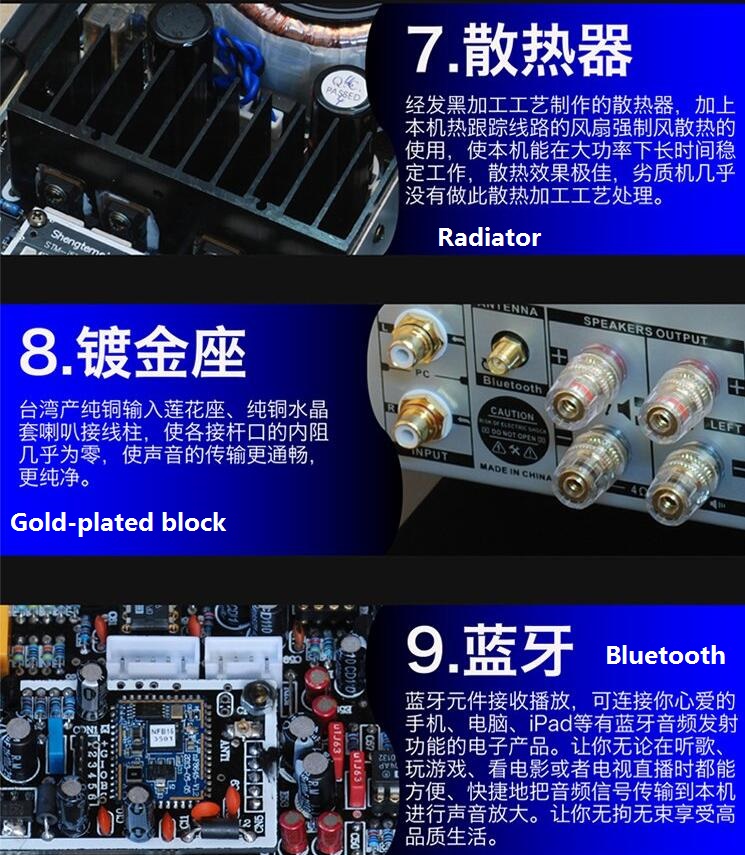

- Gold-plated wiring bloack
- RF4 double sided circuit board
- High precision HIFI element
- Sleep mode for idle line

Parameter:
- Size: About 190*315*75mm width*depth*height
- N.W: About 2.5kg
- G.W: About 3.5kg
- Maximum output power: 150Wx2
- Channel: 2
- Dynamic power/channel: 150W
- Frequency response: 20Hz-100KHz  -+3db
- Harmonic distortion:<0.05% (1KHz)
- SNR: >=90db
- Input port: 2
- Output port: 2
- Channel separation: >=90db
- Input impedance: 47Ohm
- Input sensitivity: 470mV
- Equalizer adjustment range:treble:-+6db(10KHz);bass -+6db(100Hz)
- Bluetooth 4.0
- Power: ~220V 50/60Hz

Black version VS Silver version:

Version / item Black version Siver version
OP AMP 5532*5pcs OPA2604*5pcs
OP AMP socket NO Yes
Knob material Plastic Aluminum alloy

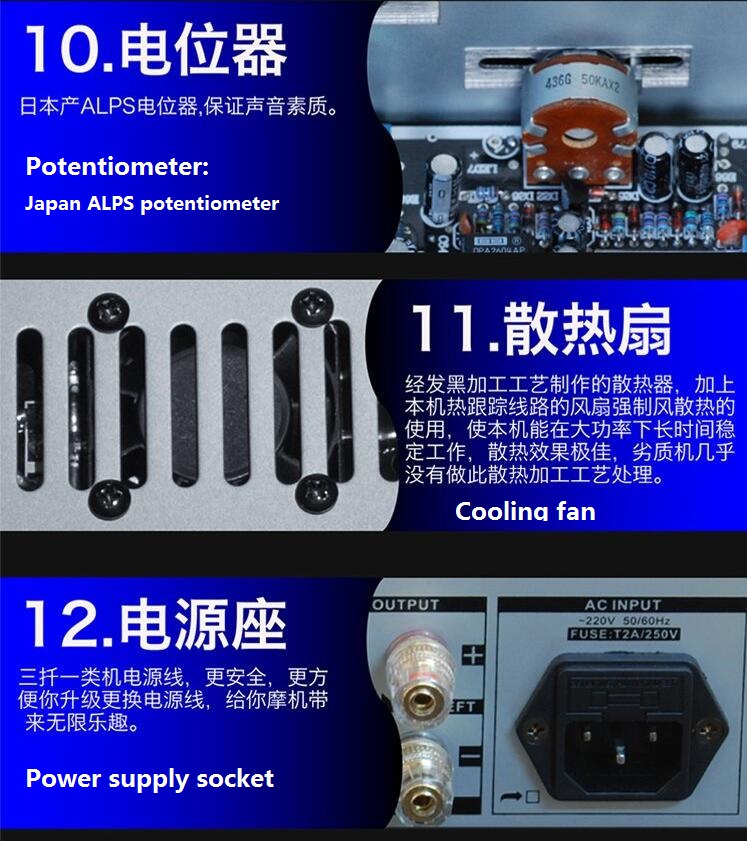

Master volume potentiometer I6 ALPS I6
Rwplaying OP AMP Hard Easy
Power tube C5198/A1941 C5358/A1986


Package List:
- 1 x DAC Decoder/ Headphone Amplifier
- 1 x Power cable
- 1 x Bluetooth antenna
- 1 x Manual
