High Quality Shortwave Antenna Kit for MOXON Epoxy Baseboard and Stainless Steel Fixed Structure DIY Kit
Features:

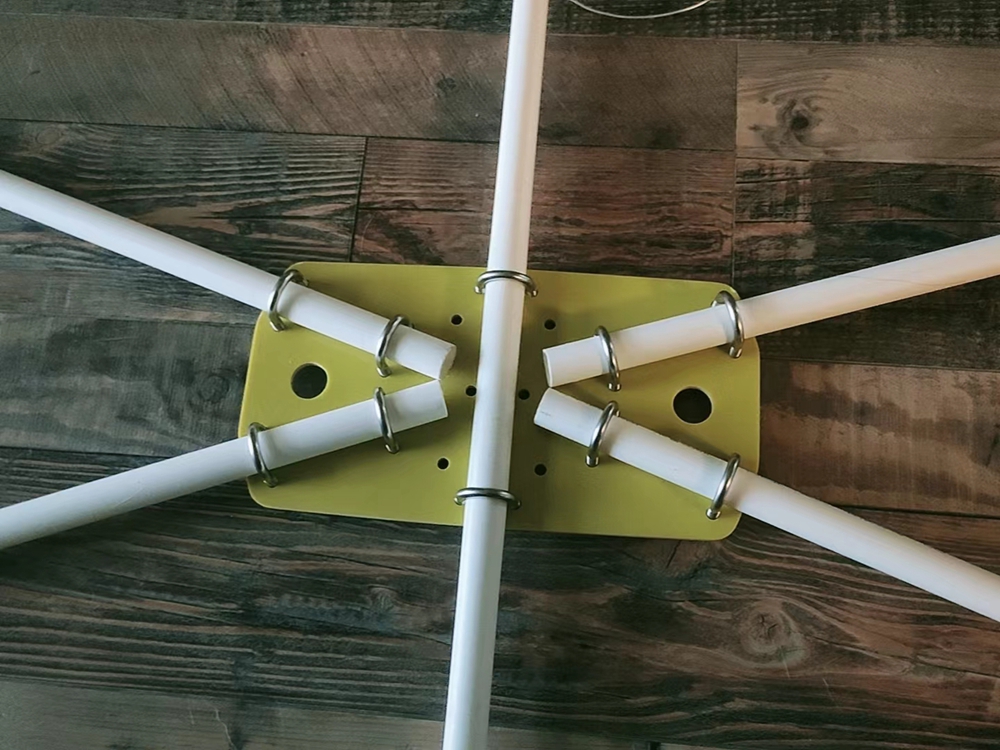

- It is suitable for using a support rod or tube with a diameter of 20mm and a wire oscillator to conveniently construct one's own antenna for MOXON. (Insulating pipes and oscillators are not included.)

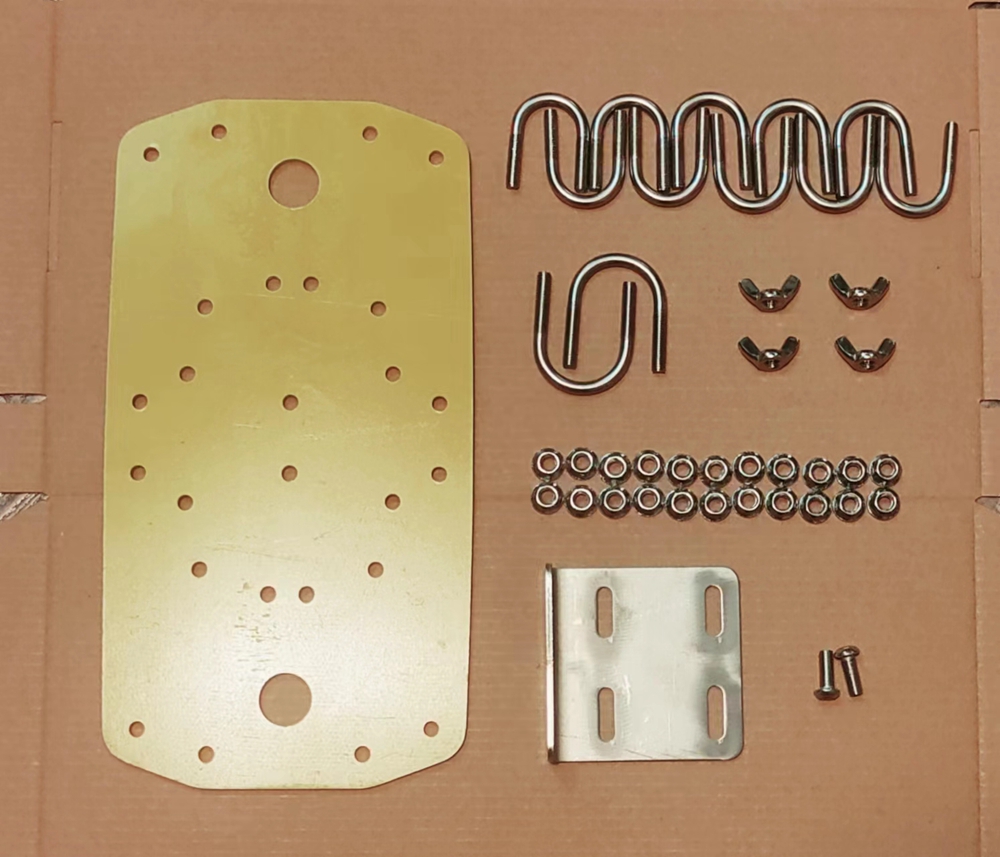

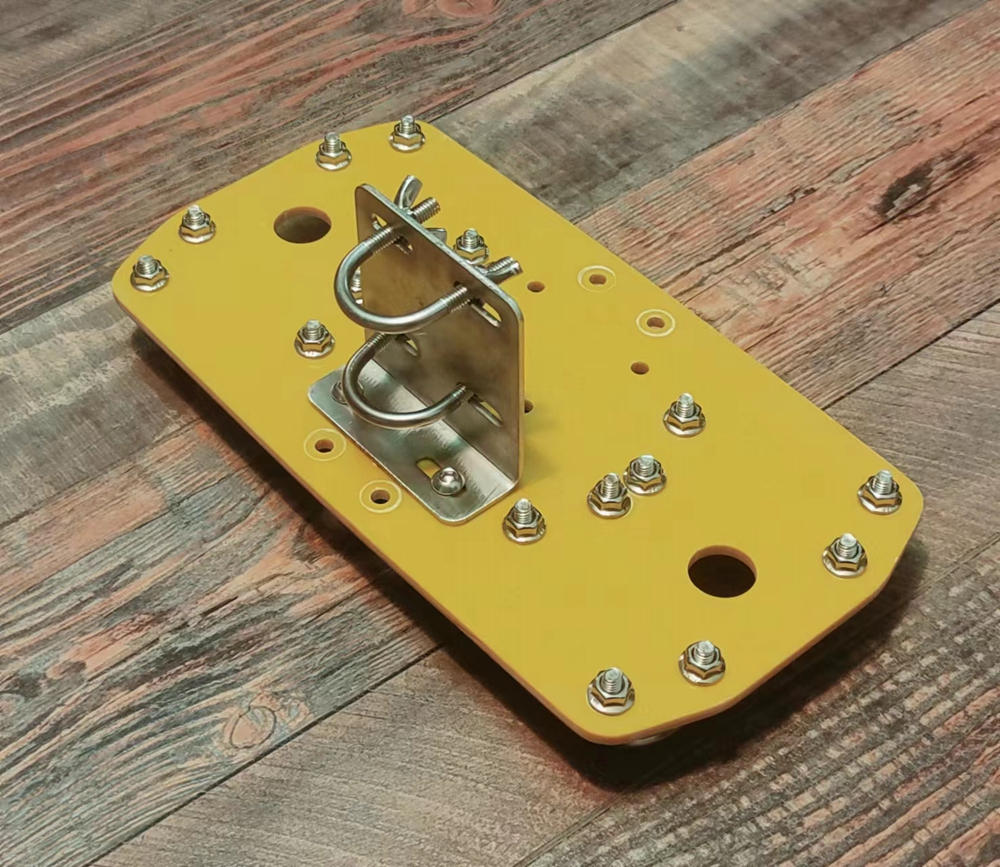

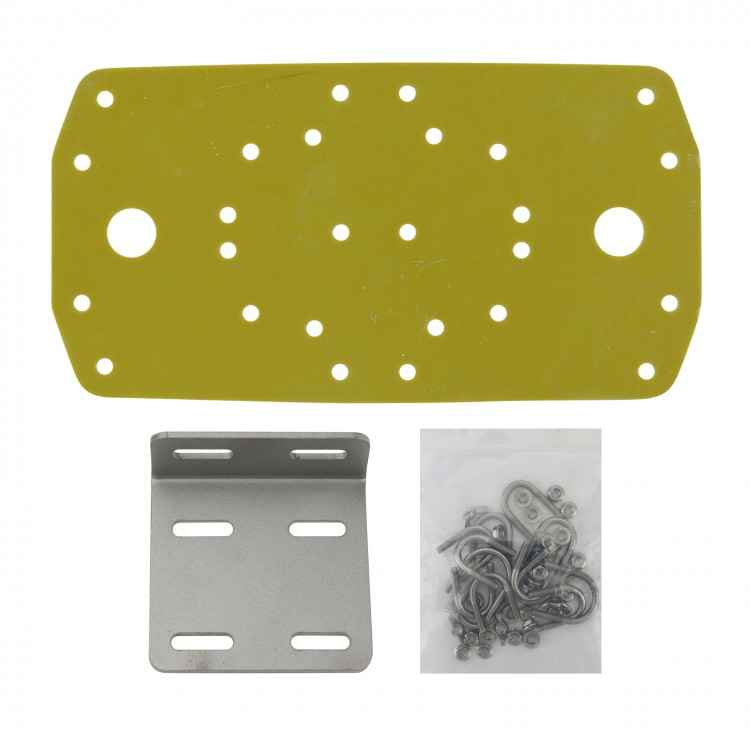

- The kit includes a 5mm epoxy baseboard with a size of approximately 27x14cm. The CNC machining hole position is very accurate, with a 2.5mm thick stainless steel fixing mechanism, 12 sets of U-shaped cards and matching screws and nuts, all made of stainless steel.

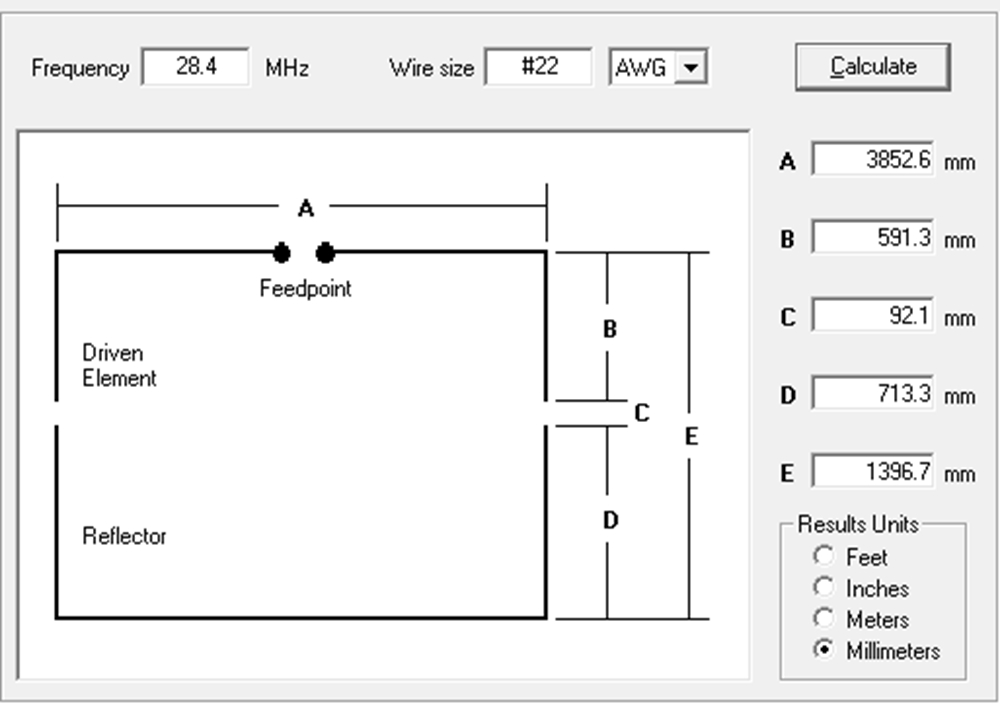

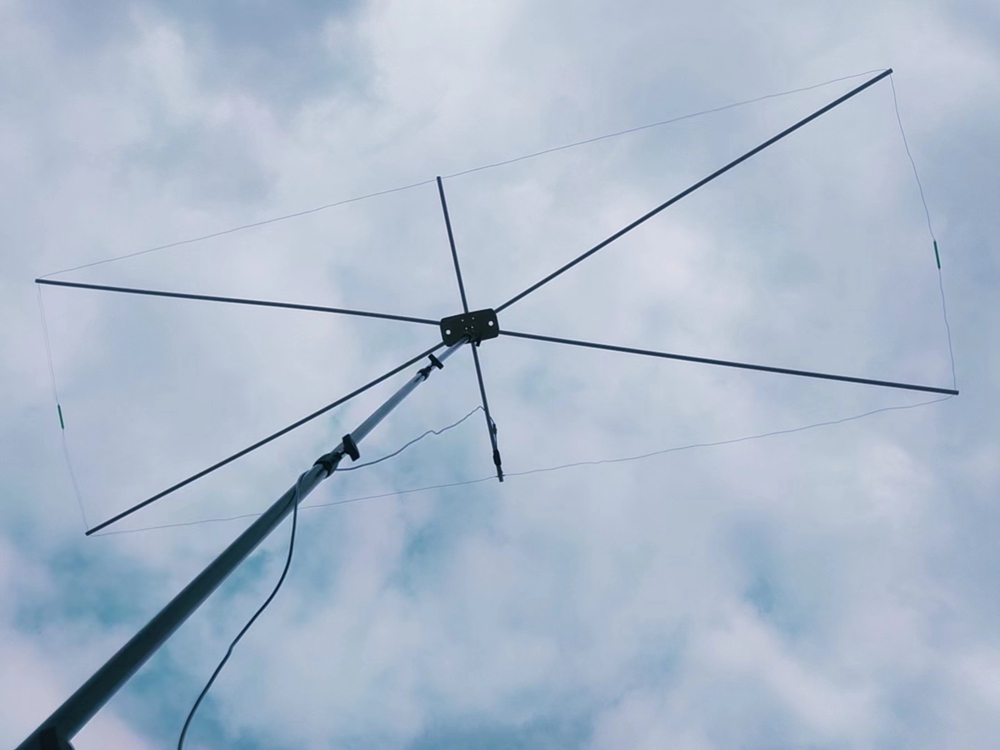

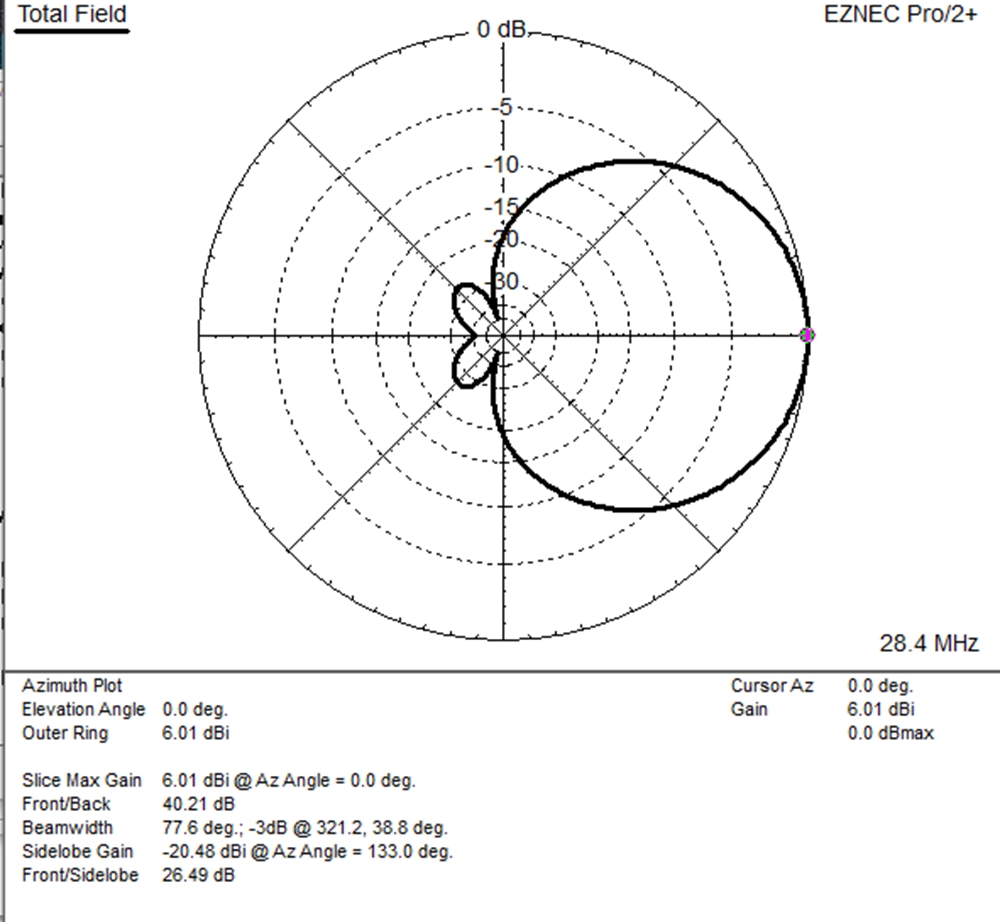

- For MOXON antenna can be seen as a deformed 2-unit Yagi, with a feed point impedance of 50 ohms, can be fed directly or add 1: 1 balun (which is better); the maximum gain is about 6dBi, but the front to back ratio (F/B) is amazing and can reach more than 25dB, the bandwidth is excellent, and the radiation angle is more than 70 degrees, which is very suitable for radio racing. It is also a convenient wild frame antenna.
- If it is used in the high wave segment (12m, 10m, 6m), and the pursuit of lightweight and cheap can use 20mm PVC pipe for construction, such as soft PVC pipe need to consider the sagging problem and compensation in advance, if it is used for 15 meters or lower band, you need to carefully select high hardness insulation material as support pipe.
Package Included:
- 1 x Set of Shortwave Antenna Kit
