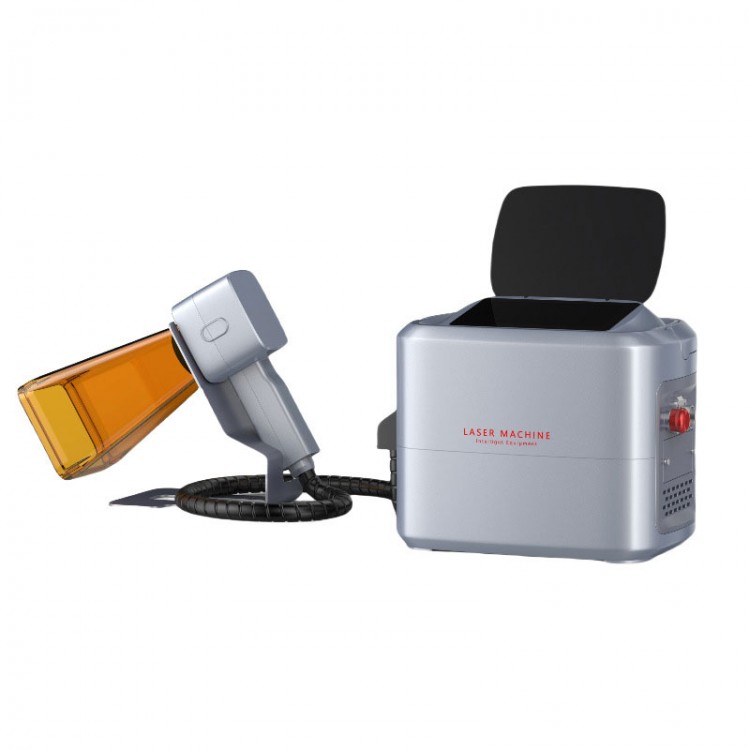

HLC-30W Plug-in Type Laser Marking Machine Portable Handheld Laser Engraving Machine for Metals

HLC-30W Plug-in Type Laser Marking Machine Portable Handheld Laser Engraving Machine for Metals

Description:
The laser marking machine can mark all metals, painted wood, and opaque plastics. It is also suitable for certain types of leather and painted glass, but it is not compatible with other types of unpainted glass or specific materials such as rattan. It is capable of engraving metal up to a depth of 0.3mm.

Features:
Handheld Laser Marking Machine
* Thanks to advanced laser technology and a lightweight integrated design, it can be operated flexibly under various working conditions.
* Suitable for large objects and outdoor use.

Laser Protective Cover
* Safety protection design prevents accidental laser activation during use, reducing laser beam damage to the eyes.

Touch Screen Protective Cover
* Enhanced safety protection to prevent accidental drops, collisions, and costly screen replacements worth several thousand yuan.

Main Unit Handle
* Compact and lightweight body makes it easy to carry. Ready to use anytime.

7-inch Touch Screen
* The HD LCD screen is equipped with a stylus pen. It is simple and efficient to operate.

Convenient Handheld Design with One-key Trigger
* It is flexible to use, meeting daily customer needs.

Hidden Field Lens
* The field lens features a hidden design that reduces accidental contact during use and transportation, protecting the lens and extending its service life.
* The handle adopts an ergonomic design with a rubber coating and anti-slip texture, increasing friction while providing a better user experience.

High Positioning Accuracy
* Compared to traditional bulky marking machines, the handheld laser marker is smaller, lighter, and more flexible. It easily achieves fast focusing and high-precision quality requirements.

Specifications of HLC-30W:
Whole Machine Features:
* Whole Machine Material: ABS Plastic
* Laser: Fiber Laser Generator with a service life of over 100,000 hours
* Laser Wavelength: 1064nm
* Actual Output Power: ≥30W
* Marking Speed: ≤12000mm/s
* Main Controller: 7-inch Touch Controller
* Cooling System: Normal Temperature Air Cooling

Coding Parameters:
* Focusing Lens: Focal Length 183.5mm
* Minimum Line Width: 0.0012mm
* Repeat Positioning Accuracy: 0.003mm
* Marking Area: 110mm × 110mm (or customizable)
* Positioning Method: Red Light Indicator
* Number of Print Character Lines: Any line within the marking area

Software Introduction:
* Multiple Languages: 21 languages including English, French, Spanish, German, Chinese, Russian, Arabic, etc.
* Management Permissions: Multi-user management permissions
* Operating System: 4701 System
* Reserved Signals: Start Printing, Printing Status, Printing Completed, and Fault Alarm
* Data Protection: Equipped with power-off data protection function

Supported Types:
* Fonts: Standard font library including Simplified Chinese, English, numbers, Traditional Chinese, etc.
* File Formats: BMP, DXF, HPGL, JPEG, and PLT
* Barcodes: CODE39, CODE128, CODE126, QR Code, and Zhenzhi Code (optional)

Overall Machine Specifications:
* Power Supply: External Power 220V/50Hz
* Power Consumption: 200W
* Net Weight: 30W Plug-in Type – Main Unit: 5.5kg and Marking Head: 1.1kg
* Dimensions: Main Unit: 300 × 190 × 260mm. Marking Head: 260 × 120 × 290mm

Environmental Requirements:
* Ambient Temperature: 0°C to 45°C
* Humidity: ≤95%
* Non-condensing
* Vibration-free

Packing List:
* 1 x Set of Laser Engraver Machine

Packaging Details:
* Weight: 9.5kg

Note:
* 11600mAh battery is optional. You can purchase the battery-included versions directly from our store.
