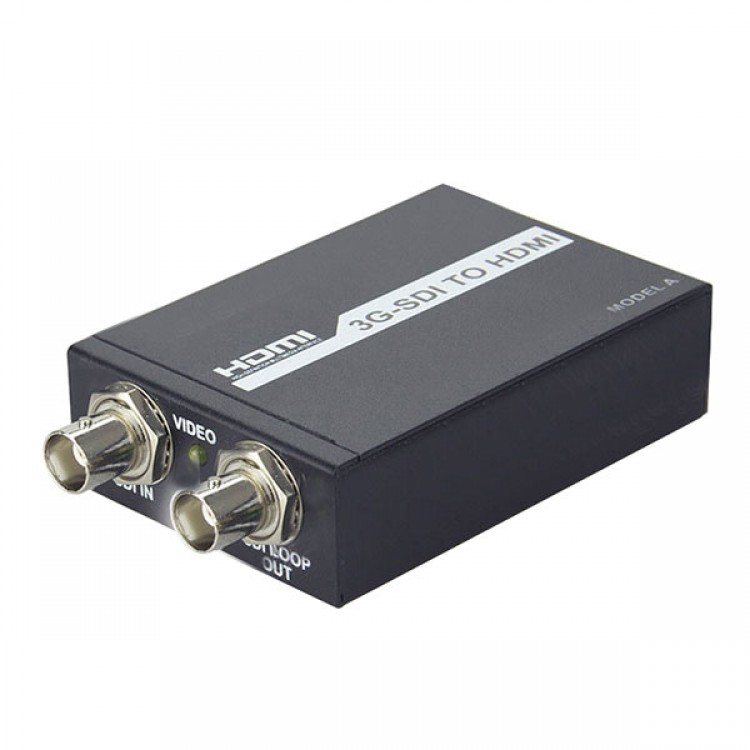

HLSH000A 3G/HD SDI to HDMI Converter Max.8CH Black
Description:
- HLSH000A 3G/HD SDI to HDMI Converter Max.8CH Black
Introduction:
- SDI to HDMI converters, which can convert 3G/HD SDI signal to HDMI signal, support maximum 8 channel - HDMI embedded audio output. This converter has one 3G/HD SDI input port, one 3G/HD SDI loop output. It is suited for SDI camera or other SDI video sources to connect HDMI video recorders or monitors.
Main features:
- SMPTE425M-AB input
- Full HDMI 1.3a formats, support 24bit, 30bit, 36bit color, 2-8 channels embedded audios
- SDI PLL clock, support long distance 3G SDI cable
- Power and video indicators
- Industrial metal case, easy to install
Parameters:
|
Interface |
1 SDI input port (female type-BNC); 1 SDI loop output port (female type-BNC); 1 HDMI input port (female Type A); 5V DC in (Ã3)ï¼ |
|
Power consumption |
<1.3W |
|
Dimension |
(L x W x H): 82 x 55 x 30mm (not include SDI connectors) |
|
Net weight |
0.175kg per unit |
|
Input video formats |
3G, HD, and SD-SDI (auto-selected), |
|
Output video formats |
HDMI v1.3a, 30/36 bits per pixel, RGB or YUV, |
|
Input audio formats |
SDI embedded audio, |
|
Output audio formats |
HDMI embedded audio, |
|
Indicators |
Power-Green, Video link-Yellow |
|
Temperature range |
0~40°C (operation), -20~60°C(stock) |
Package Included:
- 1 unit 3G-SDI to HDMI converter
- 2 type-L metal brackets, used for install on walls
- 1 unit DC 5V 1A adapter
- 103*137*45mm carton packing
