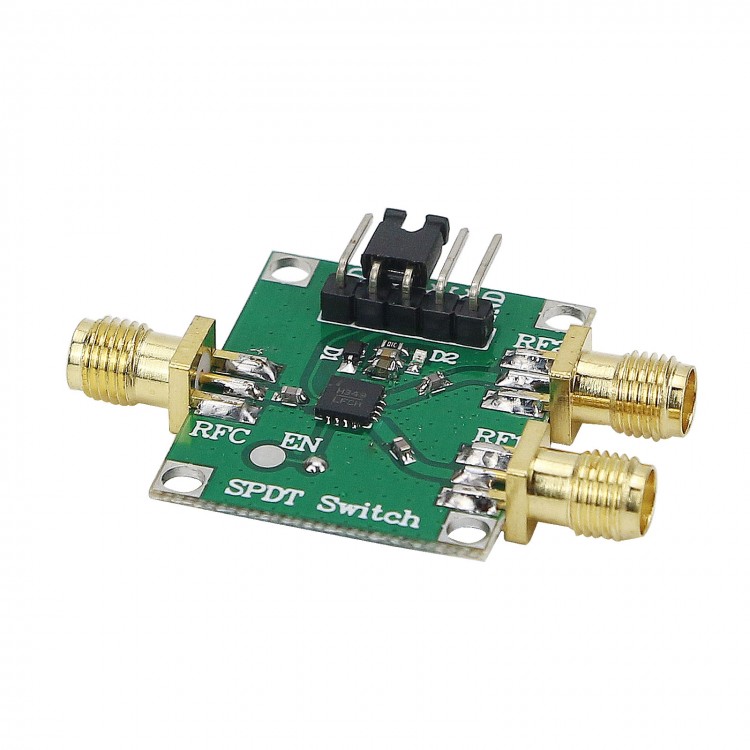

HMC349 RF Switch Module Single Pole Double Throw Module Board with Bandwidth High Separation

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.50
  • Price in reward points: 125 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.25 $12.00 $11.63 $11.13 Contact US
Quantity:
Buy it now Add cart

You might like

HMC849 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

HMC849 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

$14.34

(0)
HMC8038 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

HMC8038 RF Switch Module 6GHz Single Pole Double Throw Module Board with Bandwidth High Separation

$23.68

(0)
HMC284 RF Switch Module DC-3.5GHz Bandwidth Single-pole Double-throw RF Switch 5V Power Supply

HMC284 RF Switch Module DC-3.5GHz Bandwidth Single-pole Double-throw RF Switch 5V Power Supply

$9.39

(0)
HMC190 RF Switch Module 10M-3GHz Bandwidth Single Pole Double Throw RF Switch Module Board

HMC190 RF Switch Module 10M-3GHz Bandwidth Single Pole Double Throw RF Switch Module Board

$9.71

(0)
HMC544 RF Switch Module Single Pole Double Throw 10MHz-4GHz Bandwidth Band Switching SMA Interface

HMC544 RF Switch Module Single Pole Double Throw 10MHz-4GHz Bandwidth Band Switching SMA Interface

$11.63

(0)
1MHz-6GHz HackRF One w/ Shell Crystal Oscillator + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

1MHz-6GHz HackRF One w/ Shell Crystal Oscillator + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

$173.36

(0)
1MHz-6GHz HackRF One SDR Platform w/ Shell + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

1MHz-6GHz HackRF One SDR Platform w/ Shell + PortaPack H2 3.2" Touch Screen 0.5PPM TCXO Clock

$169.41

(0)
HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

$26.79

(0)

HMC349 RF Switch Module Single Pole Double Throw Module Board with Bandwidth High Separation

Features:
Nonreflective, 50Ω design
High isolation: 62 dB to 2 GHz
Low insertion loss: 1.0 dB to 2 GHz
High input linearity:1 dB power compression (P1dB): 34 dBm (typical); third-order intercept(IP3): 53 dbm (typical)
High power handling: 33.5 dBm through path, Voo=5V; 26.5 dBm terminated path
Single, positive supply: 3 V to 5V
Module size: 2.5 * 3cm (without protruding SMA part)
Cmos-/TTL-compatible control
All off state control
16-lead, 4mm x 4mm LFCSP
Pin-compatible with the HMC8038

Applications:
Wireless infrastructure
Mobile radios
Test equipment

Description:
The HMC349ALP4CE is a gallium arsenide(GaAs), single-polE, double throw (SPDT) switch, specified from 100 MHz to 4 GHz.The HMC349ALP4CE is well suited for wireless infrastructure applications by yielding high isolation of 62 dB, low insertion loss of 1.0 dB, high input IP3 of 53 dBm, and high input P1dB of 34 dBm.
The HMC349ALP4CE operates with a single, positive supply voltage from 3 V to 5 V and provides a CMOS-/TTL-compatibl control interface.
The HMC349ALP4CE comes in a 16-lead. 4mm x 4 mm RoHS compliant, lead frame chip scale package(LFCSP).

Package Included:
1 Set Module Board
