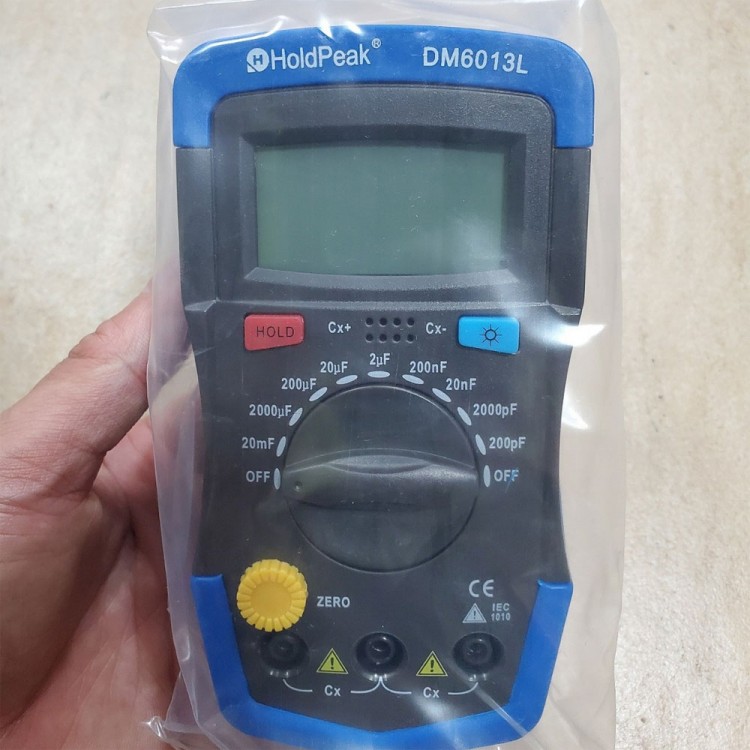

HoldPeak DM6013L 3 ½ Digit 1999 Counts Capacitance Meter 0.1pF to 20000uF Capacitance Tester Capacitor Tester
Description:
The DM6013L Capacitance Meter is a newly developed, compact handheld instrument featuring an LCD display. It is designed for measuring capacitance across nine ranges, covering a wide span from 0.1 pF to 20,000 µF. This meter is suitable for digital analysis, capacitor selection, unknown capacitance measurement, capacitor matching, and cable capacitance testing.
The device includes a data hold function and LCD backlight for improved usability in low-light environments. It is energy-efficient and designed with low power consumption.
With its compact design, protective sleeve, user-friendly interface, and portable form factor, the DM6013L is an ideal tool for a wide range of electrical measurement applications.
Features:
* LCD Display: High-precision digital readout with clear unit symbols.
* Rotary Switch: Durable and precise dial for accurate range selection.
* Input Terminals: Well-crafted test lead sockets ensure smooth and secure insertion.
* CE Certification: Certified to CE standards for safe and reliable use.
* Protective Sleeve: The shockproof and non-slip sleeve offers a comfortable grip and enhanced durability.
Specifications:
1. Capacitance Measurement Ranges & Accuracy:
Range Accuracy
200 pF ±(0.5% of reading + 20)
2000 pF ±(0.5% of reading + 20)
20 nF ±(0.5% of reading + 20)
200 nF ±(0.5% of reading + 20)
2 µF ±(0.5% of reading + 20)
20 µF ±(0.5% of reading + 20)
200 µF ±(0.5% of reading + 20)
2000 µF ±(2.0% of reading + 20)
20 mF ±(4.0% of reading + 20)
2. Functions:
* Data Hold: Supported
* Backlight: Supported
* Maximum Display: 1999 counts
* Continuity Buzzer: Supported
* Display Size: 60 × 54 mm
* Voltage Input Impedance: 10 MΩ
3. Other Parameters:
* Body Weight: 200 g
* Body Dimensions: 143 × 75 × 32 mm (including protective sleeve)
Packing List:
* 1 x Main unit
* 1 x Pair of test leads
* 1 x User manual
Packaging Details:
* Weight: 0.26kg
Note:
* Battery is not included. A 9V (6F22) battery is required.
