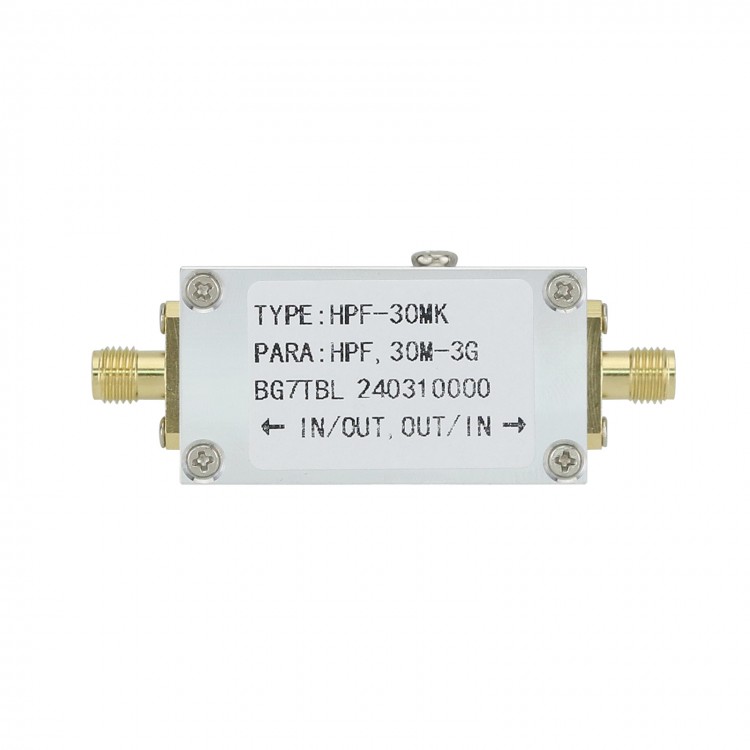

HPF-30M (HPF-30MK) 30M-3G High Pass Filter HPF with SMA Female Connectors Maximum Power 20DBM
Specifications:
- Frequency range: 30M-3G
- Insertion loss: 0.5DB for 30M-500M; 1DB for 500M-2G; and 3DB for 2-3G
- Maximum power: 20DBM
- Input/Output impedance: 50Ω
- Interface: SMA female connector; nickel or gold plated
- Size: 62 x 25 x 12mm/2.4 x 1 x 0.5" (LxWxH)
- Net weight: 30G/0.07LB
- Accessory: None
Package Included:
- 1 x High Pass Filter
