| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $19.19 | $18.80 | $18.21 | $17.43 | Contact US |

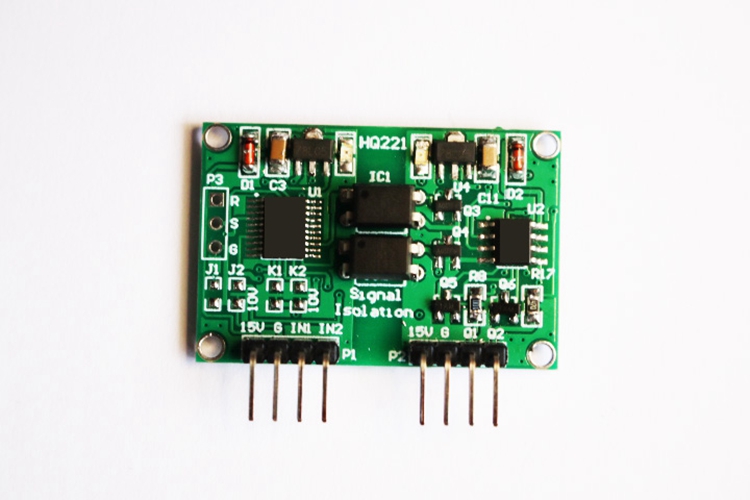

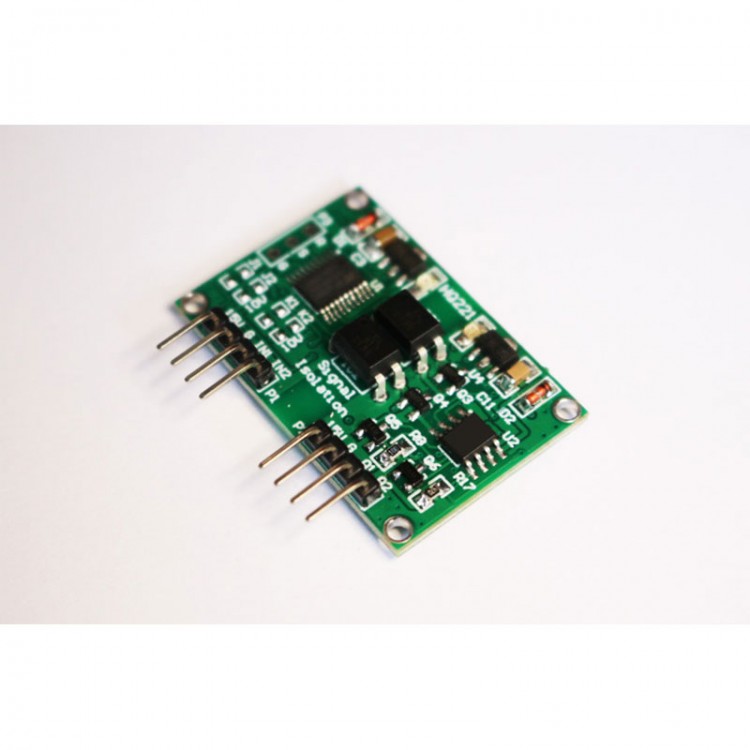

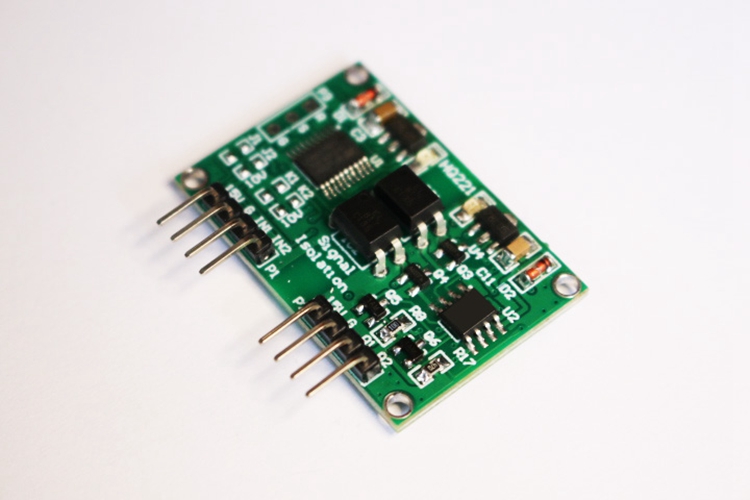

HQ221 Dual Channel Linear Conversion Signal Isolation Module for Voltage Signal Isolation Radio Accessory
Specification:
- Working voltage: 9V ~ 17V
- Input voltage: 0.00V ~ 5.00V or (0.00V ~ 10.00V)
- Output voltage: 0.00V ~ 5.00V or (0.00V ~ 10.00V)
- Controlling method: signal isolation function
- Size: L x W x H = 38 x 25 x 10mm
- Drive method: no need to drive
- Application: voltage signal isolation
P1 Interface:
- 12V: positive power supply 1 (9V ~ 17V)
- GA: grounding interface
- IN1: signal input 1 (J1: open; 0.00V ~ 5.00V) or (J1: short circuit; 0.00V ~ 10.00V)
- IN2: signal input 2 (J2: open; 0.00V ~ 5.00V) or (J2: short circuit; 0.00V ~ 10.00V)
P2 Interface:
- 12V: positive power supply 2 (9V ~ 17V)
- GB: grounding interface
- IN1: signal output 1 (K1: open; 0.00V ~ 5.00V) or (K1: short circuit; 0.00V ~ 10.00V)
- IN2: signal output 2 (K2: open; 0.00V ~ 5.00V) or (K2: short circuit; 0.00V ~ 10.00V)
Jumper:
- J1: signal input1 jumper (J1: open; 0.00V ~ 5.00V) or (J1: short circuit; 0.00V ~ 10.00V)
- J2: signal input2 jumper (J2: open; 0.00V ~ 5.00V) or (J2: short circuit; 0.00V ~ 10.00V)
- K1: signal output1 jumper (K1: open; 0.00V ~ 5.00V) or (K1: short circuit; 0.00V ~ 10.00V)
- K2: signal output2 jumper (K2: open; 0.00V ~ 5.00V) or (K2: short circuit; 0.00V ~ 10.00V)
Package Included:
- 1 x Signal Isolation Module
