HQL900 1KM 20dBm 100mW 902MHz-928MHz Video Data Transmitter Video Data Transmission Module (2PCS)

HQL900 1KM 20dBm 100mW 902MHz-928MHz Video Data Transmitter Video Data Transmission Module (2PCS)

Features:
IoT Long-Distance Wireless Transmission
* The distance from Point A to Point B is 500 meters, and there are obstacles blocking the line of sight. Non-line-of-sight transmission can easily achieve data communication!

High Speed Rate
* Up to 16Mbps transmission rate, supports maximum 4 channels of 1080P video

Long-Distance Transmission up to 800 Meters with 360° Full Coverage
* The distance from Point A to Point B is 350 meters, and there are obstacles blocking the line of sight. Non-line-of-sight transmission can easily achieve data communication.

Specifications:
1. Wireless Performance
* Communication Protocol: IEEE 802.11ah
* Frequency Range: 902MHz-928MHz
* Communication Bandwidth: 8Mbps
* Data Rate: Maximum 16Mbps
* Receiver Sensitivity: 1M PPDU MCS=10–105dBm; 8M PPDU MCS=0–95dBm; 8M PPDU MCS=7–81dBm
* Supported Network Nodes: Up to 8 access points
* Transmit Power: 20dBm (100mW)
* Modulation: BPSK, QPSK, QAM16, or QAM64
* Transmission Distance: Line-of-sight up to 1km, non-line-of-sight 500m
* Security Standard: WPA2-PSK
* Encryption: AES

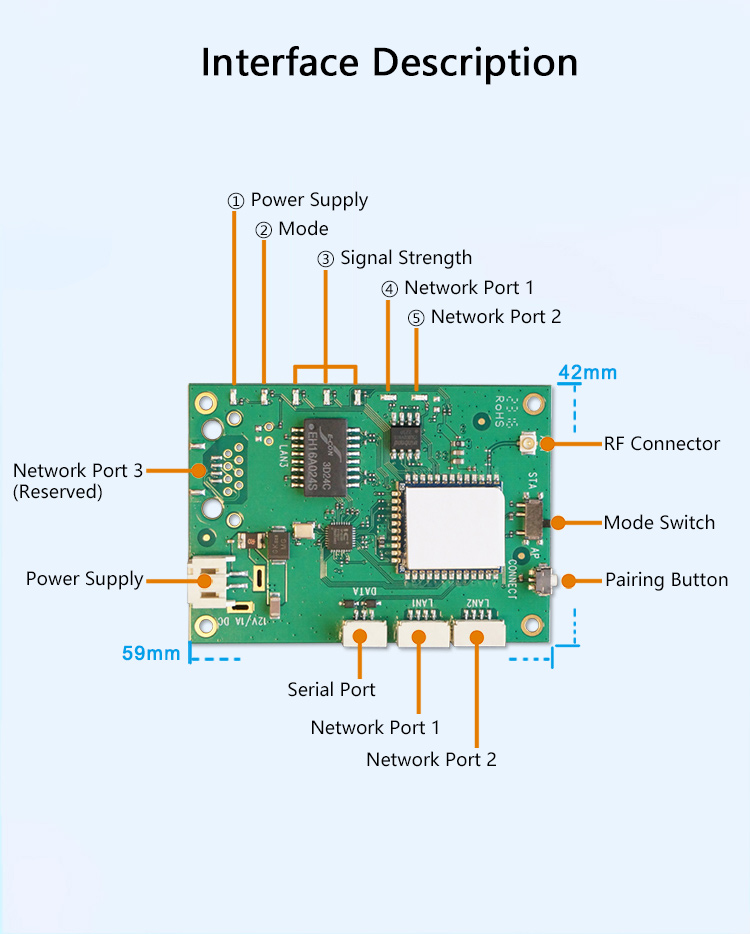

2. Hardware
* Network Ports: 10/100Mbps ×2, reserved ×1
* Serial Port: UART (TTL) ×1
* Power Supply: DC 7–24V
* LED Indicators: Power indicator, center point (AP) and access point indicators, signal strength indicators, and network port connection indicator
* Antenna Interface: SMA female connector

3. Electrical Performance
* Input Voltage: DC 7–24V
* Average Operating Power: 1.5W
* Operating Temperature: -20°C to 75°C

4. Dimensions
* Product Dimensions: 42mm × 59mm
* Product Weight (One Piece): 20g

5. Antenna
* External 2dB Omni-directional Antenna, 19cm

Packing List:
* 2 × Video Data Modules
* 2 × Antennas

Packaging Details:
* Weight: 0.15kg

Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
