HT-RT01 Battery Internal Resistance Tester – 1µΩ to 200Ω & 1mV to ±100VDC for Lithium Battery Packs

HT-RT01 Battery Internal Resistance Tester – 1µΩ to 200Ω & 1mV to ±100VDC for Lithium Battery Packs

Features:
High Precision Battery Internal Resistance/Voltage Tester
* Internal Resistance Measurement Range: 1µΩ ~ 200Ω | Voltage: 1mV ~ ±100VDC

2.4-inch LCD Screen
* LED liquid crystal display makes data reading more convenient, supports Chinese/English switching, and simultaneously displays internal resistance and voltage, making the test data clear at a glance.

High Resolution/High Precision Display
* It is equipped with a double-row four-digit precision digital display, minimum resolution of 0.1µΩ and 10µV, offering high accuracy, good stability, and the fastest test speed of 5 tests/second.

Application Areas
* The battery tester is mainly suitable for various types of batteries such as lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, alkaline batteries, lithium iron phosphate batteries, lead-acid batteries, and 18650 batteries; UPS online inspection; supercapacitor equivalent resistance (ESR) measurement; characterization of low-resistance properties of electromechanical components, and various contact resistance tests under low current conditions.

Can Be Connected to Computer for Testing
* The battery detection range is dynamically set in real time to screen the batteries, with an alarm prompt if the range is exceeded.

Free Switching Between Chinese and English
* It supports both Chinese and English language settings. Easy to switch between them.

Specifications:
* Model: HT-RT01 Internal Resistance Meter
* Measurement parameters: AC resistance, DC resistance
* Accuracy: Resistance: ±0.5%; Voltage: ±0.5%
* Test range: Resistance: 0.0001mΩ - 200Ω; Voltage: 0.0001V to ±100VDC
* Signal source:
   ** Frequency: AC 1kHz
   ** Current: 50mA at 2mΩ/20mΩ; 5mA at 200mΩ/2Ω; 0.5mA at 20Ω/200Ω
* Range:
   ** Resistance: 6 ranges, automatic and manual;
   ** Voltage: 3 ranges, automatic and manual
* Measurement speed: 5 times/second
* Calibration:
   ** Resistance: Each range calibrated manually, independent of others
   ** Voltage: Each range calibrated manually, independent of others
* Power supply voltage: AC110V/AC220V
* Power supply current: 50mA~100mA
* Range: Automatic shifting
* Measurement input: Balanced method
* Measurement probe: Kelvin four-wire clamp
* Language: Switchable between Chinese and English
* USB port: Can connect to a computer
* Dimensions: 190mm × 180mm × 80mm
* Weight: 1.1kg
* Display: LCD display

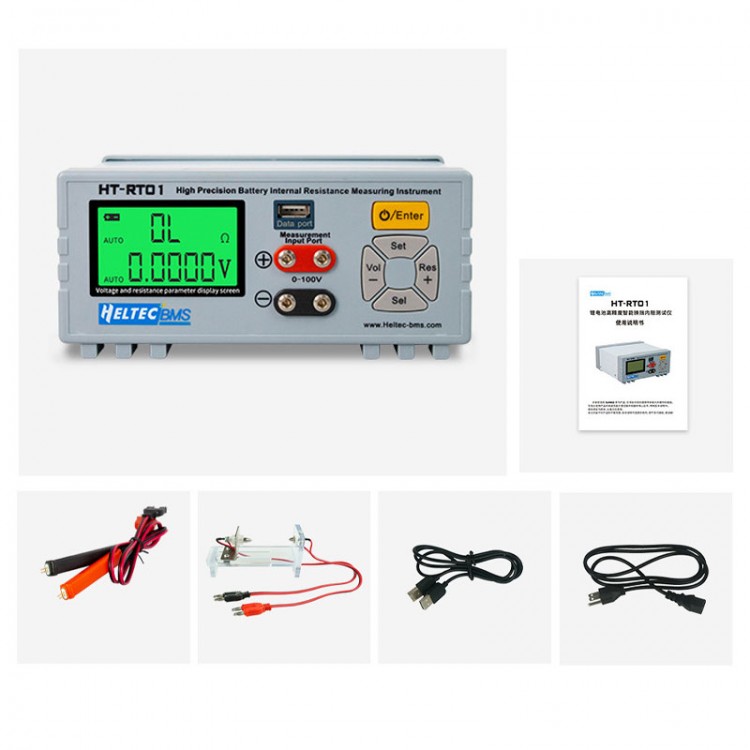

Packing List:
* 1 × Internal Resistance Tester
* 1 × Kelvin Four-Wire Test Probe
* 1 × Test Fixture
* 1 × USB Connection Cable
* 1 × Power Cable
* 1 × User Manual

Packaging Details:
* Weight: 1.2kg

Note:
* Batteries are not included.
