• HT04M Terminal Block 4Ch Collector Single Ended To Differential Module HTL/TTL To Differential Grey

HT04M Terminal Block 4Ch Collector Single Ended To Differential Module HTL/TTL To Differential Grey

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.88
  • Price in reward points: 279 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.32 $26.76 $25.93 $24.81 Contact US
Quantity:

HT04M Terminal Block 4Ch Collector Single Ended To Differential Module HTL/TTL To Differential Grey

Product Parameters:

- Channel: 4ch (independent conversion channel. Can be disconnected when not in use)
- Output voltage/current (maximum): ±5.0V/40mA
- Signal voltage/action current: DC8-30V/4-20mA (optional voltage 3.3/5.0V)
- Power supply voltage: DC15-30V
- Input support signal: TTL/EIA422/423 differential, sine wave, single-ended, collector signal
- Output signal: 5V differential signal

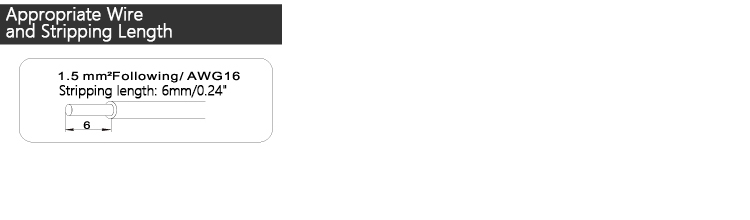

- Input wiring method: 10 points (slotted head screw type)
- Output wiring method: 9 points (slotted head screw type)
- Use environment: temperature: -40℃ to +100℃
- Response speed: tpHL: 20ns; tpLH: 20ns
- Product weight: about 68g/0.15 lb

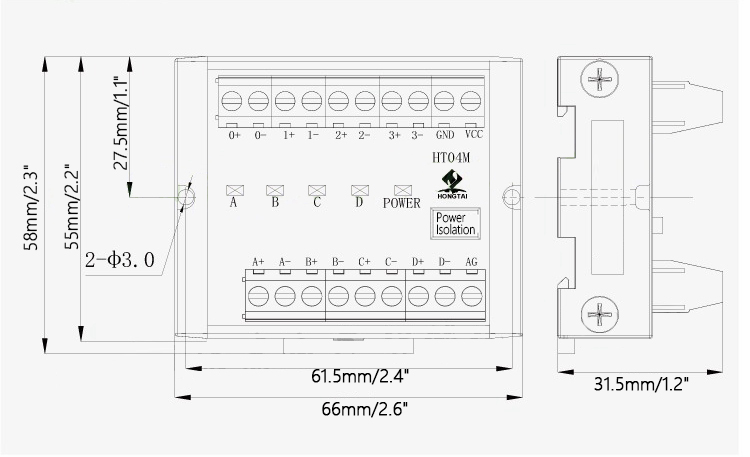

- Installation method: via DIN35mm rail or M3*25 screws

Features:
- Input and output are completely isolated, time sequence positioning is accurate, anti-interference ability is strong, transmission distance is long
- The original imported chip boasts small size, long life, no noise, no electromagnetic interference, and fast response speed (frequency up to 10MHz). No pulse is lost. The interference to the outside world is small. The output loss is small. The built-in chip is dust-proof and anti-fouling. With LED action display, users can see the input and output status at a glance
- Support multiple signal input, TTL/EIA422/423 differential, sine wave, single-ended, collector signal; compatible with NPN and PNP signals

Applications:
- The collector pulse signal output by a PLC is converted into a differential signal to control the servo system to enhance the transmission distance and improve the anti-interference ability (such for ABB, Siemens, Mitsubishi, Omron, Panasonic, Delta, VIGOR, FATEK, Schneider, Xinje, Inovance, Yaskawa and other brands PLC). PLC interface supporting NPN and PNP
- Convert various single-ended, collector, and pulse signals into differential signals. Differential signal input can also be used for differential isolation
- Support input signal waveforms, including differential waveform signal, sine wave signal and pulse signal
- Output differential waveform signal

Package Included:
- 1 x Set of Module



Attention:
Before using, please refer to the IO interface definition of each brand and the wiring example diagrams of this module. Read the information carefully and select an appropriate signal voltage according to the actual situation to ensure the normal use of the product.
