HV50 Hifi Audio Digital Power Amplifier TDA7492 50Wx2 Home AMP Aluminum Class D with Power Supply Black
Introduce

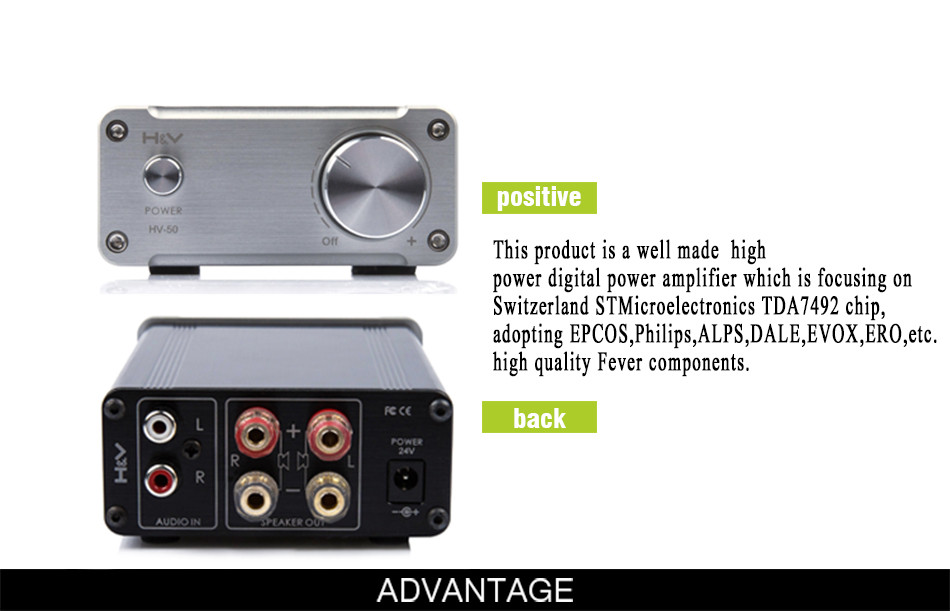

This product is a well made high power digital power amplifier which is focusing on Switzerland STMicroelectronics TDA7492 chip, adopting EPCOS,Philips,ALPS,DALE,EVOX,ERO,etc.high quality Fever components.
TDA7492 itself has super powerful Output short circuit protection systems & over temperature protection circuit. It could work under Voltage of DC 8-26V(but the working voltage is quite related to the output power & performance.) In order to ensure the maximum performance, we use a special matched DC24V power supply for it.
When it's working at DC24V the best voltage point, its effectiveness is up to 90%, and it won't produce so much heat, so it's quite suitable for usage in longworking time occasion such as supermarket, etc.!This product is a well made high power digital power amplifier which is focusing on Switzerland STMicroelectronics TDA7492 chip, adopting EPCOS,Philips,ALPS,DALE,EVOX,ERO,etc.high quality Fever components.
TDA7492 itself has super powerful Output short circuit protection systems & over temperature protection circuit. It could work under Voltage of DC 8-26V(but the working voltage is quite related to the output power & performance.) In order to ensure the maximum performance, we use a special matched DC24V power supply for it.
When it's working at DC24V the best voltage point, its effectiveness is up to 90%, and it won't produce so much heat, so it's quite suitable for usage in longworking time occasion such as supermarket, etc.!power 2*50W

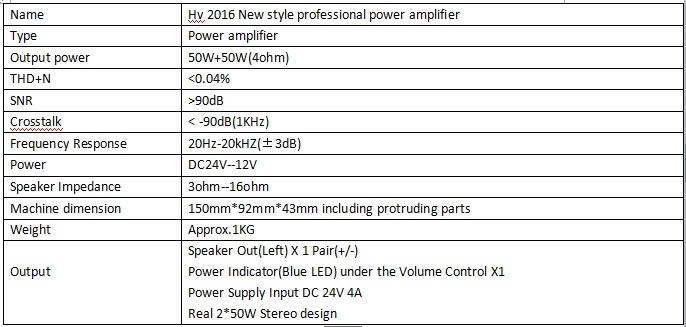

Specifications:
- Model: HV-50
- Class D Power amplifier
- Output Power(Each Channel@ VS = 25V)
50W/Channel(6Ω, 10%,THD+N)
40W/Channel(6Ω, 1%, THD+N)
40W/Channel(8Ω, 10% THD+N)
38W/Channel(4Ω, 1% THD+N)
- Efficiency - >90% @ Full Power(RL = 4Ω)
- Differential inputs minimum common-mode noise
- Standby feature & Mute features
- Short circuit protection
- Thermal overload protection
- Externally synchronizable
- Can connect with any passive 4/8 Ω speakers.
- Compatible with Standard audio line of any Sound System.
- Color: Black

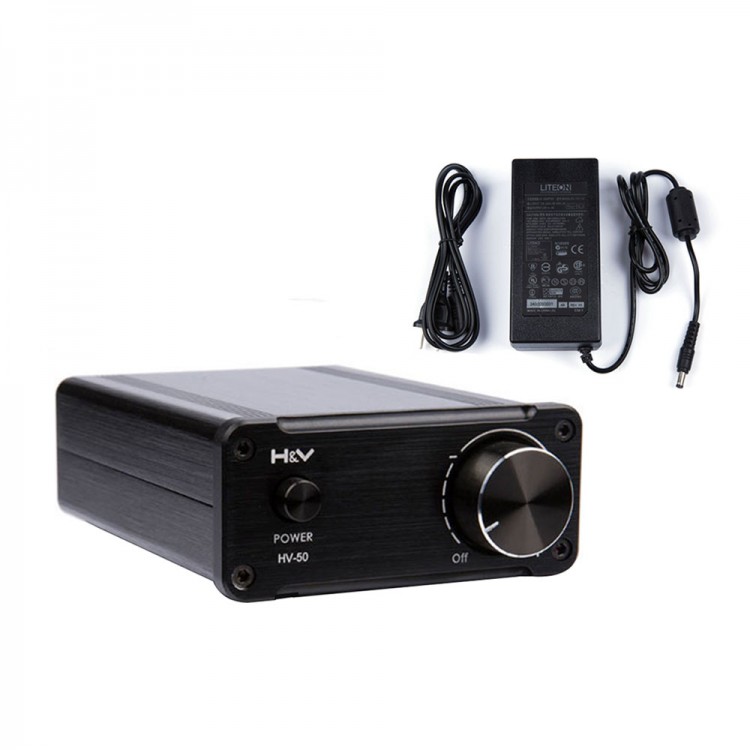

Package Contents:
- 1 x Power amplifier
- 1 x 24V Power adapter
- 1 x Power cable
- 1 x Manual
