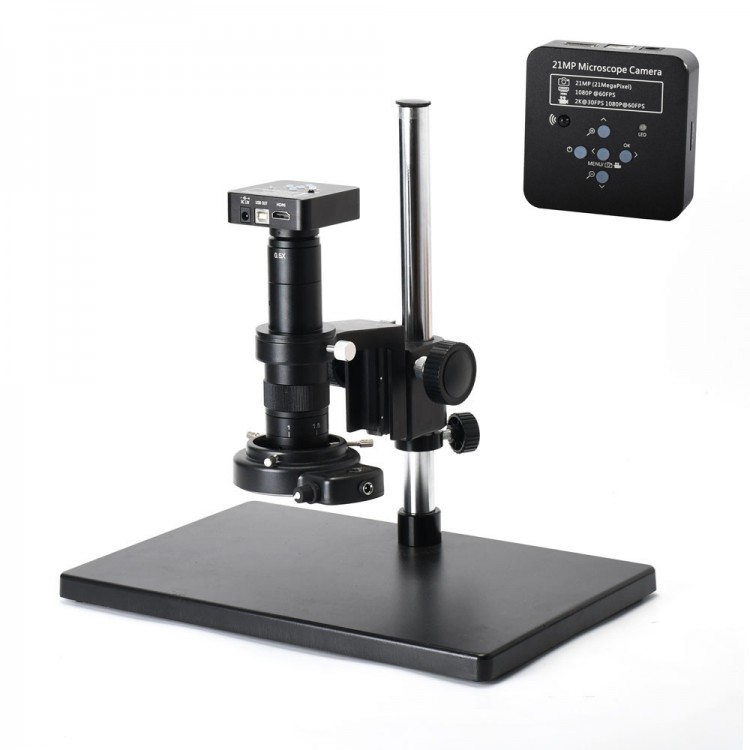

HY-1138A 21MP Industrial Microscope Camera 4K Video Record 1080P w/ 180X Lens HDMI/USB Output 60LEDs

Availability: In stock, usually dispatched in 1 business day

  • Price:$266.89
  • Price in reward points: 2669 Reward Points: 27
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $261.55 $256.21 $248.21 $237.53 Contact US
Quantity:

HY-1138A 21MP Industrial Microscope Camera 4K Video Record 1080P w/ 180X Lens HDMI/USB Output 60LEDs

Features:

- 21MP CMOS sensor
- Support TF card to store image and video
- USB port supports measuring function
- Built-in adjustable crosshair set
- Adopted image sensor 1/2.33"
- Multi-language menu
- 1920x1080P@60fps
- 4K@30fps

Specifications:
- Image Sensor: 21MP CMOS Sensor
- Pixel Size: 1.335 x 1.335μm, 1/2.33"
- Frame Rate: 1920x1080@60fps HDMI Output
- Photo Resolution: 1920x1080/30fps; 1280x720/30fps; 640x480/30fps; 320x240/30fps (MJPG)
- High Definition: Video record supports up to 4K
- Scanning Way: Scan line by line
- White Balance: Manual, automatic white balance
- Built-in Crosshair: Multiple colors available. 4 vertical and 4 horizontal movable lines
- Image Storage: USB port for PC; HDMI port for TF card storage
- Video Port: HDMI Port, USB Port (support measuring software)
- Exposure: Manual or Automatic Exposure
- Digital Magnification: 1X-10X digital zoom
- Operating Temperature: 0-60℃
- Power Supply: External connection 12V DC, enabling 10% deviation
- Lens: For C or CS connector
- Camera Ports: Standard HDMI & USB port, TF card port and power supply port
- Menu Language: Multiple Languages, including English and Chinese

180X Lens:
- Optical Magnification: 0.7-4.5X
- Magnification Ratio: 1:6.5
- Compatible Main Lens Size: 45mm (Diameter)
- Working Distance: 100-120mm
- Min. Magnification: 0.7X with 120mm working distance & 18mm visual area
- Max. Magnification: 4.5X with 100mm working distance & 2-3mm visual area
- Photography Eyepiece: Standard 0.5X
- Auxiliary Objective Lens: None

Package Included:
- 1 x 21MP Industrial Camera
- 1 x 180X Adjustable Lens
- 1 x Adjustable Stand
- 1 x 60-LED Light Source
- 1 x HDMI Cable
- 1 x USB Data Cable
- 1 x Disc (with measuring software)
- 1 x Remote Control

Note: Batteries are not included in the package.
