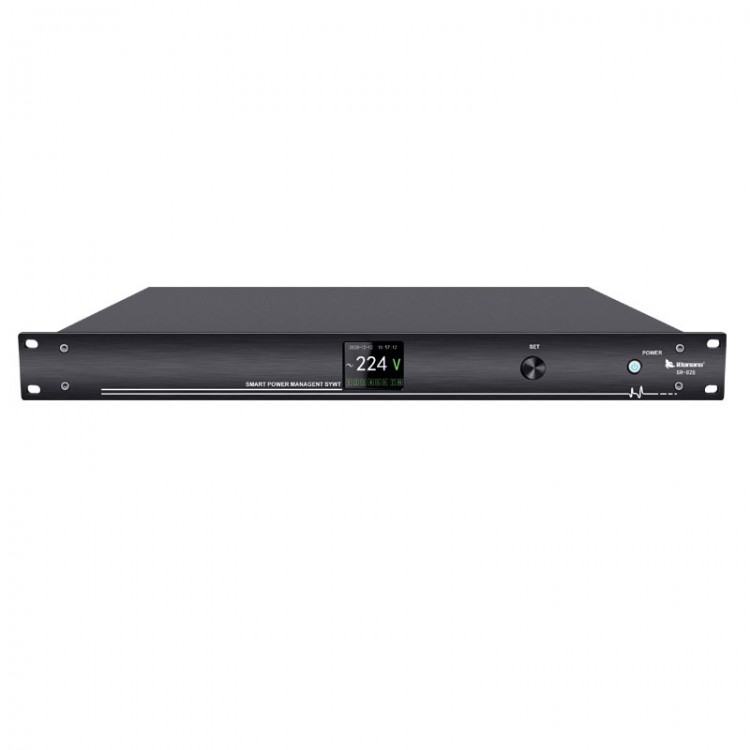

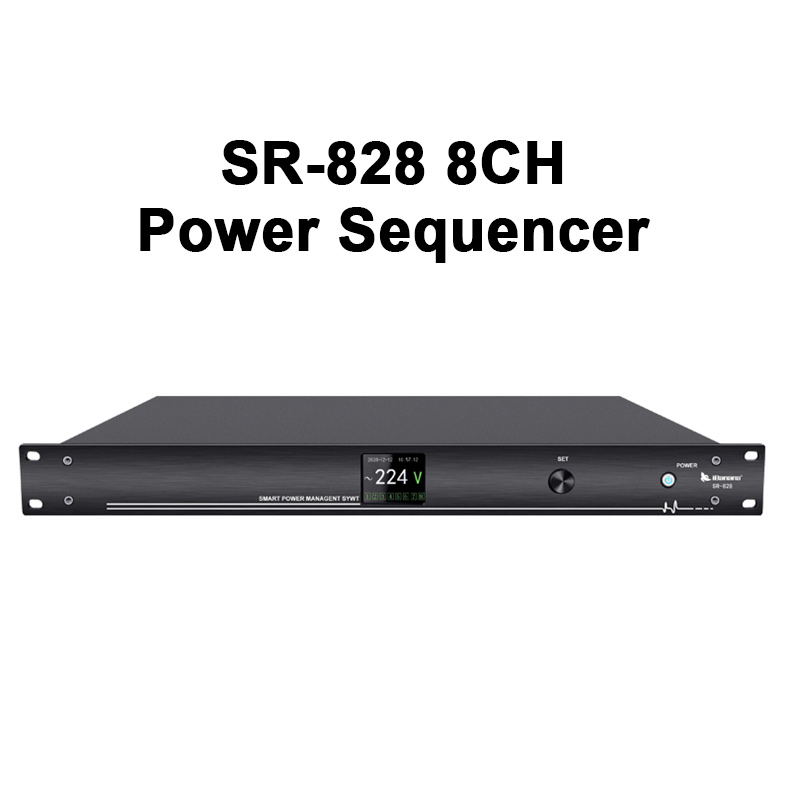

iBanana SR-828 8CH Power Sequencer Controller Smart Power Management System w/ Filter for 110V 220V

iBanana SR-828 8CH Power Sequencer Controller Smart Power Management System w/ Filter for 110V 220V

Features:

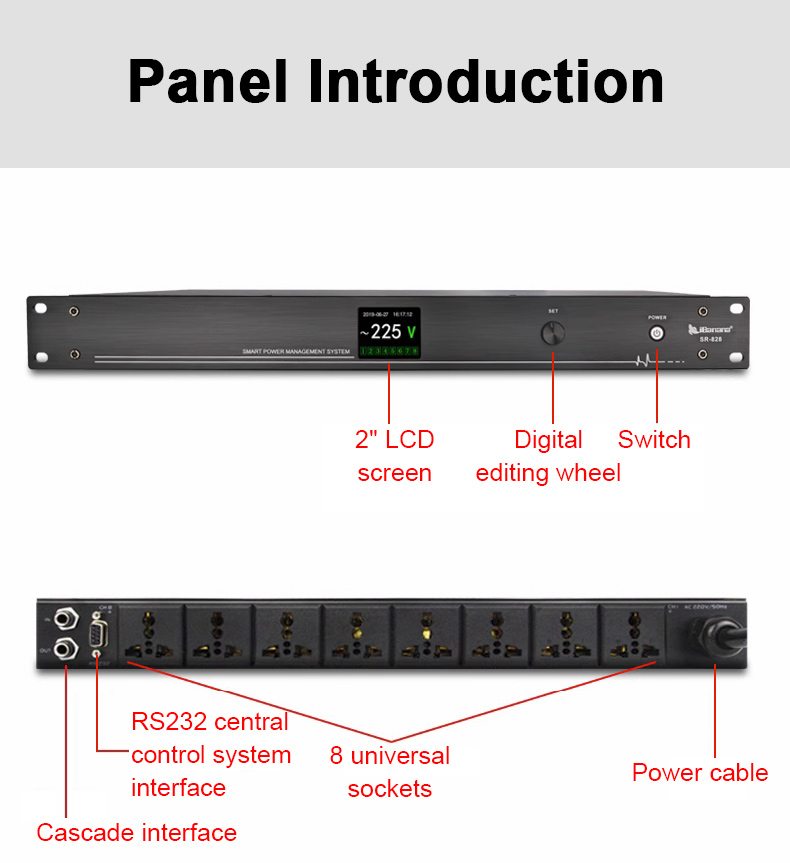

- 8 universal phosphor copper sockets
- Professional high-power lines
- With a 2-inch LCD screen

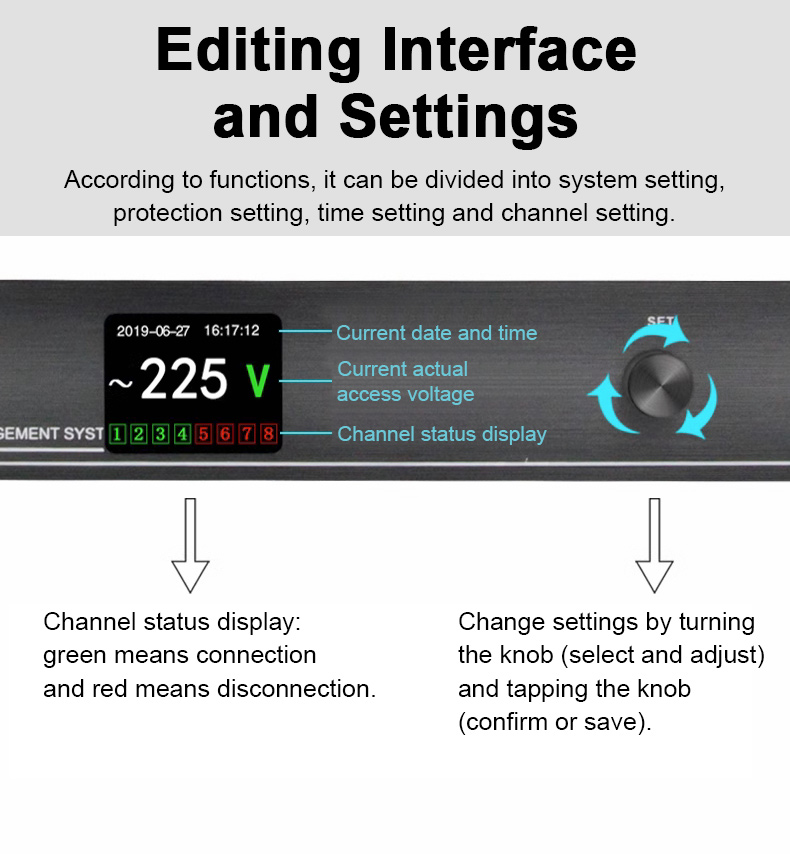

- Digital editing
- Chip control
- Under-voltage and over-voltage detection and alarm
- Overload protection
- Standard 1U rack: compact and powerful

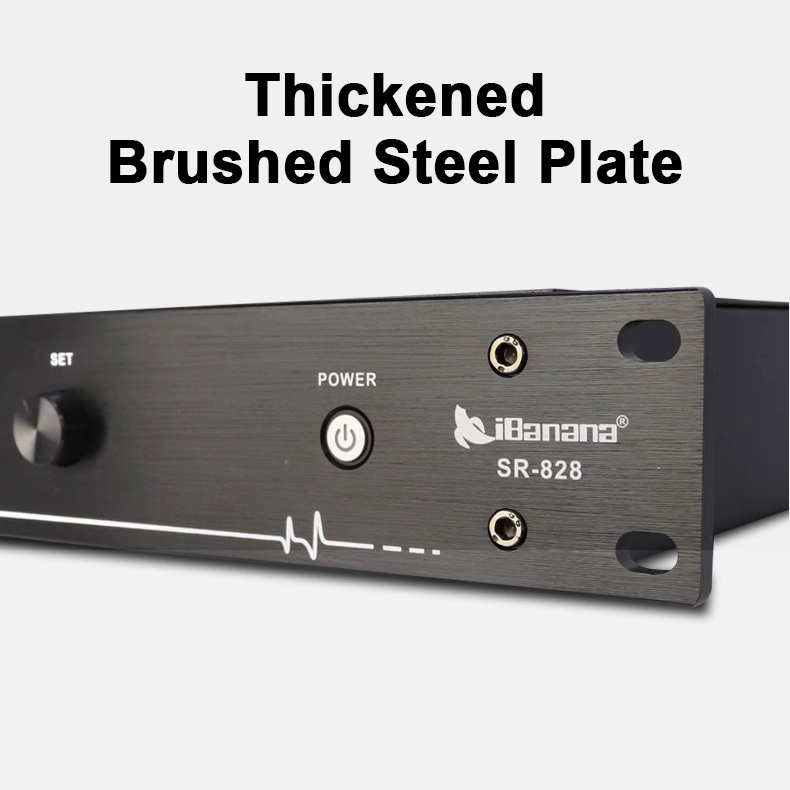

- Thickened brushed steel plate: precise cutting and high-end atmosphere

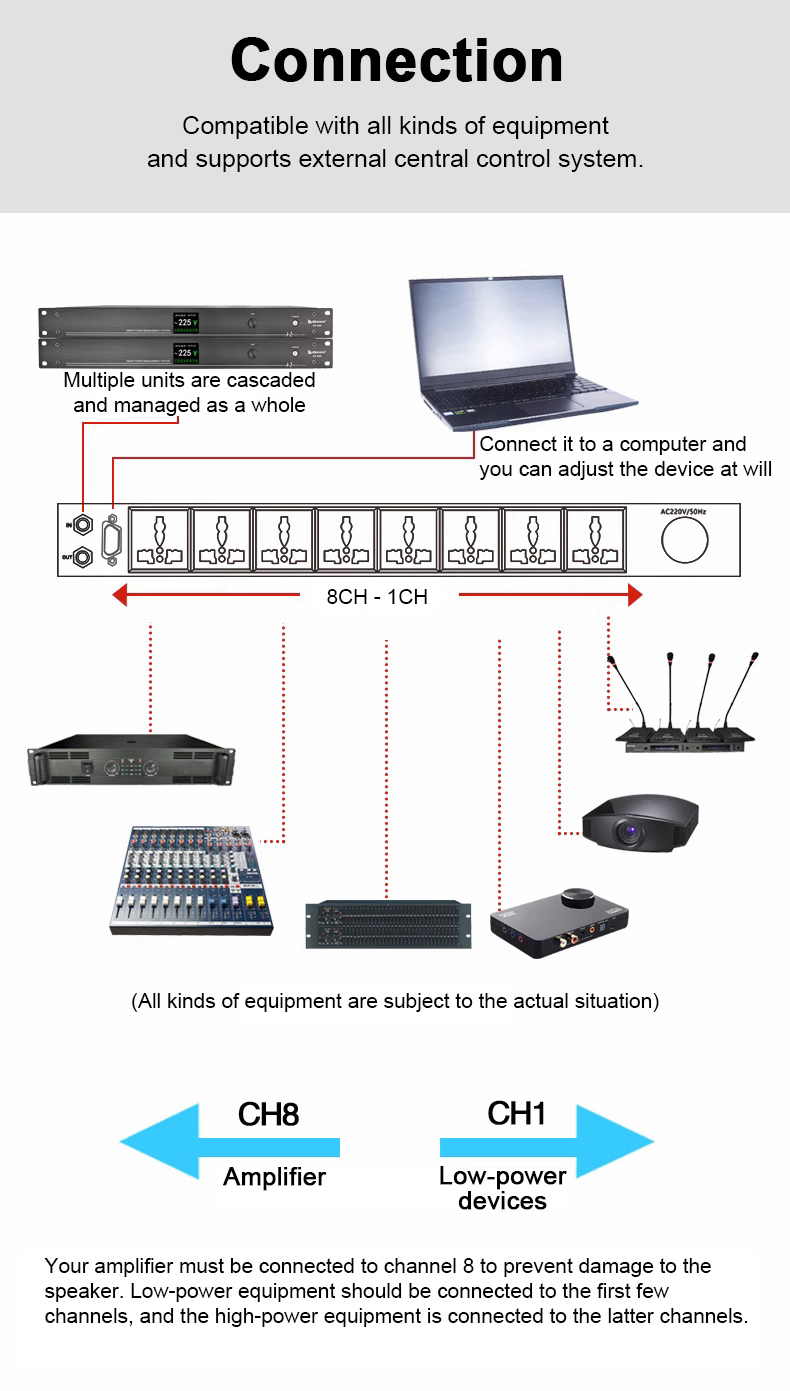

- Compatible with all kinds of equipment and supports external central control system. Your amplifier must be connected to channel 8 to prevent damage to the speaker. Low-power equipment should be connected to the first few channels, and the high-power equipment is connected to the latter channels

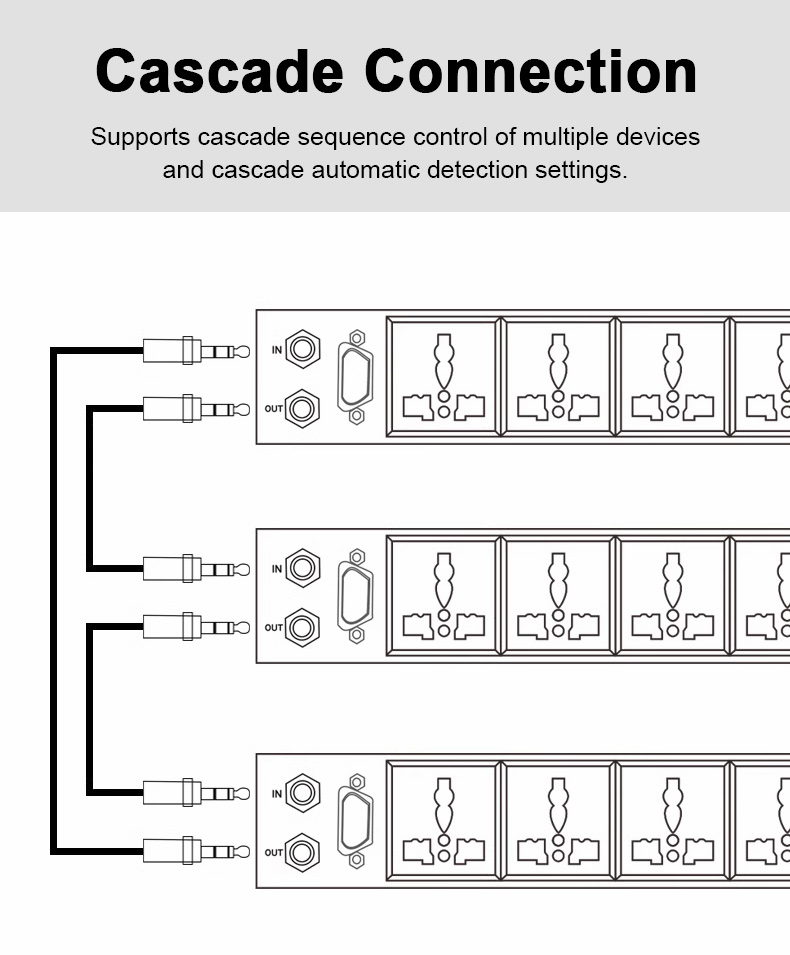

- Supports cascade sequence control of multiple devices and cascade automatic detection settings
- System settings: 8 sets of data can be called/factory settings/Chinese and English interface settings/central control system ID management
- Save settings: Depending on the actual situation, you can set the over-voltage and under-voltage protection/automatic-protection channel to recover automatically
- Time setting: With a built-in clock chip, you can set the total power-on and power-off time of devices
- Delay setting: independently and freely set the power on and off time of 1-8 channels (0-999S)
- Widely used: for meetings, stage shows, weddings, KTV, broadcasting in public places, bars, etc.

Specifications:
- Model: SR-828
- Rated output voltage: AC 220V 50Hz
- Controllable power supply: 8 channels
- Delay time for action per channel: 0 to 999 seconds
- Power supply: AC220V 50/60Hz 30A
- Single-channel rated output current: 13A
- Rated total output current: 30A
- Timer function: √
- External control: RS232 central control system ON/OFF control
- Filtering: √

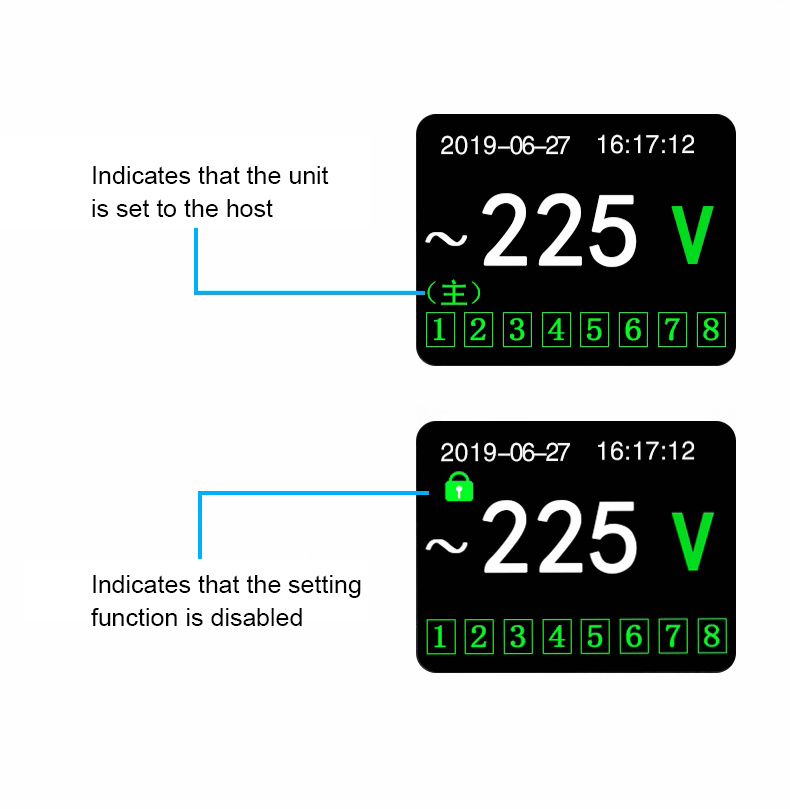

- Status display: Color LCD displays the current voltage, date, time, and ON/OFF status of each channel in real time
- Wire: 6 square millimeters of three-core flame retardant wire

Package Included:
- 1 x Set of Power Sequencer

Packaging Details:
- G.W.: 4.5kg
