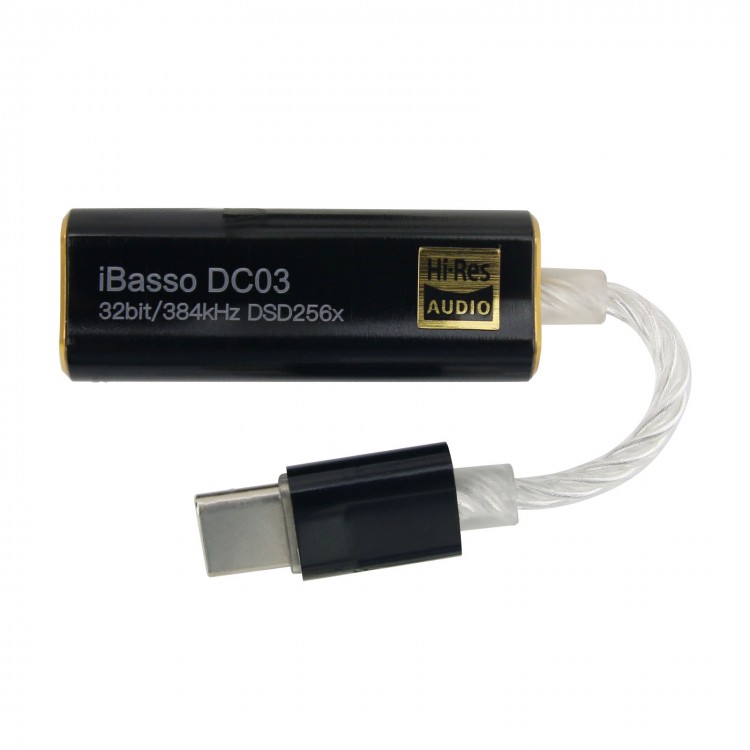

iBasso DC03 DAC Headphone Amplifier Type-C To 3.5MM Phone Headphone Cable External Sound Card Black

iBasso DC03 DAC Headphone Amplifier Type-C To 3.5MM Phone Headphone Cable External Sound Card Black

Features:
- Two high-performance HiFi decoding chips are used to significantly improve output power and channel separation, with richer details. CS43131 chips with great potential, and sound is sweet and audible. Dual DAC design ensures the high-quality sound of the decoding amp cable.
- Excellent tested parameters make it outperform peers. SNR 127dB, noise level <0.9μV, one-end driving force 80mW at 32Ω, THD+N: <0.00028% (32Ω load, 1.2Vrms), output impedance <0.12Ω.
- CS43131 decoding chips x2, PCM32/384, DSD256, Hi-Res AUDIO.
- Can be used as a computer USB sound card. Support mobile phone to play online music.
- Noise level reaches the nanovolt level and approaches zero. The sound is clean and transparent. In AP actual measurement, its noise level is less than 0.9μV (900nV). DC03 maintains a clean sound, allowing the listener to immerse in music.
- 3.5mm headphone jack.
- Compact design but with amazing driving force. Compared with DC02, the thrust of DC03 is increased by 3 times, reaching 80mW at 32Ω.
- The metal shell adopts a wire drawing process, with a delicate look and feel, and a charming touch, which is comparable to HiFi players. Selected 4 strands of spiral-wound copper silver-plated fever wire will bring you a more comfortable experience.
- For Android phones to computers, it meets the needs of all scenarios. DC03 adopts Type-C interface and uses standard UAC2.0 sound card chip. It is not only for most Android phones and tablets on the market, but also enables connection for Apple/Windows computer through CA adapter, easy to achieve external decoding. Plug and play.
- UAV Volume. Provides exclusive APK software. Achieve 64-level hardware volume adjustment. Mobile phones usually use software algorithms to adjust volume, usually only about 10 levels. The volume of each level varies greatly, making it difficult to provide fine adjustment. The output level of DC03 is as high as 2Vrms, even if the volume of your mobile phone is only 1, the volume may be very loud. So we have written an APK that supports UAC 2.0 volume adjustment, and implements 64-level hardware volume adjustment. Each level of the phone volume can be subdivided into 64 levels. The volume can be precisely controlled.

Operation Introduction:
DC03 can be used on devices for Android 5.1 and above, plug and play (affected by the device system or hardware, there may be compatibility differences on a few devices for Android). However, since the DC03 output level is as high as 2Vrms, even if the volume is 1 on some devices for Android, the volume may be loud. Therefore, it is recommended that you install exclusive APK for Android-iBasso UAC to achieve finer volume adjustment. For some models of devices for Android, you may need to manually turn on OTG function in system settings. When used with mobile phones, it supports PCM32bit/384kHz and Native DSD256 output.

Data Index:
- DAC chip: CS43131* 2
- THD+N: <0.00028% (32Ω load, 1.2Vrms)
- Output level: 2Vrms (300Ω load); 1.61Vrms (32Ω load)
- Output power: 80mW at 32Ω
- Signal to noise ratio: 127dB
- Frequency response: 20Hz~40kHz+/-0.5dB
- Noise level: <0.9μV
- Output impedance: <0.12Ω
- PCM: 32bit/384kHz
- DSD: NativeDSD64, DSD128, DSD256
- Product weight: 11g/0.02LB
- Product length: about 105mm/4.1"

Package Included:
- 1 x Set of DAC Headphone Amplifier
