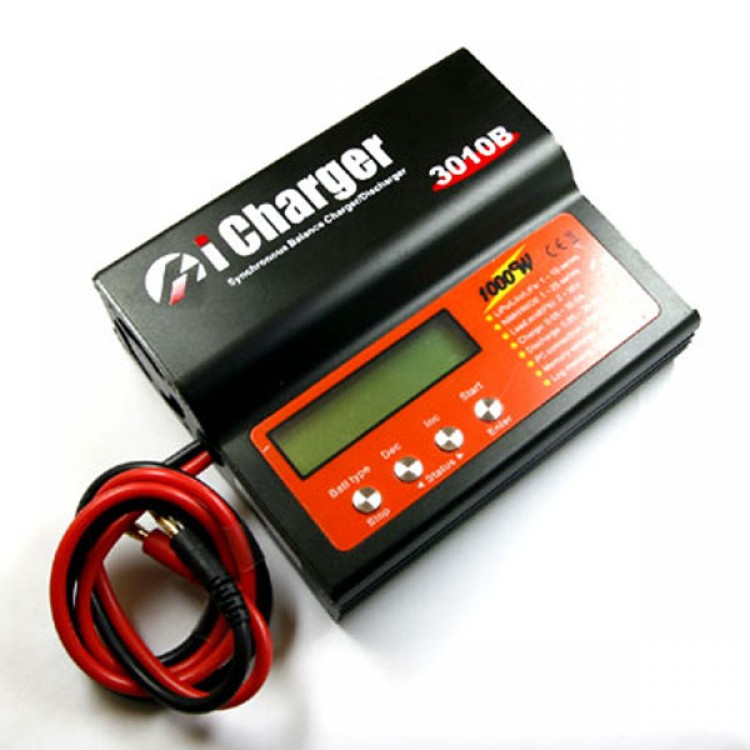

iCharger Multifunction Battery 3010B 1-10S 30A 1000W Balance Charger/ Discharger
Specifications
- Type: iCharger 3010B
- Input voltage range: 4.50 – 38.0VDC
- Charge current range: 0.05 – 30.0A
- Discharge current range: 0.05 – 30.0A
- Maximum charge power capacity: 1000W @ input voltage 23V (500W @ input voltage 12V)
- Maximum discharge power capacity: 80W
- Maximum regenerative discharge power capacity:1000W
- Maximum extern discharge power capacity: 1200W @ 40V/30A
- Current drain for balancing: <500mA
- Balance accuracy: <10mV
- Lithium (LiPo/LiIo/LiFe) battery cell count: 1 – 10 series (In non-balance mode, expand LiFe to 12s)
- NiCd/NiMH battery cell count: 1 – 25 series
- Pb battery cell count: 1 – 18 series (2 – 36V)
- Log Files storage: 16Mbit (31 hours)
- Battery setup memories: 10
- Intelligent temperature control: Yes
- PC Connect: USB port
- Weight: 750g
- Dimensions (L X W X D): 143X123X46mm /5.63 x 4.84 x 1.81 inch
Includes:
- 1 x charger
- 1 x Alligator Clips Cable
- 1 x pair alligator clips for lead-acid battery
- 1 x temperature sensor
- 1 x USB cable
- 1 x CD disk for instruction manual & software
* The balance charging board is not provided with the charger, to be purchased separately
