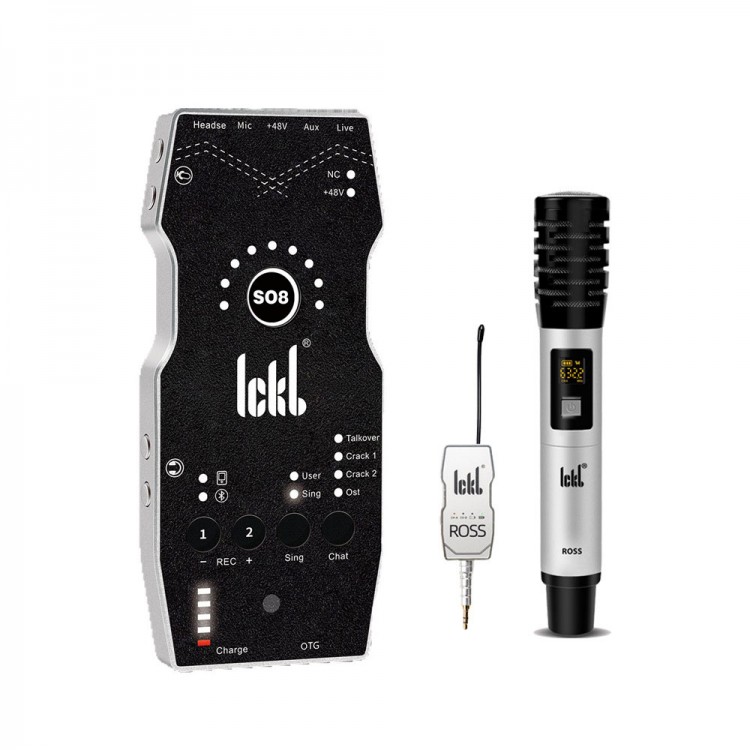

ICKB SO8 Sixth Generation Mobile Live Sound Card with ROSS Wireless Condenser Microphone for Live-streaming

ICKB SO8 Sixth Generation Mobile Live Sound Card with ROSS Wireless Condenser Microphone for Live-streaming

Sound Card Highlights:
- Support mini program debugging
- OTG indicator
- 6 kinds of scene modes
- 9-level reverb volume
- +48V power supply
- Support microphone treble and bass adjustment
- Bluetooth stereo transmission
- Digital lossless OTG/analog 3.5mm transmission methods
- Independent volume control
- Real-time lossless monitoring
- Can be connected to audio source device
- Real DSP reverb effects

Sound Card Improvements:
- Upgraded with powerful mini program debugging capabilities. The software fine-tuning function supports parameter adjustment such as noise reduction, high and low frequency equalization, compression, and reverberation.
- Software mixing console: microphone volume adjustment, headphone volume adjustment, accompaniment volume adjustment, recording volume adjustment.
- Software noise reduction: custom noise reduction intensity, 2 custom noise reductions can be saved.
- Software balance: Simple Mode Balance Adjustment, Professional Mode Balance Adjustment.
- Software compression: threshold adjustment, compression ratio adjustment. Start time setting, release time setting, gain compensation adjustment.
- Software reverberation: reverberation adjustment, pre-delay adjustment, reverberation time adjustment, wet dry ratio adjustment.
- Software effect package: You can customize to maintain effect packages and restore effect packages.

Sound Card Features:
- OTG connectivity indicator light: When the sound card is successfully connected to the cellphone, the OTG indicator light will light up, which can more intuitively detect whether the sound card is successfully connected to the phone.
- Digital OTG interface for lossless transmission of sound quality.
- Lossless stereo sound quality, making your live broadcast more professional, with more stunning treble sound and more stable bass sound.
- In the process of digital audio transmission, it only involves encoding, transmission, and conversion. Compared with analog technology, audio signals have no loss, low distortion, wide frequency response, good dynamics, and high signal-to-noise ratio, which can achieve more ideal sound quality.
- +48V power supply, 2-level custom noise reduction. First level noise reduction: It filters out the background noise generated by analog and digital circuit design to avoid loss of details in human voice. Second level noise reduction: While removing the noise generated by the surrounding environment, it maximizes the cleanliness and transparency of the human voice, avoiding a significant decrease in its fidelity.
- Microphone treble and bass adjustment (compatible with dynamic microphones), volume can be freely adjusted.
- Custom sound effects: can be saved, restored, and personalized through software.
- Supports fast charging for mobile phones, allowing for live streaming while charging both the cellphone and sound card, eliminating the hassle of running out of battery for live streaming phones. (Some cellphones for Android do not support using while charging.)
- Compatible with numerous apps, play as you want, plug and play, supporting the use of many mainstream apps and live streaming platforms on the market.

Sound Card Specification:
- DSP ADC dynamic range: 110dB
- DSP DAC dynamic range: 104dB
- Sampling rate: 48K 24bit
- Operation system: for MacOS/Win7/Win10/iOS/Android
- Mic input gain: 40dB
- Treble bass/7-segment EQ: +/-12dB
- AUX/Bluetooth audio source gain: 12dB
- Frequency response range: 20Hz - 20kHz
- Distortion: < 0.002%
- SNR A-weighted: > 90dB
- Mic noise reduction: 2-level
- Mic phantom power supply: 48V
- 48V input interface: 3.5mm
- Bluetooth: 5.3
- Headphone output: 200mW (32ohms)
- Built-in battery: 3.7V 3000mAH
- Battery using time: 5 - 8 hours
- Charging: DC 5V 3A

ROSS Microphone:
Features:
- ROSS wireless condenser microphone: Wider response frequency, high sensitivity and transient response
- It can solve the problems encountered when singing: easy to be disturbed, poor penetration, fast battery drain, distorted vocals, howling and noise
- Superior sound quality and excellent timbre: the sound is clean, transparent and bright, and the vocals are beautiful
- Richer sound quality: It has higher sensitivity and a wider curved frequency response, making the sound clearer, fuller and more layered
- Compatibility: It is compact and plug-and-play. Compatible with sound cards and speakers with 3.5mm/6.5mm connectors. It is easy to operate and easy to carry
- ROSS receiver: with a 3.5mm connector
- UHF wireless transmission: stable signal, strong penetration and anti-interference ability, and stable and high-speed transmission
- Professionally designed mic grille: Effectively reduces ambient sound and suppresses popping noise sources
- Professionally tuned DSP analysis chip: high-resolution restoration timbre, anti-howling and anti-interference
- Microphone volume adjustment: Multi-level volume adjustment, precise adjustment and adaptation
- For live streaming and karaoke: 1200mAh lithium battery is used. After a single charge, it lasts for about 10 hours
- Type-C charging port: convenient to replace rechargeable battery. The microphone is more portable
- Application scenarios: anchor singing, outdoor live streaming, live singing, etc.

Microphone Parameters:
- Model: ROSS
- Type: Condenser microphone
- Polar pattern: Cardioid
- Frequency: 630-690MHZ
- Channels: 20
- Transmit power: 10mW
- Frequency response: 50Hz-18KHz
- Dynamic range: 98db
- Distortion: <0.01%
- Battery: 18650 lithium battery (3.7V)

Receiver Parameters:
- Frequency range: 630-690MHZ
- RF bandwidth: 60MHz
- Frequency points: 2*20
- Signal-to-noise ratio: 93db
- Receiver sensitivity: -95dBm
- Frequency response: 50Hz-18KHz
- Distortion: 0.05%
- Dynamic range: 96dB
- Receive delay: 2.5ms
- Power supply: 1000mAh lithium battery

Package Included:
- 1 x So8 Sound Card
- 1 x Remote Control
- 1 x So8 User Manual
- 1 x OTG Cable (for Android Type-C)
- 1 x OTG Cable (for iPhone)
- 2 x Live Streaming Recording Lines
- 1 x USB Charging Cable
- 1 x ROSS Microphone
- 1 x ROSS Receiver
- 1 x ROSS User Manual
- 1 x Adapter Plug
- 1 x Microphone Clip
- 1 x Microphone Sponge Cover
- 1 x Extension Cord
- 1 x Charging Cable
