iFlight DC5 230mm 5 Inch FPV Racing Drone Frame Unassembled For DJI FPV Sky End Image Transmission

Availability: Out Of Stock

  • Price:$47.12
  • Price in reward points: 471 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.18 $45.24 $43.82 $41.94 Contact US
Quantity:

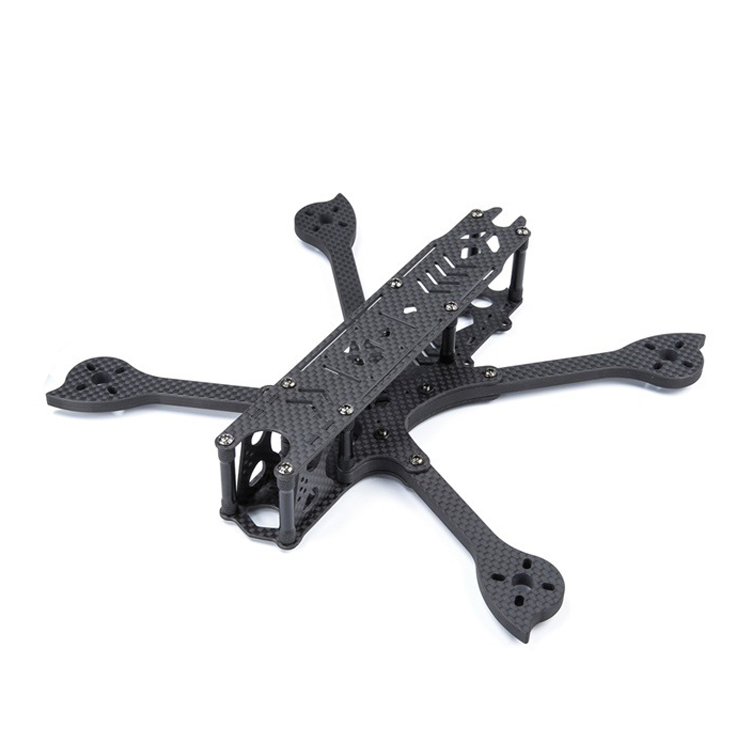

iFlight DC5 230mm 5 Inch FPV Racing Drone Frame Unassembled For DJI FPV Sky End Image Transmission

Description:

iFlight DC5 was designed for DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. The DC5 HD Frame design makes installation and maintenance easy, so that users are ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.

Advantages:
- Quick release arm
- Camera TPU printed parts
- DC type body structure
- Longer tail and more assembly space. For DJI sky end

Features:
- Full 3K Carbon Fiber airframe
- Easy arm swaps
- 230mm wheelbase, 137g
- Popular Deadcat style configuration, No prop in View
- Fits both 30.5x and 20x stacks

Specifications:
- Diagonal wheelbase: 230mm
- Overall frame size: 135*177mm
- Frame weight: 137g
- Bottom plate thickness: 2.5mm
- Top plate thickness: 2mm
- Arm thickness: 4mm
- Arm width: 10mm
- Electronic equipment installation height: 25mm (aluminum column height 25mm)
- Flight control hole distance: 30.5*30.5mm/20mm*20mm
- Motor retainer hole position: 8mm
- Recommended motors: 22xx, 23xx
- Camera spacing: 19mm/22mm

Package Included:
- 1 x Set of FPV Frame

Note: Assembling is needed.
