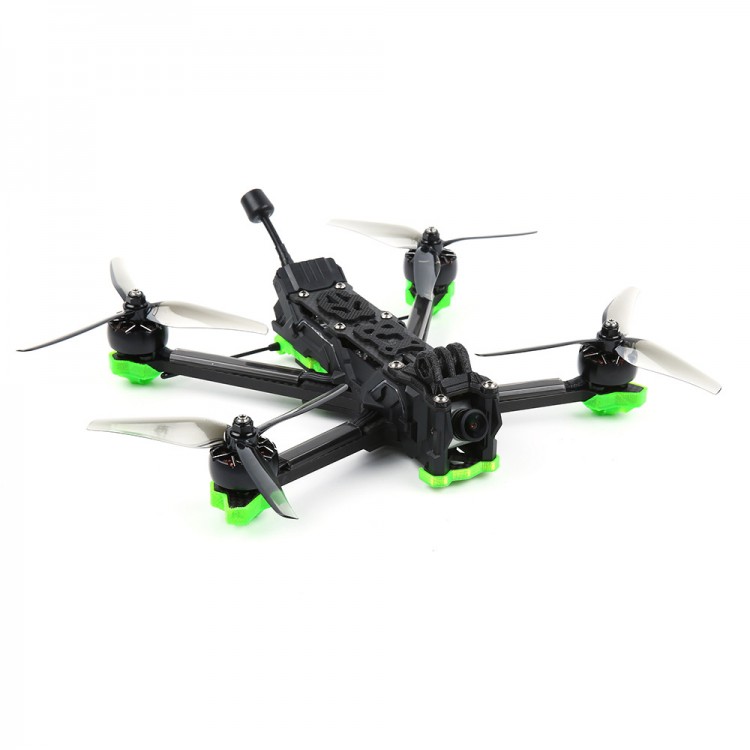

iFlight Nazgul Evoque F5D FPV Drone 5-Inch Whoop Drone 6S BNF ELRS 2.4GHz (Analog)

iFlight Nazgul Evoque F5D FPV Drone 5-Inch Whoop Drone 6S BNF ELRS 2.4GHz (Analog)

Description:
The Secret Of Ultimate Performance Is Passion
- That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this drone and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

Lightweight Side Panels - Keep Your Rig Clean
- Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well.. These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

Secured Integrated XT60 Battery Plug - As Safe, It Can Be
- Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

High-Performance Electronics - F7 55A Power Stack
- Our BLITZ Mini F7 flight control, modern USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new BLITZ Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.

XING-E Pro Performance Motors
- Aluminum unibell, 5mm steel alloy shaft, durable bearings for NSK, center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency.

Illumination - Let It Be Green
- 360-degree illumination for day and night. Maybe the prettiest drone out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.

SucceX Force 600mW - Analog Reliable Power
- Equipped with our latest 600mW Mini VTX to go far. Stable power output and fast frequency lock without interfering with other pilots when powering up. VTX telemetry built-in as well as electrical interference filters for whatever noise that might get through and an MMCX antenna connector that doesn't hop off in wild crashes.

FC // BLITZ MINI F7 V1.1
- MCU: STM32 F722
- Gyro: BMI270
- Baro: DPS310
- OSD: IFLIGHT OSD (AT7456E)
- BEC: 5V 2.5A
- BlackBox: 16MB
- Uart: 5*UART (UART1, UART2, UART3, UART4, and UART:6)
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3 and UART4 for GPS or other sensors that require a serial port
- UART6 for ESC Telemetry
- 1xI2C
- 1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
- 1xSH1.0 8pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver and DJI (3V3/R2/5V /G/R2/T2）
- 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED & Beeper (BUZ/LED/G/5V)
- 4x0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/（BAT Orange）
- Support VTX protocol for Smartaudio & IRCTramp
- WS2812 led Strip: Yes
- Beeper: Yes
- Firmware: IFRC-IFLIGHT_BLITZ_F722
- Outer Size: 30.5*27mm / 20*20mm diameter 4 mounting
- Weight: 5.0g

ESC // BLITZ Mini E55S 4-IN-1
- Input: 2-6s LiPo
- Constant: 55 Amps (per channel)
- MCU: BB21
- Burst: 60 Amps (per channel)
- BEC: No
- BlHeli32 telemetry: Yes
- Dimensions: 42*35mm
- Mounting Holes: 20*20mm diameter 3mm with Grommets diameter 2mm
- Weight: 11.3g
- Target: QH-50 16.7

VTX // 5.8GHz SucceX Mini Micro 600mW VTX
- Power: PIT/25/200/400mW/600mW
- Antenna Interface: MMCX
- VTX protocol: IRC Tramp
- Output: 40 channels

Nazgul F5D Configuration (Analog):
- Flight controller: BLITZ Mini F7
- ESC: BLITZ Mini E55S
- VTX: SucceX mini Force 5.8GHz
- Camera: RaceCam R1
- Motor: XING-E Pro2207 2750KV 4S/1800KV 6S
- Propellers: Nazgul F5

Technical Parameters:
- Model: Nazgul F5D
- Structure: DC type
- Internal space height: 22-31mm
- Wheelbase: 223±2mm
- Empty weight: 392±5g (analog)
- Motor mounting hole: 16*16mm
- Frame size: 136*190mm
- Motor circlip hole: 6mm

Package Included:
- 1 x Nazgul Evoque F5 Analog (DeadCat Pattern)
- 4 x Nazgul F5 Props
- 2 x Sets of Battery Pads
- 2 x Battery Straps
- 1 x Screw Bag

Note:
- Camera for GoPro, battery (4S 1550mAh and 6S 1300mAh are recommended) and other devices are not included, for demonstration purposes only. Thank you for your understanding!
