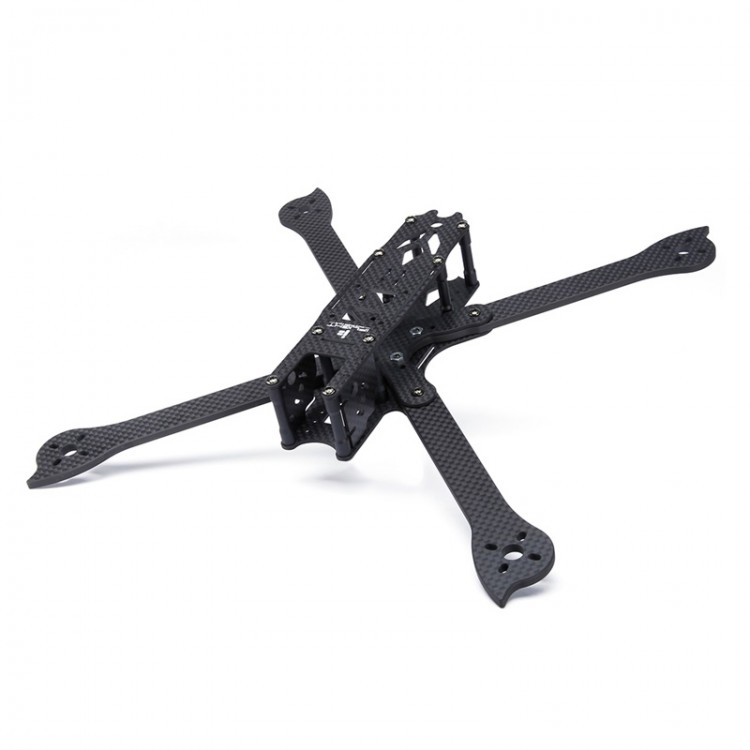

iFlight XL7 V3 7 inch Long Range FPV Quadcopter Frame Kit 295mm For FPV RC Drone

iFlight XL7 V3 7 inch Long Range FPV Freestyle Frame Kit 295mm For FPV RC Drone

Descriptions:
This freestyle frame gives you ultimate control over weight distribution and CoG
by not only allowing the use of M3x30mm standoff but also offering a reversible build orientation for a true mid-mount set up.


Features:
- Chamfered Edge High quality Pure 3K carbon plate
- Adjustable camera placement
- Top mounted battery for optimal CG
- True X frame design
- Replaceable 4mm arms and plates
- High quality 3K full carbon
- Grade 12.9 Black Nickel Plating high quality screw hardware
- Compact design


Specifications:
- Type: 7" Freestyle frame
- Frame wheelbase: 295mm
- Dimensions :208mm x 208mm(body dimension)
- Frame weight:135g approx
- Motor c-clip hole: 8mm
- Standoff Height: 30mm
- 4mm arms,1.5mm vertical side plates
- 2mm top,upper&bottom plate
- Mounting Holes: 30.5*30.5mm
- Carries: 1300-1500mAh lipo + GoPro Session


Recommended parts(not included):
- Flight controller: RevoBee F4 Compatible controller
- Motor: iPower the Ion/Tachyon 2207 Motor 1600/1750kv / XRotor 2405 1800kv
- Propeller: 7 inch propeller
- Camera: FPV cameras 28mm wide
- VTX: 600mW 48Ch Transmitter
- Battery: 4s Lipo battery


Package Included:
- 1pc  *  iFlight XL7 V3 True X 7 inch Frame Kit
