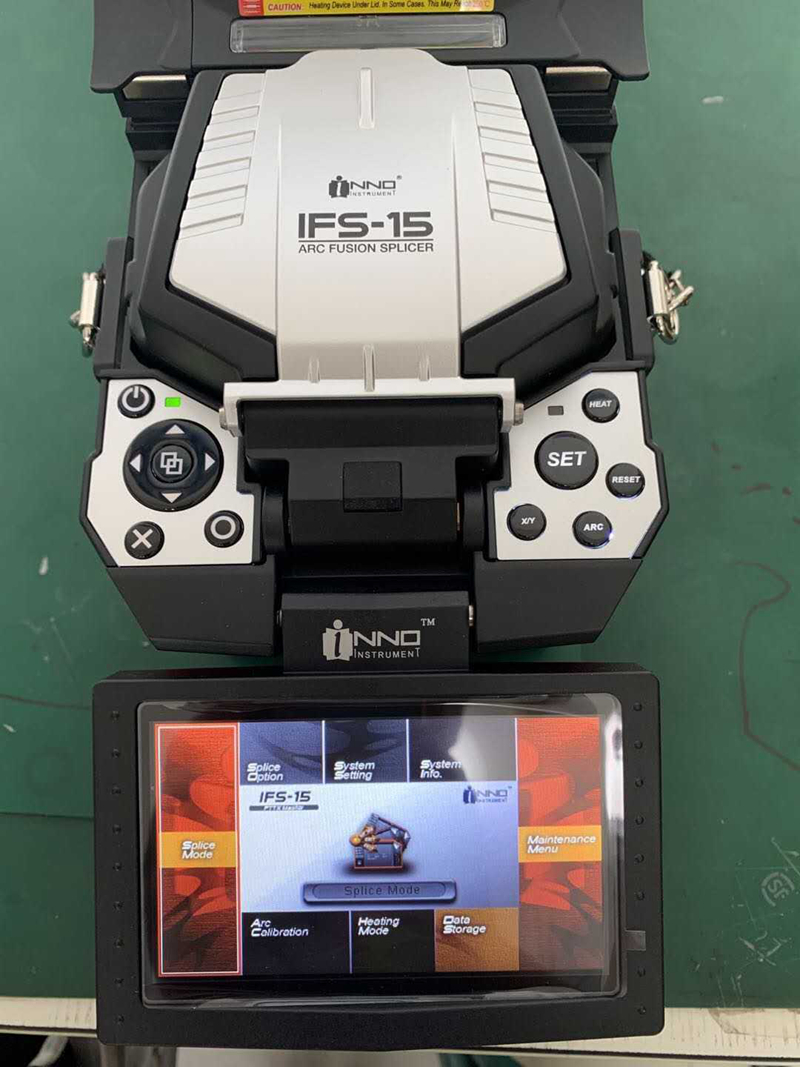

IFS-15 Core Alignment Fusion Splicer Fiber Optic Fusion Splicer Splicing Machine For SM MM DS NZDS

Availability: In stock, usually dispatched in 1 business day

  • Price:$2,027.69
  • Price in reward points: 20277 Reward Points: 203
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,987.14 $1,946.58 $1,885.75 $1,804.64 Contact US
Quantity:

IFS-15 Core Alignment Fusion Splicer Fiber Optic Fusion Splicer Splicing Machine For SM MM DS NZDS

Features:

- 2.8KG weight, light and handy, user friendly, easy to operate
- Very fast splicing time, only 9 seconds
- Operates in bidirectional view.

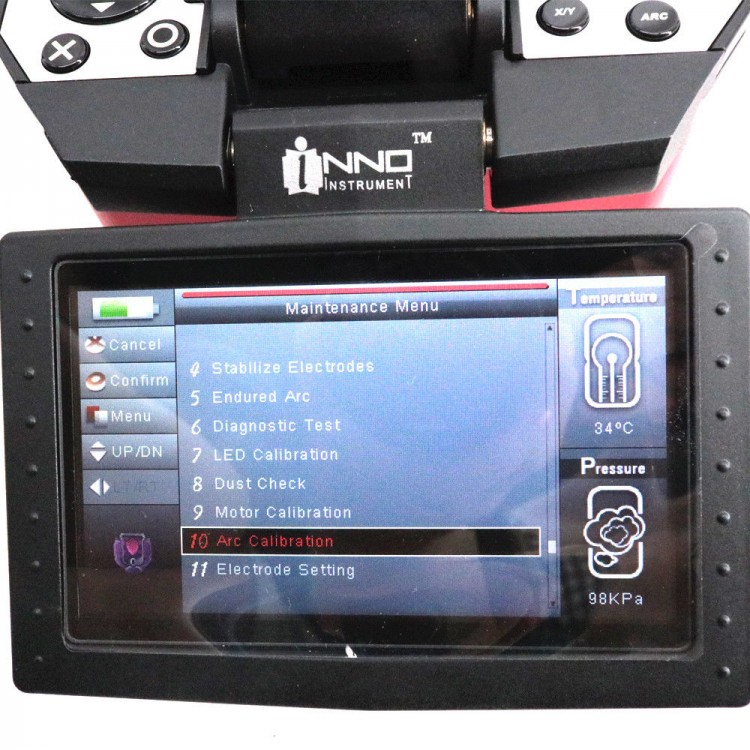

- Real-time calibration of arc-discharge
- Friendly GUI, easy to operate
- Artificial technology, auto discriminate fiber and auto select fusion mode
- Automatic compensate arc-discharge according to temperature and air pressure
- USB master port, easy to upgrade software
- Entire environmental protection design conforms to ROHS standard
- High density windproof design, newest fusion technology (High: 168mm, wide: 145mm)

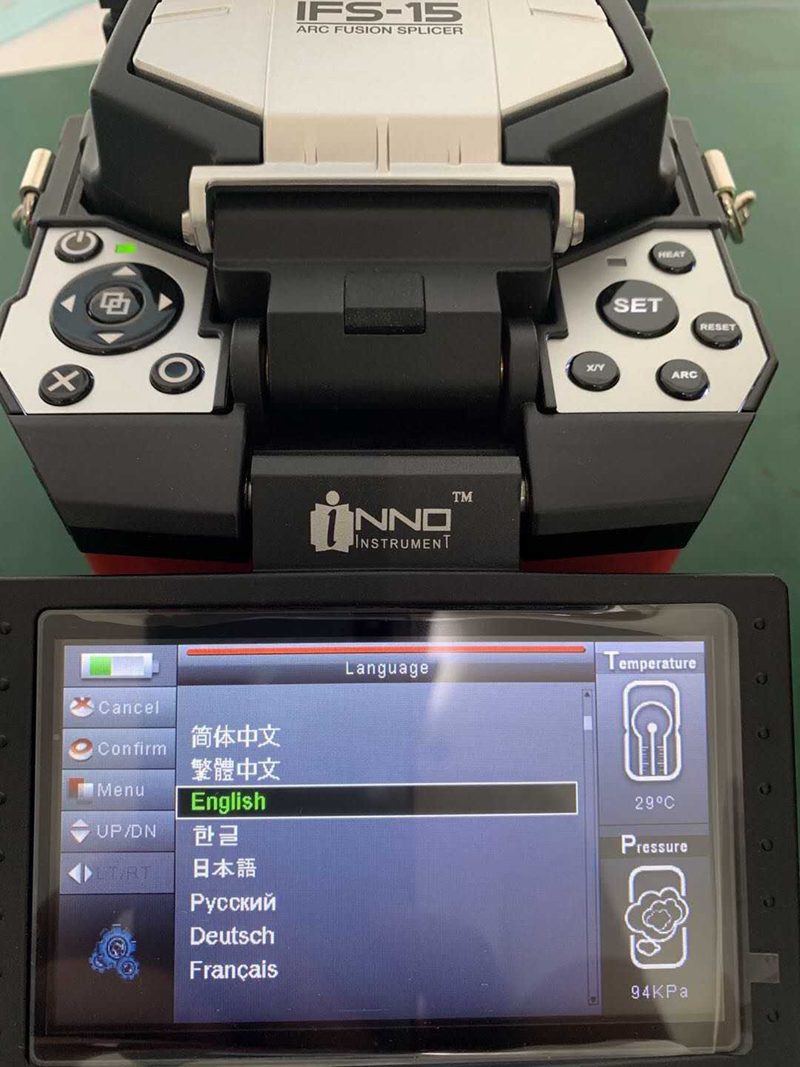

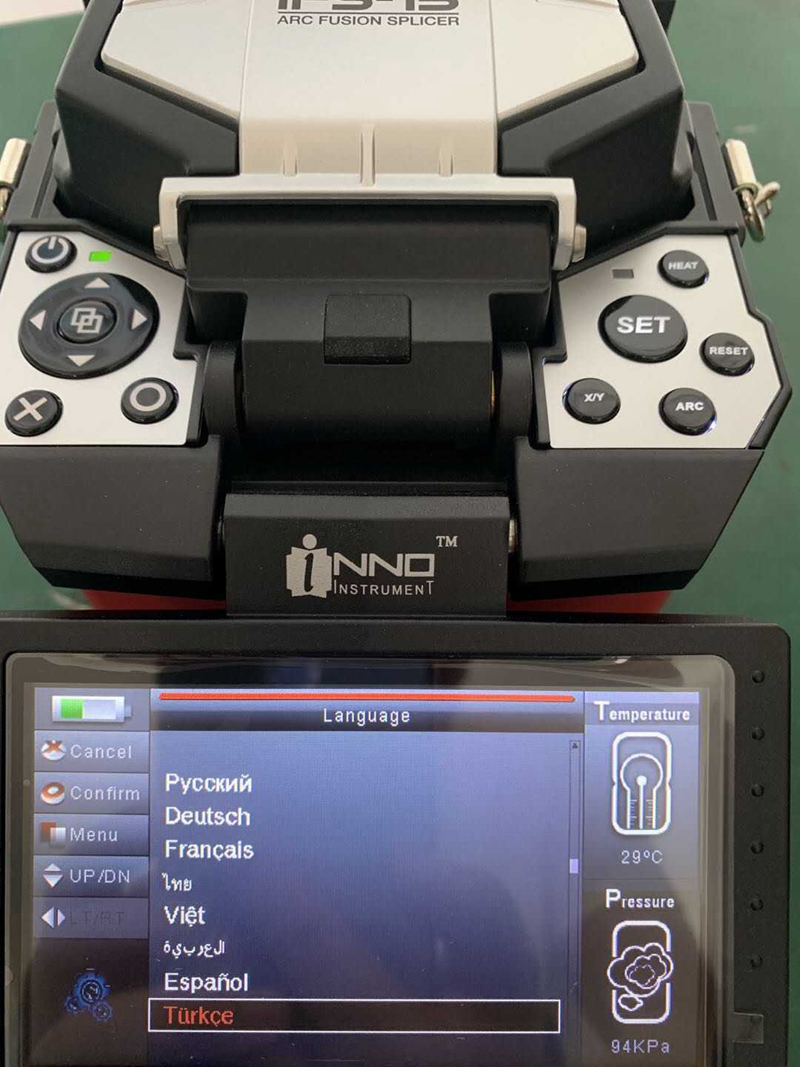

- Two-way Multi-Task Support: 180° switching monitor application to match user's work preference. One can choose his work environment by changing monitor front or back.

Specifications:
- Splicing Method: Core alignment
- Applicable fiber: SM(ITU-TG.652), MM(ITU-TG.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
- Average loss: SM(0.02dB), MM(0.01 dB), DS(0.04 dB), NZDS(0.04 dB)
- Return loss: >60 dB
- Splice time: SM fusion average 9s
- Cleaved length: The fiber which coat-diameter is less than 0.25mm:8-16mm
- The fiber which coat-diameter is lager than 0.25mm: least 16mm
- Operating environment: elevation 0-5000 meter, 95% relative humidity, -10 to 50℃
- Magnification: XY style: 150 power; X/Y: 300 power
- Monitor: 2CCD camera system, 5-inch LCD
- Splice Programs: 40 user mode,10 factory preset mode
- Coating Diameter: 100-1000um
- Clading Diameter: 80-150um
- Splice memory: Can save 2000 record
- Fiber Display: X/Y or XY, single X, Y
- Proof test: 2N (standard)
- Heating programs: Preset 10 kinds of heating mode
- Heating time: FP-03 typical heating time 30s
- Protection sleeve: 60mm,40mm
- Power supply: AC 100-240V input or, DC 12-15V
- Data output: USB master device and AV
- Wind protection: The max wind speed 15m/s
- Size: 168 x 145 x 160 mm
- Weight: 2.8kg

Package Included:

- 1 x Main Unit
- 1 x AC Adapter
- 1 x Charger
- 1 x AC Power Cord
- 1 x Spare Electrode
- 1 x Carrying Case
- 1 x High Precision Cleaver
- 1 x Cooling Groove
- 1 x User Manual
- 1 x Fiber Stripper
