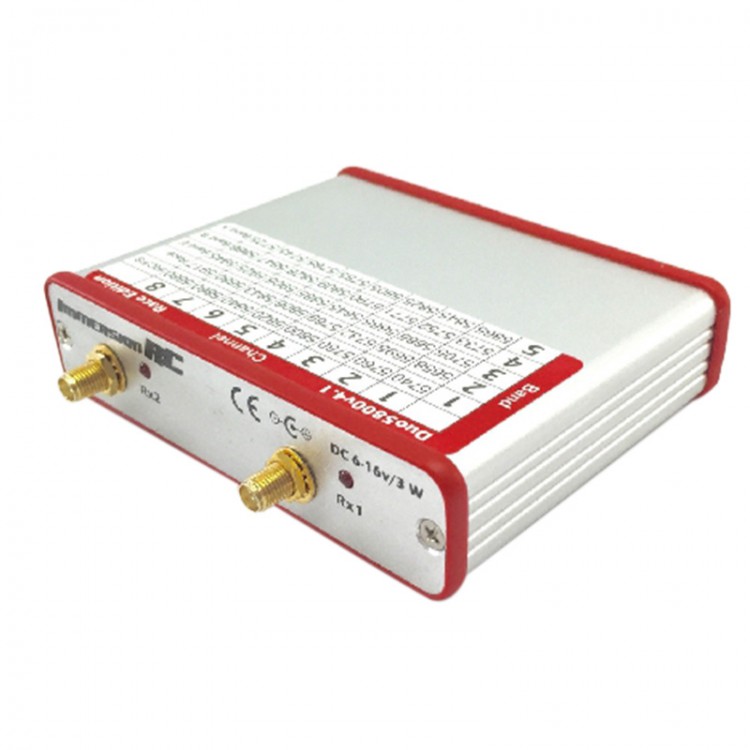

ImmersionRC Duo5800 32CH 5.8GHz AV Rx NexWaveRF Receiver w/GS-Link Dual Output for FPV Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$189.68
  • Price in reward points: 1897 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $185.89 $182.09 $176.40 $168.82 Contact US
Quantity:

ImmersionRC Duo5800 32CH 5.8GHz AV Rx NexWaveRF Receiver w/GS-Link Dual Output for FPV Multicopter

Description:

The ImmersionRC Duo5800v3 is finally here! Immersion has made the Airwave based 5.8GHz A/V links affordable. There is no question the Immersion Duo was one of the best receivers available, and now the V4 using the same great Airwave technology brings the full 32ch 5.8GHz band the line.

The Duo5800 provides a high quality video link, which co-exists with adjacent 2.4GHz R/C transmitters.   And the dual receiver diversity setup allows the use of mixed antennas for a locked in video link. The standard 3.5mm 4-pole jacks combines video and stereo audio in one simple connection. These are compatible with FatShark equipment, and greatly reduce ground-station ‘clutter’. (Combine with the Power Box to increase the number of A/V outputs to 5!)

Features:
- 32 Channel support, ImmersionRC/FatShark/Airwave, Boscam, Team Black Sheep, DJI
- Exclusive high quality NexWaveRF receiver technology
- Dual A/V output, for two viewing/recording devices
- Single-button user interface, and remote control from the groundstation
- A/V receiver with diversity antenna inputs
- GS-Link for single-cable connection to a groundstation
- Not affected by 2.4GHz, or UHF R/C radios!
- 1km range with 25mW CE-Legal transmitters

Specification:
- Dimensions: L=88mm x W=105mm x H=25mm
- Weight: 202g
- Sensitivity: better than -90dBm

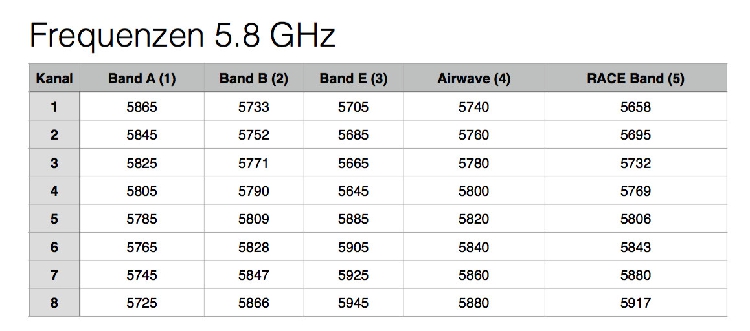

- Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
- Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
- Modulation: FM, Audio and Video
- Alarm: Low Battery, Programmable
- Power Requirements: 6-13v
- Power Consumption: 300mA

Package included:
- 1 x Receiver
- 2 x Antenna
- Cables
