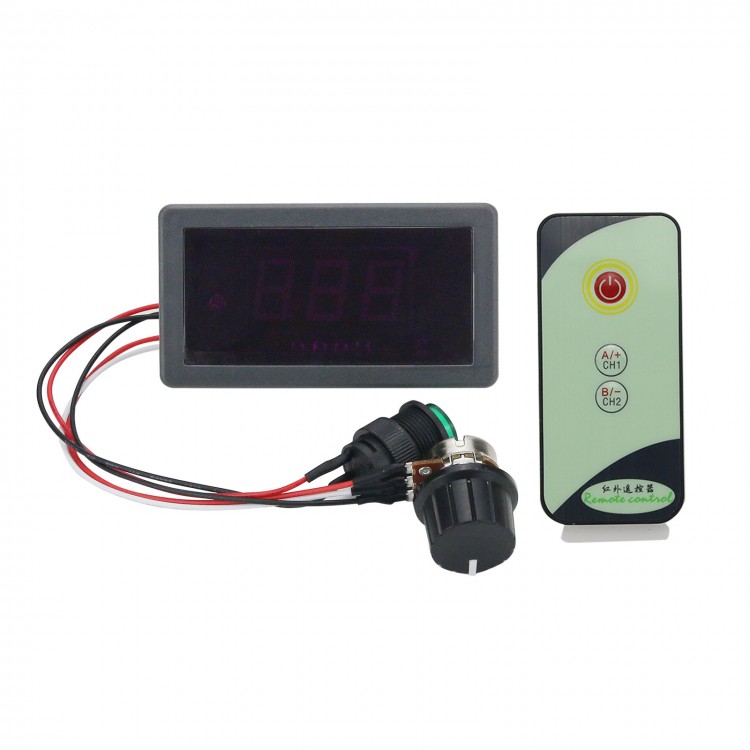

Infrared Remote Control Digital Display Motor Governor 6V 12V 24V PWM Stepless Speed Control Switch
Parameters:
Model: CCM5D-IR
Potentiometer: resistance value B100K; line length 20cm; opening hole 8mm
Operating voltage: DC 6V-30V, output voltage is about 0-100% of the input voltage
Control power: 6V*6A=36W, 12V*6A=72W.....30V*6A=180W
Rated current: 6A
Maximum current: 8A
Speed range: 0%-100% (the minimum change value of infrared remote control speed regulation is about 4%-5%)
Size: 79mm*42mm*24mm
PWM frequency: 16kHz
Weight: 57g
Package List:
1 x Motor Governor
Note:
1. DC motor governor input is DC, not directly connected to AC (such as: household 220V AC).
Otherwise it will burn out.
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be positive or negative when the running direction is inconsistent with the expectation. The direction can be changed by the line adjustment sequence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.
