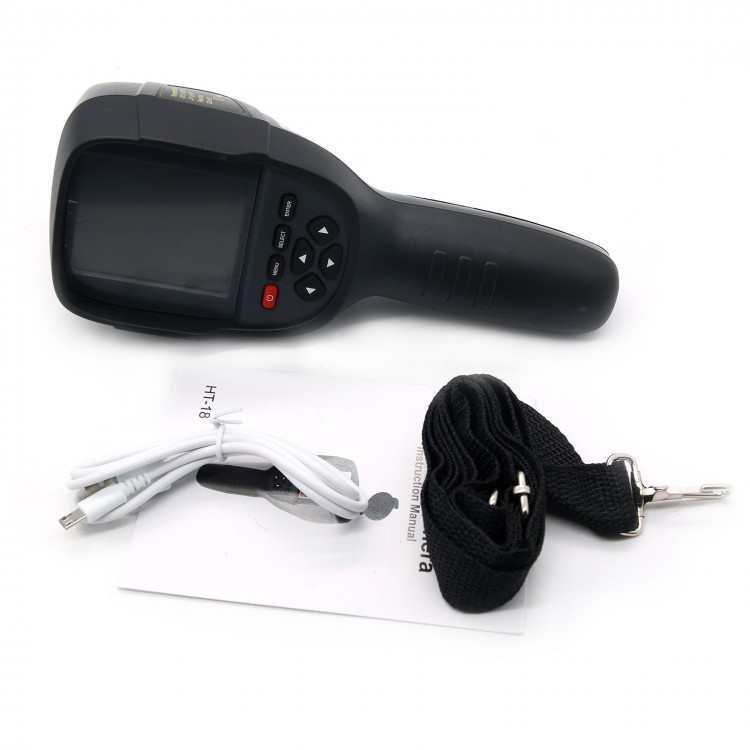

Product Description: Handheld thermal imaging camera is widely used in the medical,archaeological,transport,agriculture and so on.This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.
Specification:
- Handheld Thermal Imaging Camera:
- Resolution: 220X160 (HT-18)
- Visible light image resolution:30X
- Viewing of angle/Minimum distance imaging: 27°X35°/0.5m
- Thermal sensitivity:0.07°C
- Space resolution: 2.2mard
- Focus model: Manually focus
- Sensor type: Uncooled focal plance
- Working wave band: 8~14um
Measuring temperature performance:
- Measuring range: -20°C~300°C(-4°F~572°F)
- Measuring accuracy: ±2.5%or2.5°C
- Measuring calibration: Radiance 0.1~1.0,adjustable
- Image acquisition frequency:8Hz
- Wavelength range:8~14um
- Focusing Mode:fixed
- Palette:rainbow/iron-red/cold color/black white/white black
- Viewing option:25% step full infrared and full view visible image
- Visible light camera:Built-in
- Color palette: 6
- Temperature alarm setting: Setting High and low temperature alarm
- Laser indication:yes
Image display/storage performance:
- Screen specification: 3.2"TFT Screen
- Image storage: Standard 4GB SD card,Max 16GB
- Image format:JPG
- Language: Chinese and English
- File format: *.UIR
- Video output: PAL(50Hz) or NTSC (60Hz) composite video
Power system:
- Battery: 18650 Li battery available
- USB:Micro USB2.0
- Power adapter: 8V~11V DC output
- Working mode: Double mode
- Switch off time:5 minutes/10 minutes/no auto switch off
Environment and size parament:
- Working environment temperature: 0°C~50°C
- Storage environment temperature: -40°C~80°C
- Humidity:<85%RH (Non condensation)
- Size:90x105x223mm(LxWxH)
- Weight:389g
Package List:
- 1 x Thermal infrared imager
- 1 x User manual
