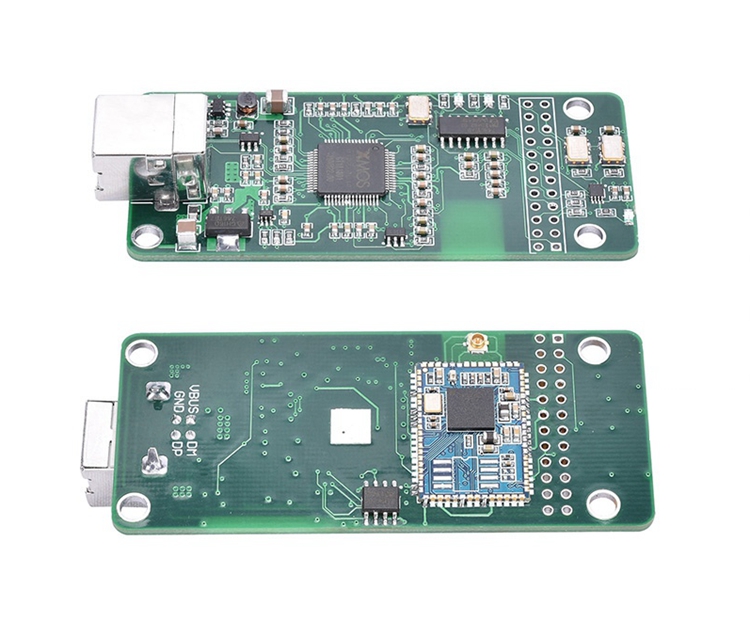

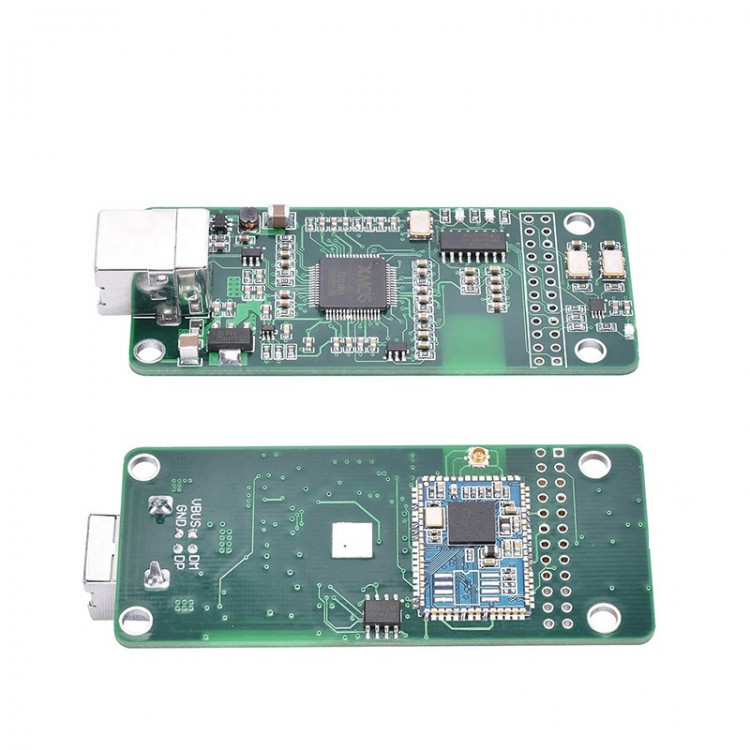

Integrated USB Daughter Card XMOS XU208 USB & CSR8675 Bluetooth I2S COAX Output for DSD Bluetooth 5.0
Description:
Our self-developed integrated USB daughter card combines XMOS XU208 USB with CSR8675 Bluetooth. It is built with I2S, COAX outputs, and parts to control the switch between on-board XMOS and Bluetooth. With these efforts, it is convenient to upgrade the Bluetooth of your original DAC. As to Bluetooth/XMOS automatic switching, the first time to link and switch is a little longer, but it is quite easy to operate. It can be used to improve the majority of DAC.
Its installation size is compatible with Amanero. And its IS2 pin sequential definition details as pictures show.
Download XMOS4.12 Drive:
http://pan.baidu.com/s/1ED9iIifQl0v8x5d7SgZvaw
Code: 8msi
Technical Parameters:
- PCM:
44.1KHz, 48KHz, 88.2KHz, 96KHz,
176.4KHz, 192KHz, 352.8KHz, 384KHz, 768KHz
[Where I2S out supports all sampling rates, S/PDIF supports 192KHz]
- DSD:
2.8MHz (DSD64) - DoP, native
5.6 MHz (DSD128) - DoP, native
11.2 MHz (DSD256) - DoP, native
22.4 MHz (DSD512) - DoP, native
[Where I2S out supports all DSD formats, S/PDIF supports DSD64 DOP mode]
- Bit Width:
Up to 32 bit over I2S output
Up to 24 bit over S/PDIF
System Compatibility:
1. For Windows 7, Windows 8, Windows 10; 32/64 bit, you need to install a dedicated driver.
2. For Native MacOS 10.6 and later, please use the original driver in the system.
3. For Native Linux with UAC2 compliant kernel, please use the system's own driver (Tested on Ubuntu and Daphile systems, based on INTEL X86 platform)
4. For Android OS 4.2 and above, your device is needed to support OTG function. Generally speaking, it is suitable for Android 5.0 system by default. As to the version bellow 5.0, please use it with a dedicated player.
Features:
1. Military-grade 4-layer PCB board
2. Support coaxial DSD (DOP) 128 output
3. EPROM upgradeable firmware memory supports online firmware upgrading
4. Ultra-high precision femtosecond clock crystal
5. User-friendly power supply mode, supporting USB bus power supply or external independent power supply
Package Included:
- 1 x XMOS USB Daughter Card
