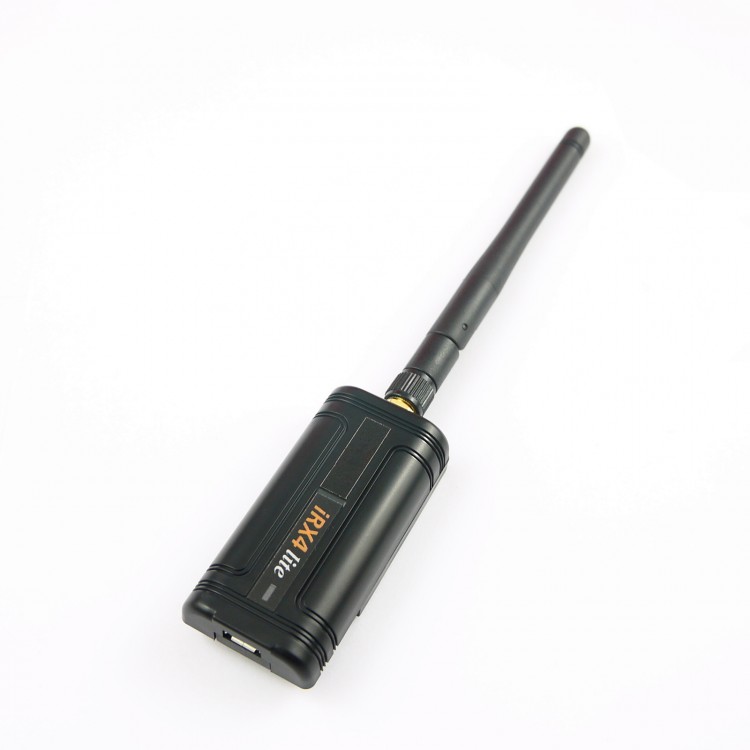

IRX4 Lite 2.4G Transmitter Module 4-In-1 Multi-protocol TX Module with Antenna for FrSky DSM2 SFHSS
Download materials:
http://pan.baidu.com/s/1bokfOjt
Attention:
We only TX module hardware. Its software is based on open source firmware, which is burned by us, and users should bear the risk of using it.
Overview:
This four-in-one tuner module integrates four RF chips, CC2500, NRF24L01, A7105, and CYRF6936, into one circuit board. It can identify the PPM signal output by a remote control, and then convert it into the corresponding remote control protocol to control the receiver or the aircraft. Currently, it supports protocols for Walkera DEVO, HorizonHobby DSM2, Flysky, Esky, FrSky, Weili, Hubsan, HISKY, and Futaba SFHSS Assan.
The module can more flexibly and conveniently control four different brands of quad-copters, helicopters and fixed-wing aircraft. Since you continue to use the familiar remote control, the operation feel and flight experience are also better.
Working Parameters:
- Working voltage: 5-9V
- Working current: <=150mA
- Working frequency: 2.4G ISM band
- RF power: +22dBm
- Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
- Net weight: 32g (with antenna)
Package Included:
- 1 x TX Module
- 1 x Antenna
Check more information here:
https://github.com/pascallanger/DIY-Multiprotocol-TX-Module

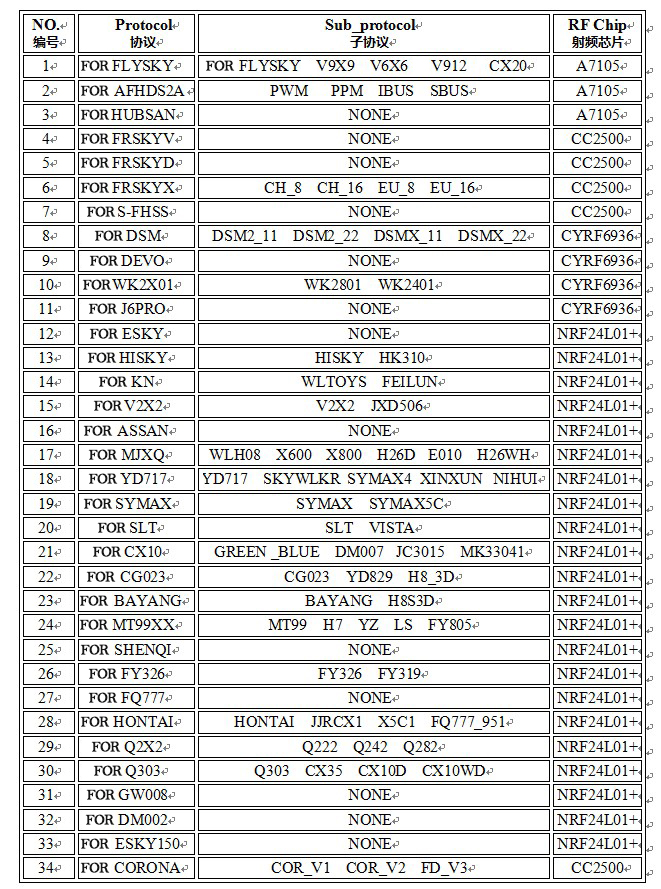

The following protocols are currently included, and more are still under development.
