Description:

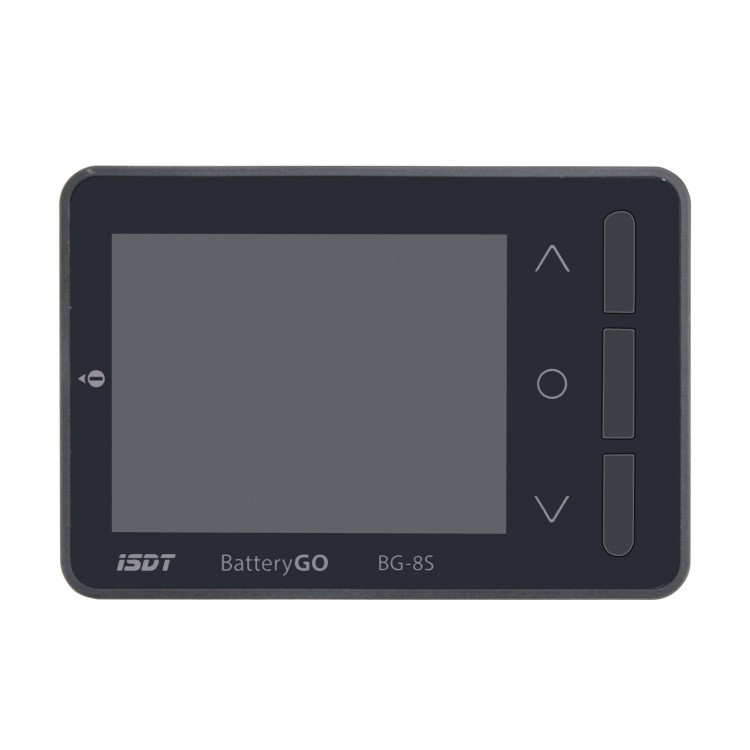

- 260,000 color display visible under strong sunlight. Exquisite and powerful BG-8S smart battery checker fully support BattGO technology. Very smart choice for rc fans.
Feature:
- 260,000 color display visible under strong sunlight
- Cooperating with BattGO technology, only with XT60i connected and you can get full knowledge on detail parameters on your battery

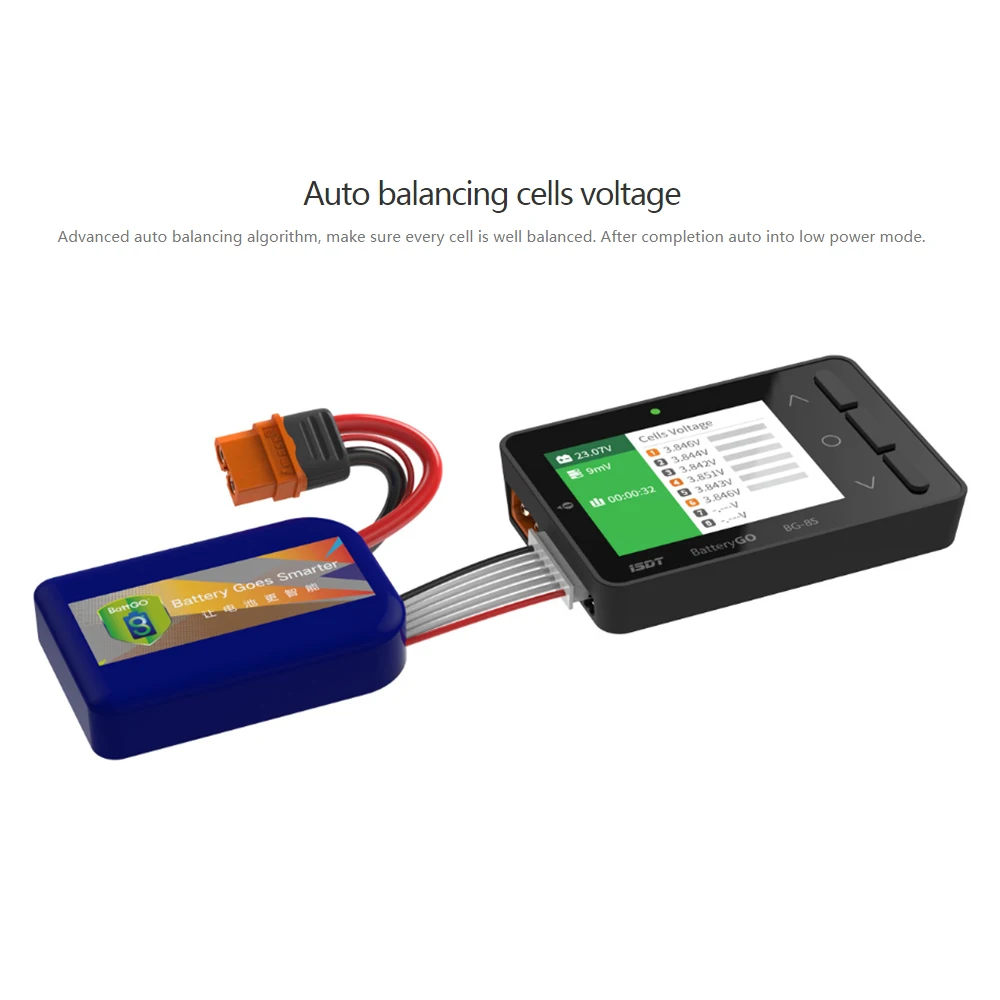

- Advanced auto balancing algorithm, make sure every cell is well balanced
- Support Qualcomm Q C 2.0/3.0, compatible with BC1.2 and for Apple devices
- BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc

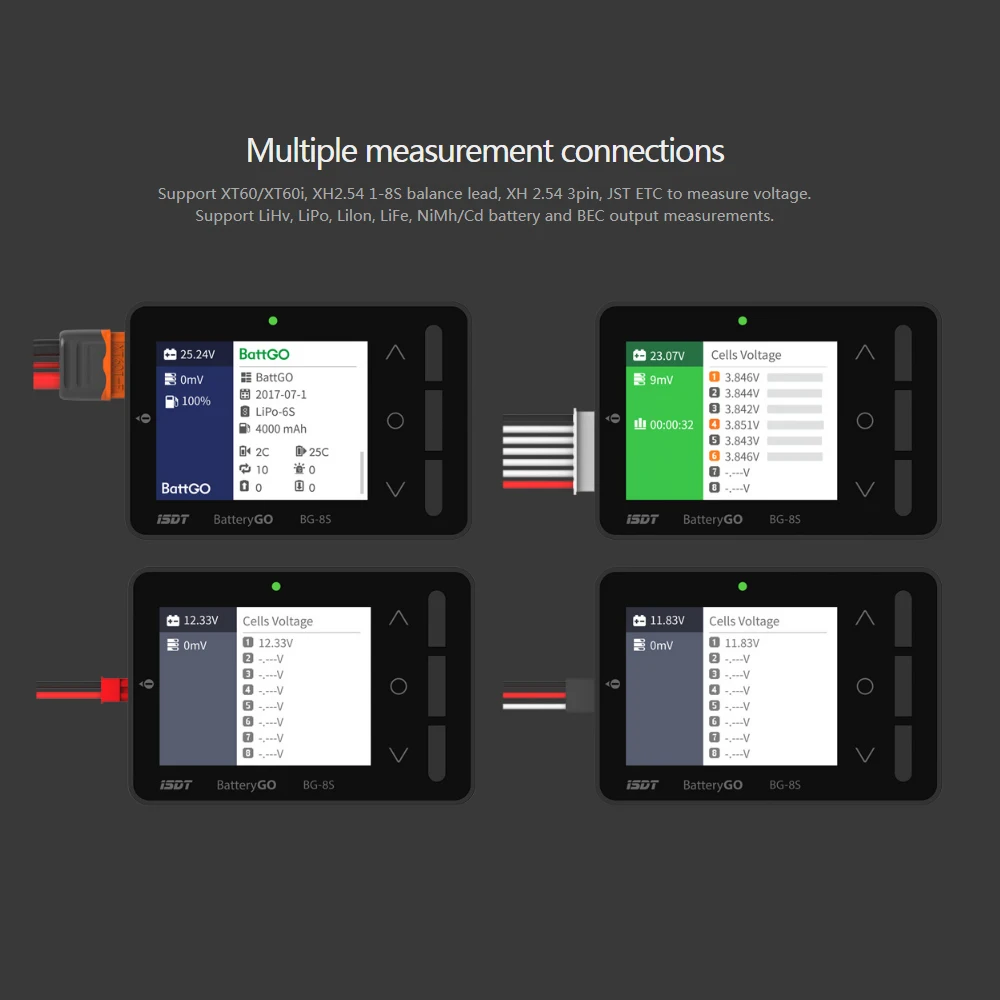

- Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements
Specifications:
- Brand: iSDT
- Item Model: BG-8S
- Working voltage: 5.0V-36V
- Input voltage 1s: 0.8V-15V
- Input voltage 2-8S: 0.8V-4.8V
- Battery cells: 1-8S
- Voltage measurement accuracy: ±0.005V @ 4.2V
- Balancing cells accuracy: < 0.005V
- Support USB charging: Q C 2.0 / 3.0, BC1.2, Maximum output 12V/2A
- Supported Batt. Type: LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
- Display: 2.4〃320 * 240 260,000 color IPS LCD
- Operating Temperature: 0-40°
- Working Humidity: 10%-90%RH (noncondensing)
- Storage Temperature: -20-60°
- Storage Humidity: 5%-90%RH (noncondensing)
- Item Dimension: 80 * 55 * 19mm
- Item Weight: 59g
Package List
- Package size: 9 * 6.5 * 3cm / 3.5 * 2.6 * 1.2in
- Package weight: 96g / 3.4oz
- Gift box package
