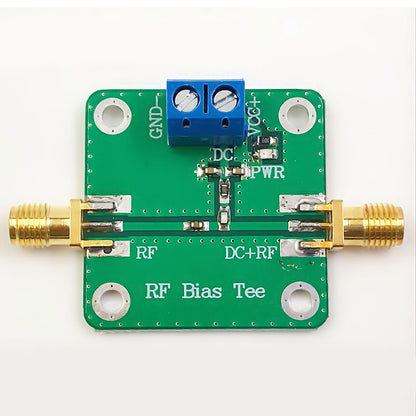

10-6000MHz Bias Tee DC Blocker RF Microwave DC Bias DC Feed For Active Antenna Wideband Amplifier

10-6000MHz Bias Tee DC Blocker RF Microwave DC Bias DC Feed For Active Antenna Wideband Amplifier

Applications:
- RF power supply of active antenna
- DC blocking of output of wideband amplifier
- Communication data is injected through RF end

Parameters:
- Frequency Range: 10-6000MHz
- Insertion Loss: 0.3dB@512MHz; 0.45dB@1575MHz
- Maximum Voltage: 50V
- Maximum Current: 500mA
- RF Connector: SMA-K (external thread inner hole)
- System Impedance: 50 ohms

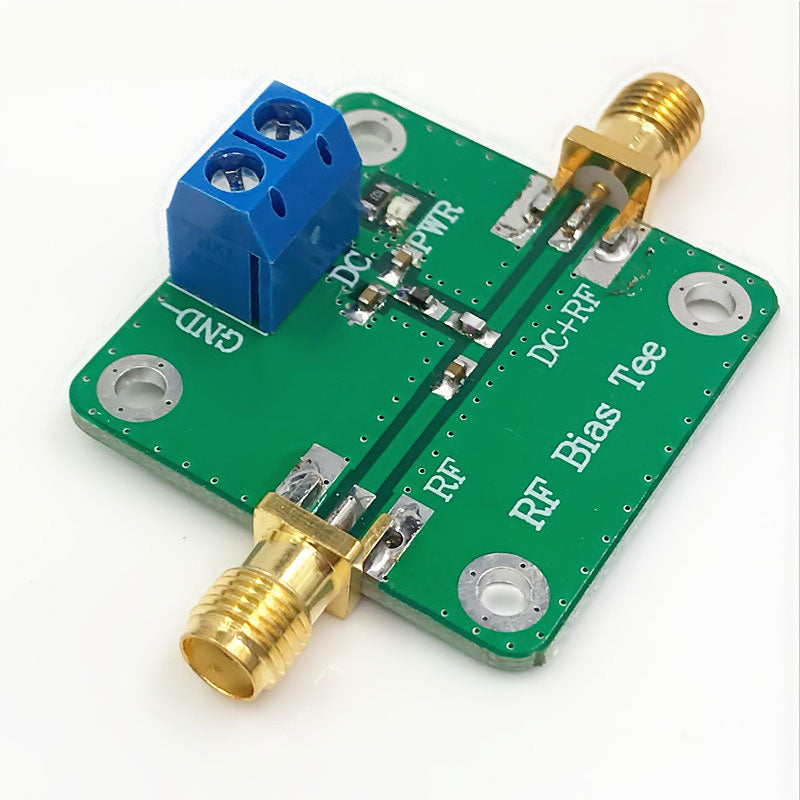

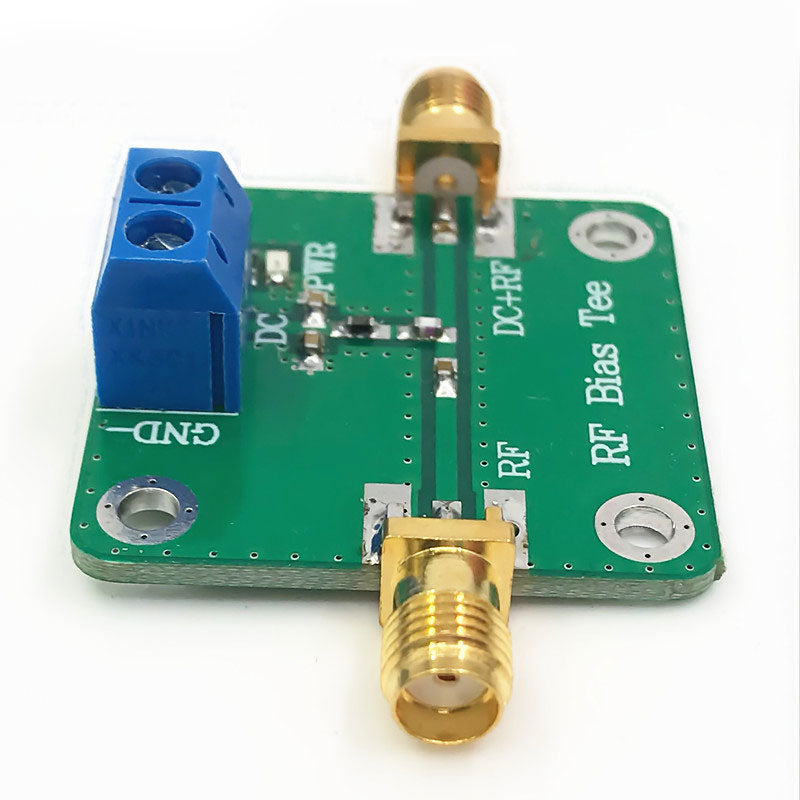

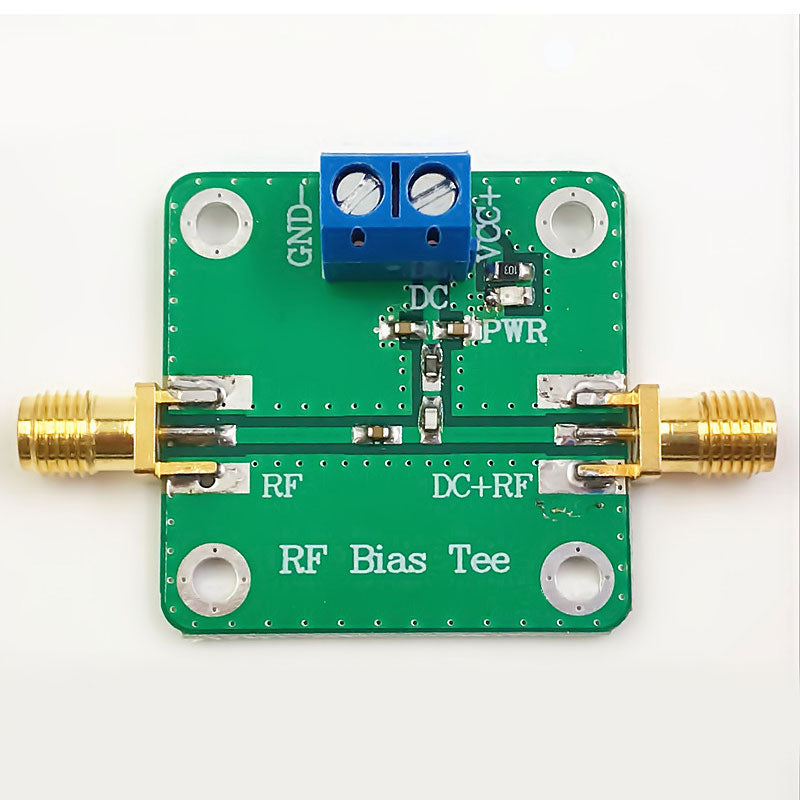

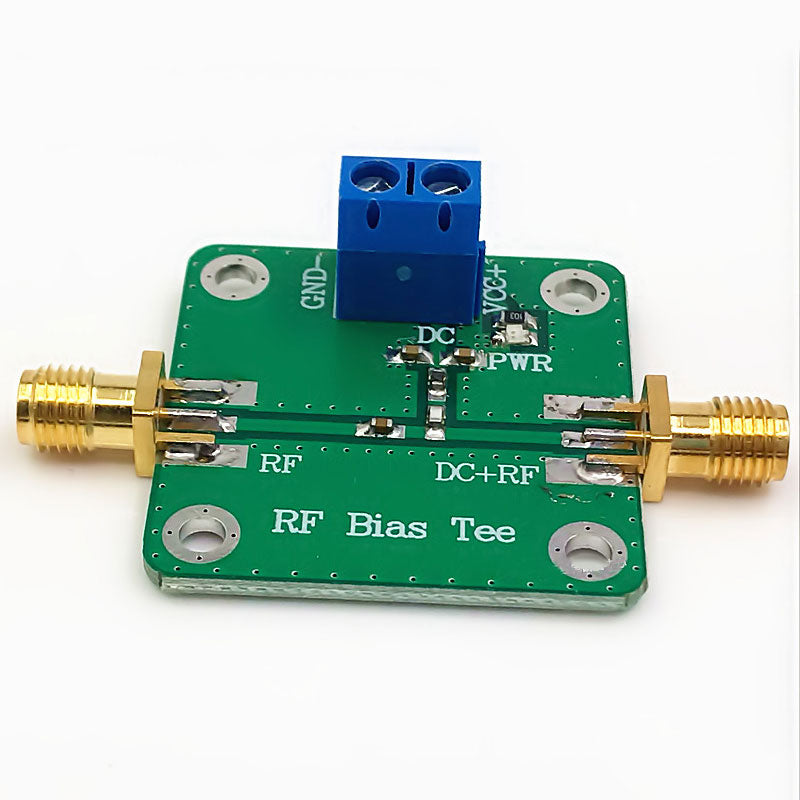

Wiring:
- DC: To external DC power supply
- RF: RF signal terminal (this port can only transmit RF signals)
- RF + DC: RF DC bias (This port can transmit RF and DC bias)
- GND-: Common ground terminal for DC power supply
- VCC +: DC power supply terminal

Package Included:
- 1 x Bias Tee
