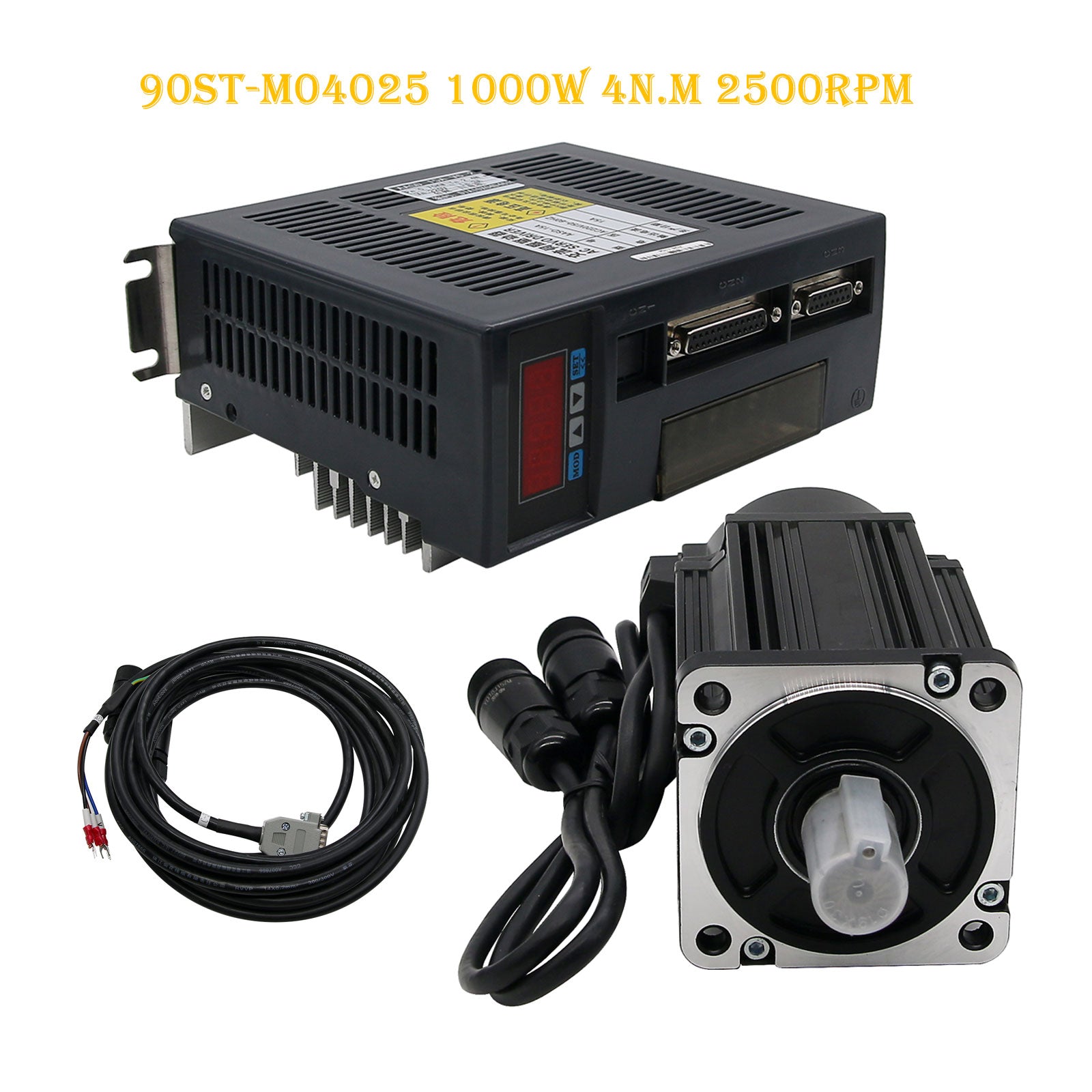

90ST-M04025 AC Servo Motor Kit 1000W 4N.M 2500RPM + Driver + Cables Servo Motor Kit

90ST-M04025 AC Servo Motor Kit 1000W 4N.M 2500RPM + Driver + Cables Servo Motor Kit

Package Included:

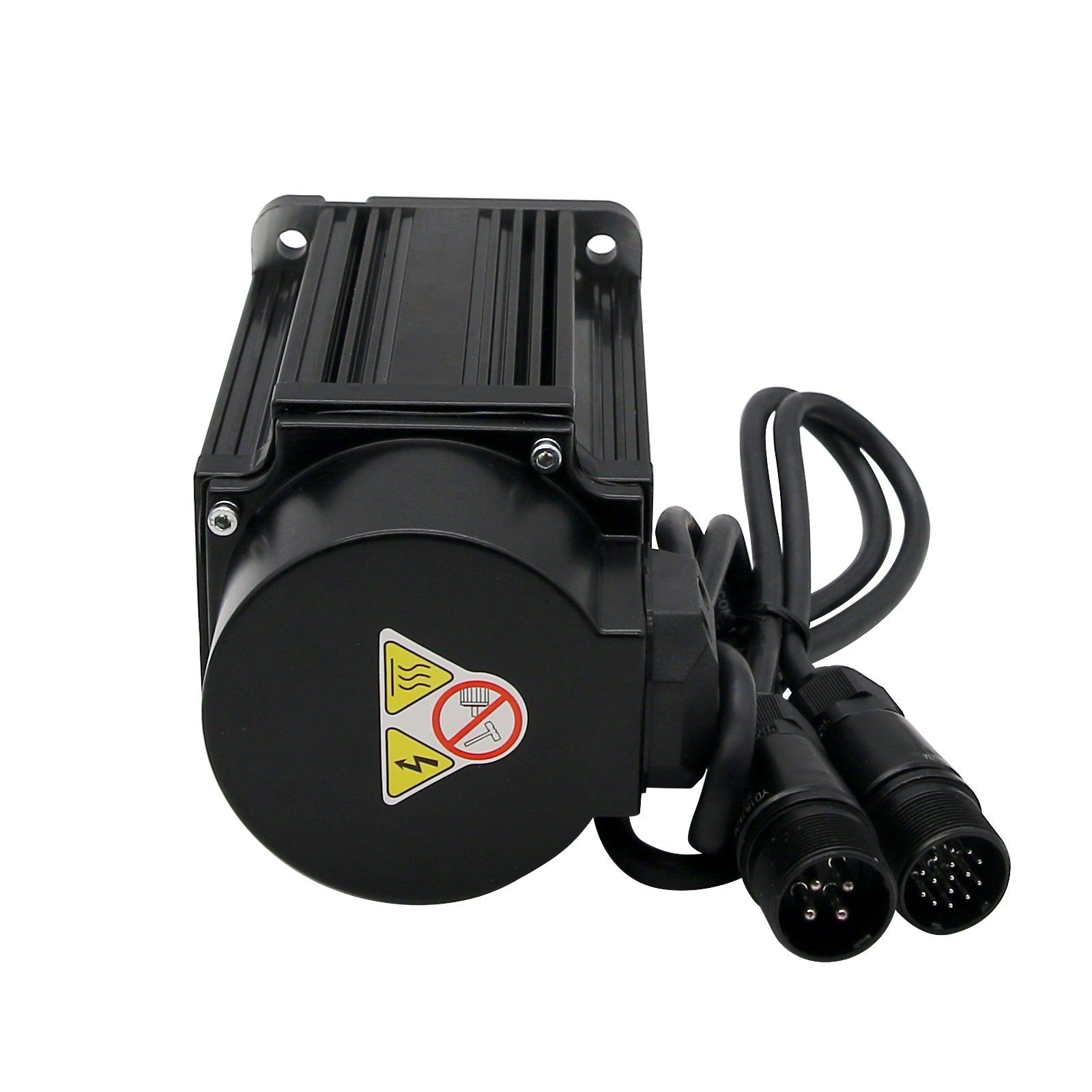

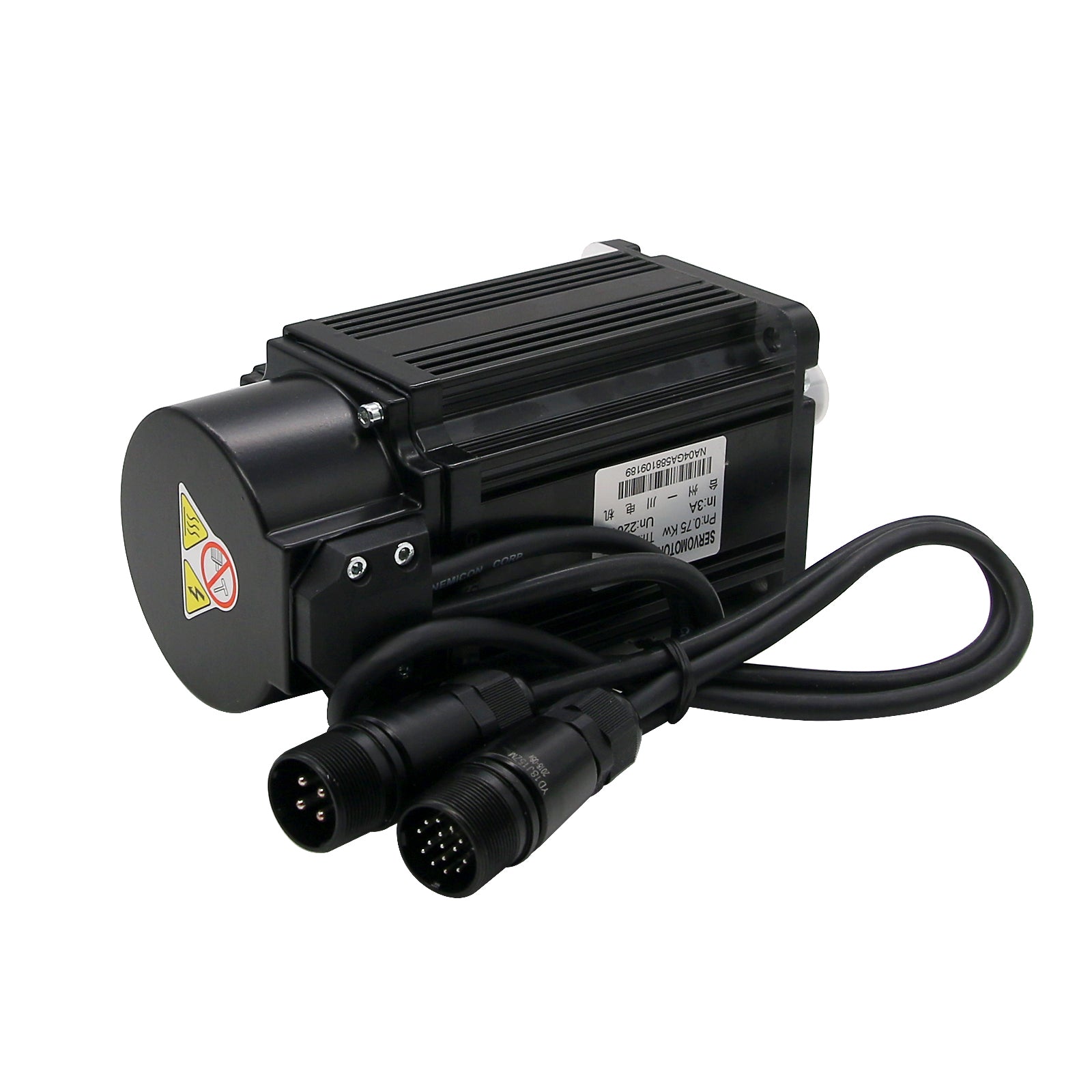

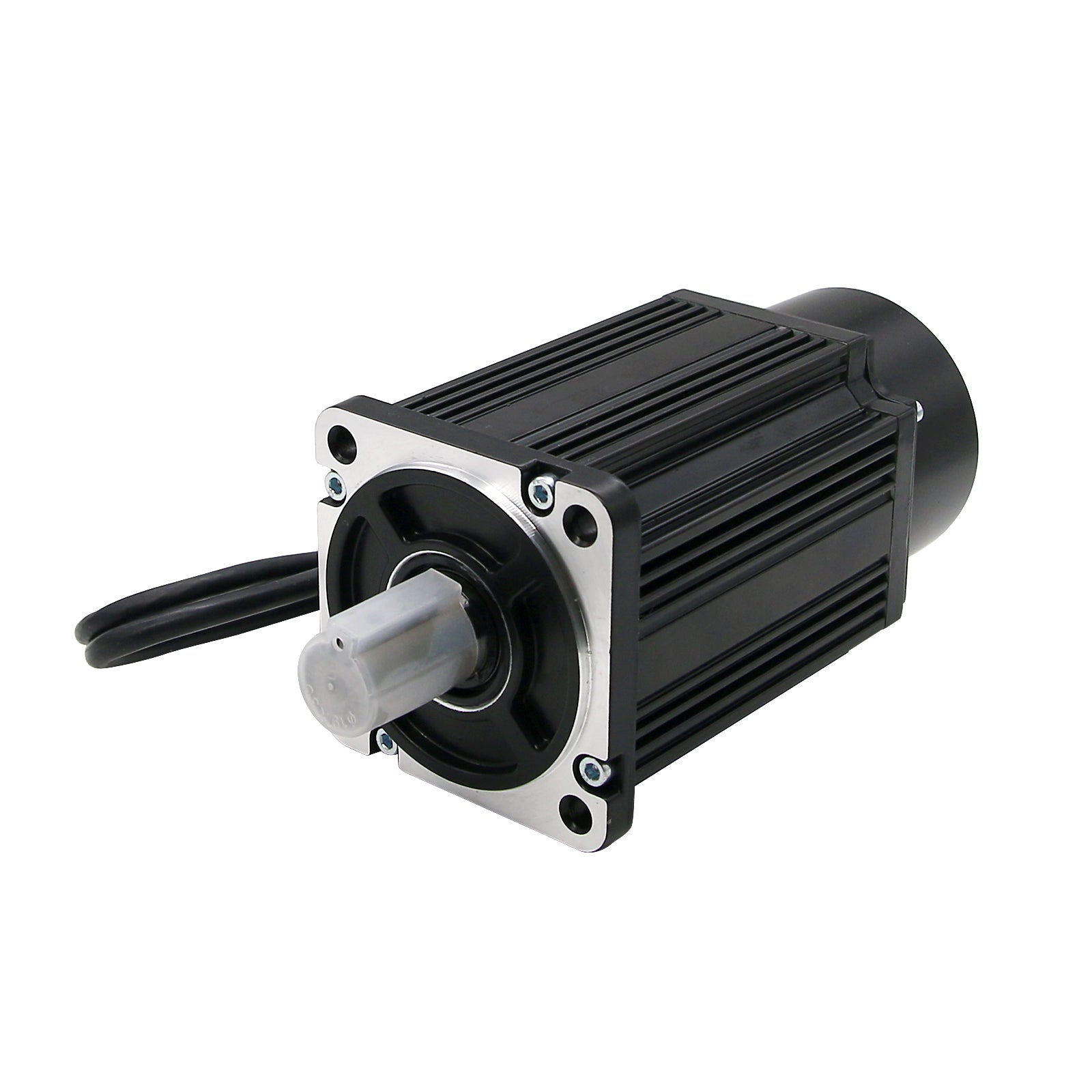

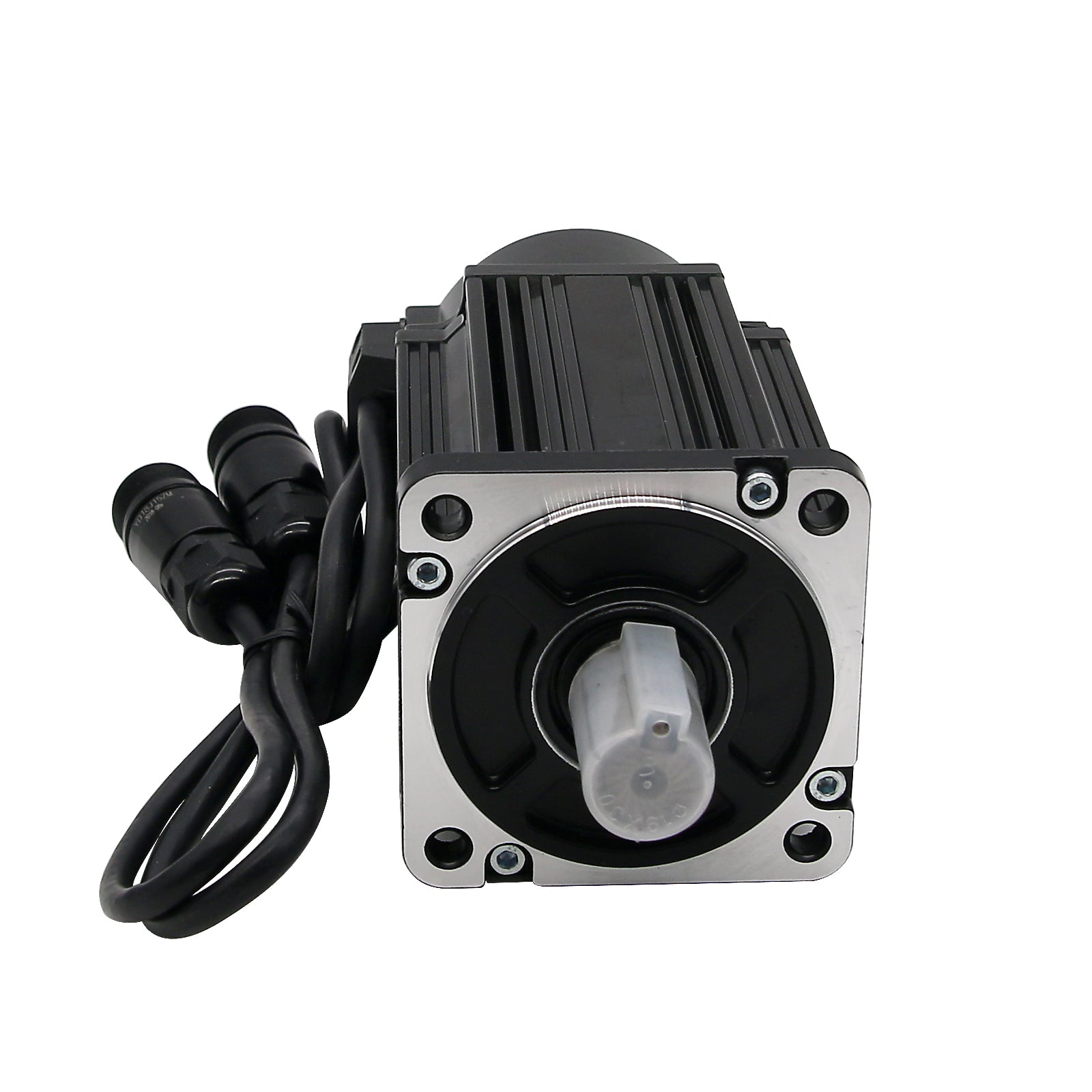

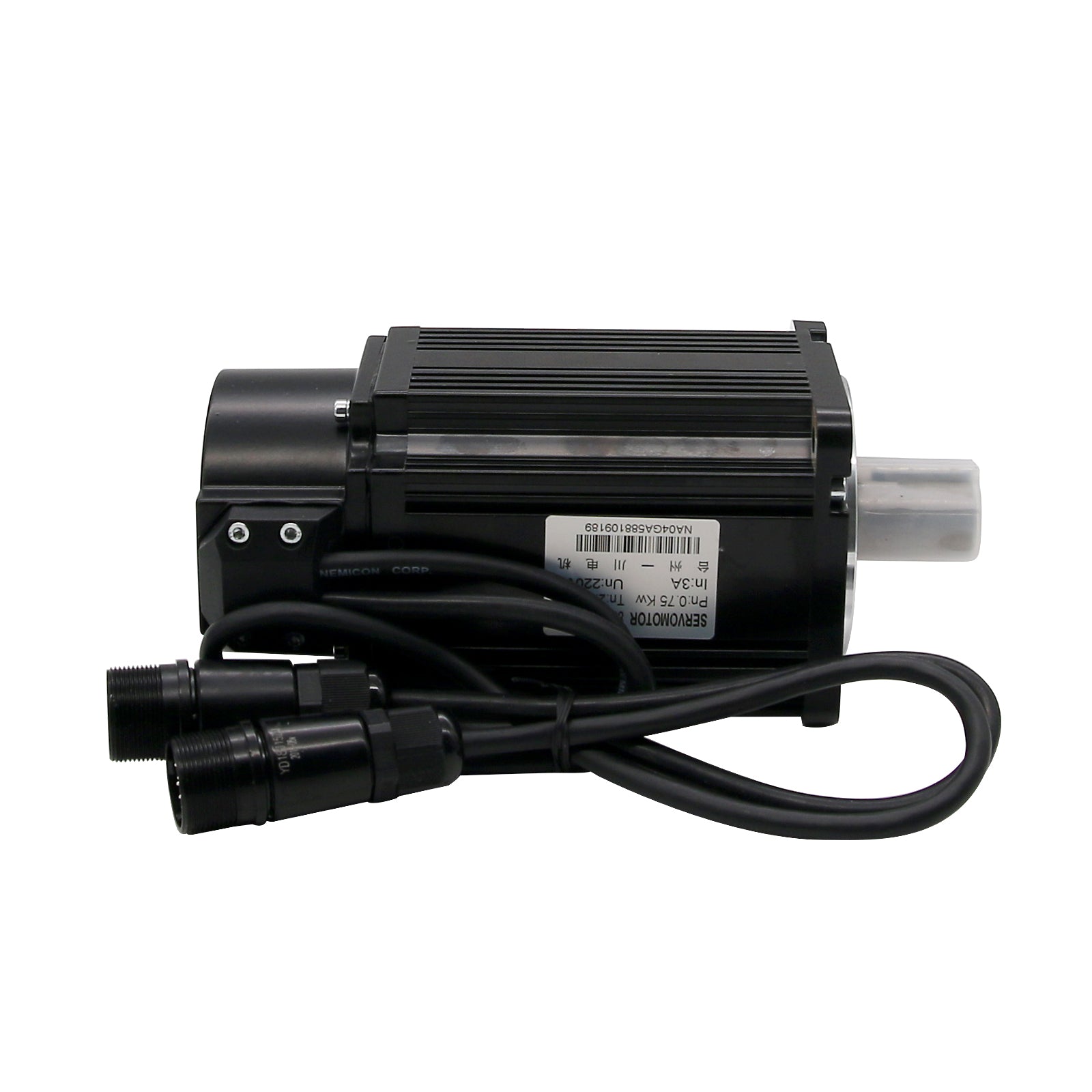

- 1 x Servo Motor

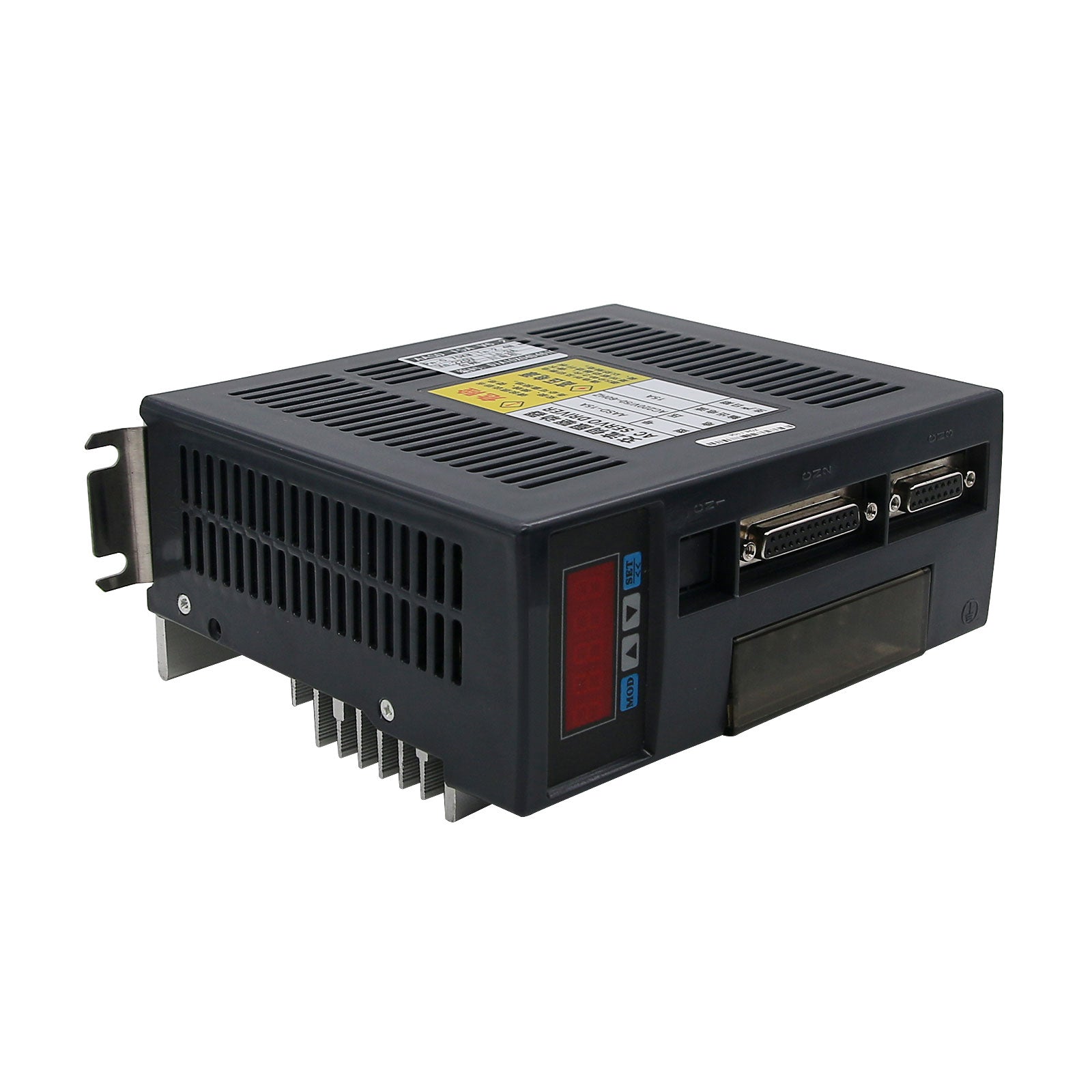

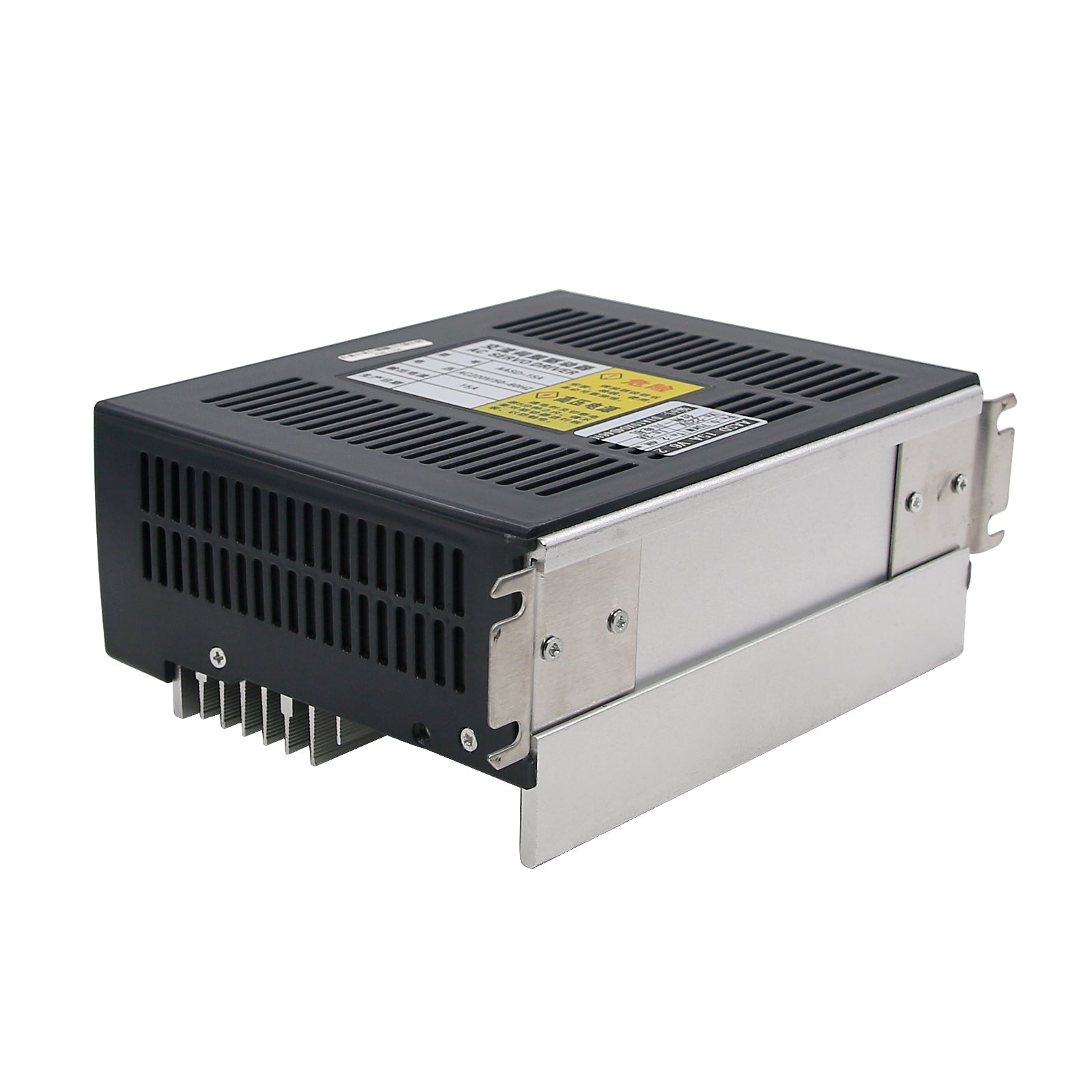

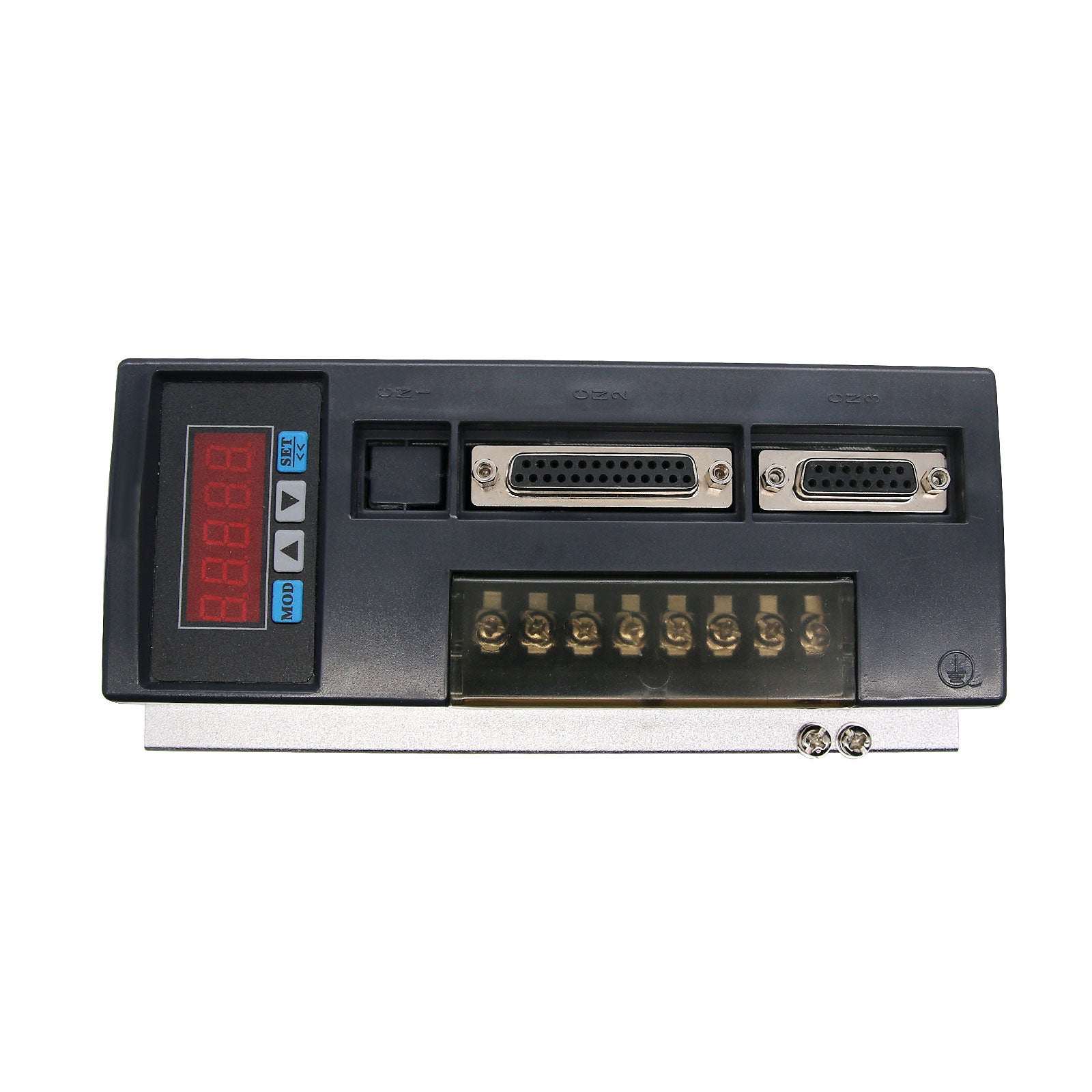

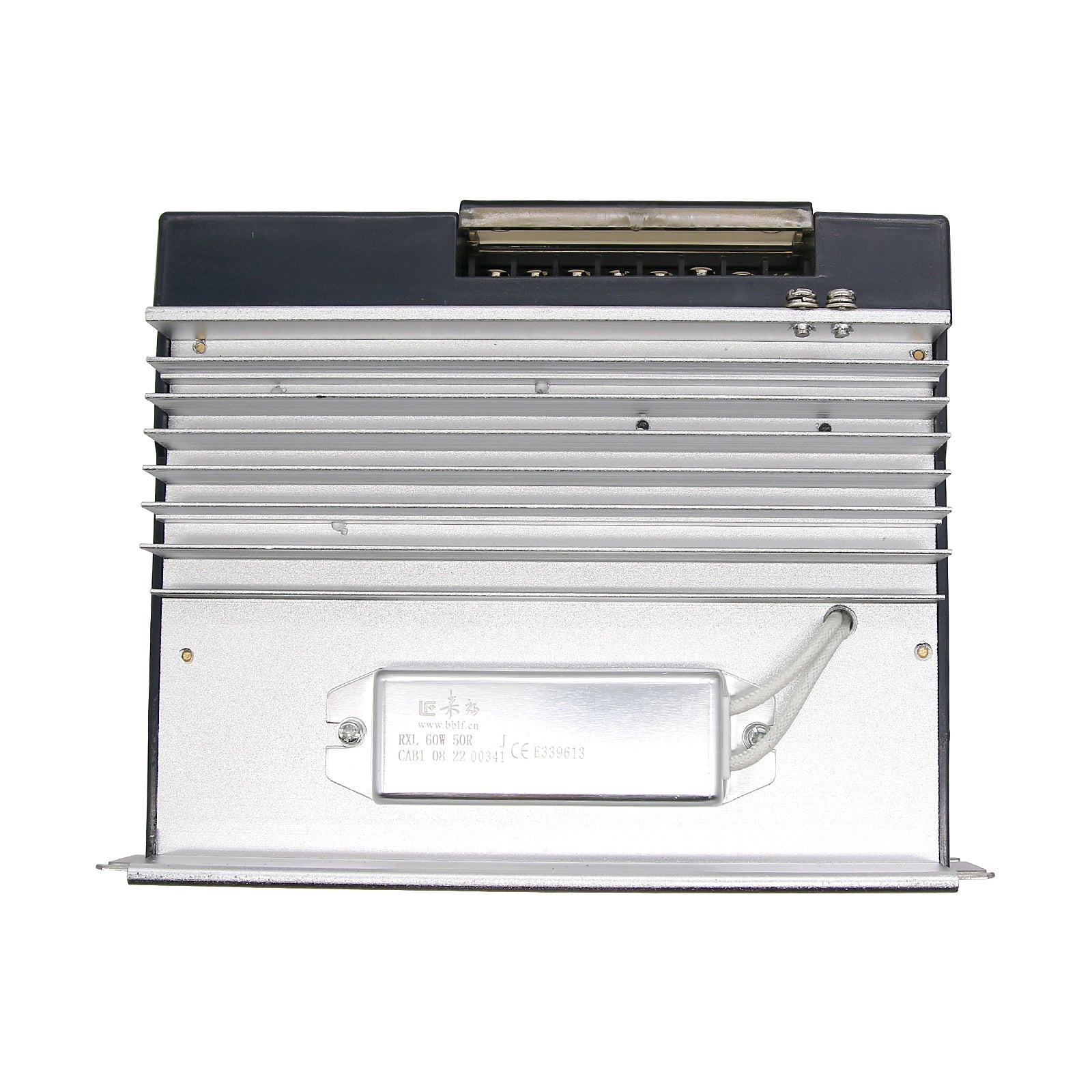

- 1 x Match Servo Driver

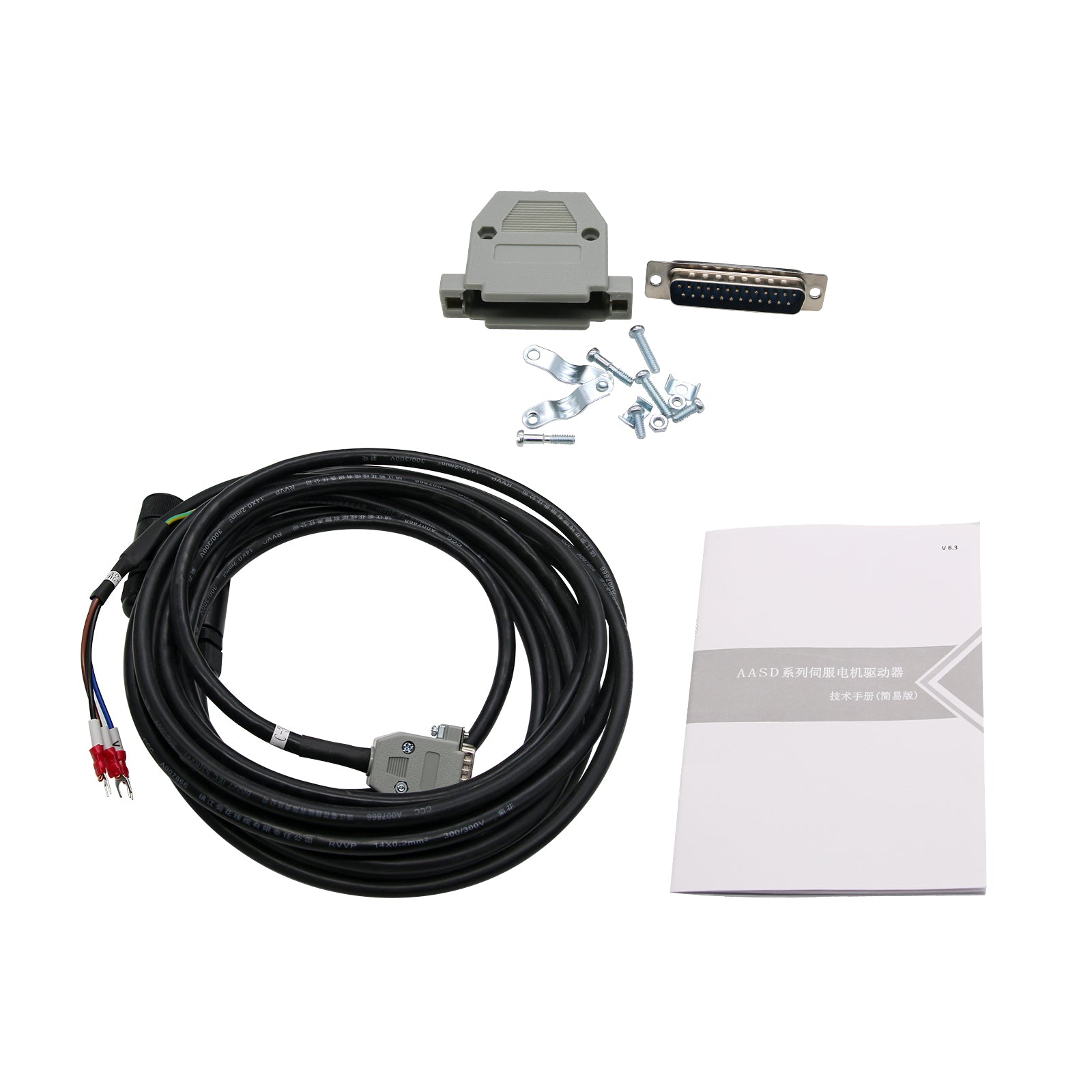

- 1 x 3Meter Motor Cable
- 1 x 3Meter Encoder Cable
- 1 x 25-core Parallel Connector

Main Specifications:
- Model Number: 90ST-M04025
- Rated power: 1.0KW
- Rated voltage: 220V
- Rated current: 4A
- Rated speed: 2500RPM
- Rated Torque: 4N.M
- Peak Torque: 12 N.m.
- Peak Current: 12A
- Voltage Constant: 60V/1000r/min
- Torque Coefficient: 1.0 N.m/A
- Torque Inertia: 3.7*10-4 Kg.m2
- Winding Resistance: 2.69 Ω
- Winding Inductance: 6.21mH
- Electrical Time Constant: 2.3ms
- Encoder Line Number: 2500
- Motor insulation class: Class B (130°C)
- Protection class: IP65
- Operating environment:
  Ambient temperature: -20°C to 50°C
  Relative humidity: <90 %( no condensation conditions)

Applications:
- CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.

Note:
Please contact us, if you need:
- Motor with Brake
- MODBUS communication function for RS-232 and RS-485
- The motor is adopted aviation plug: male, female plug for choice
