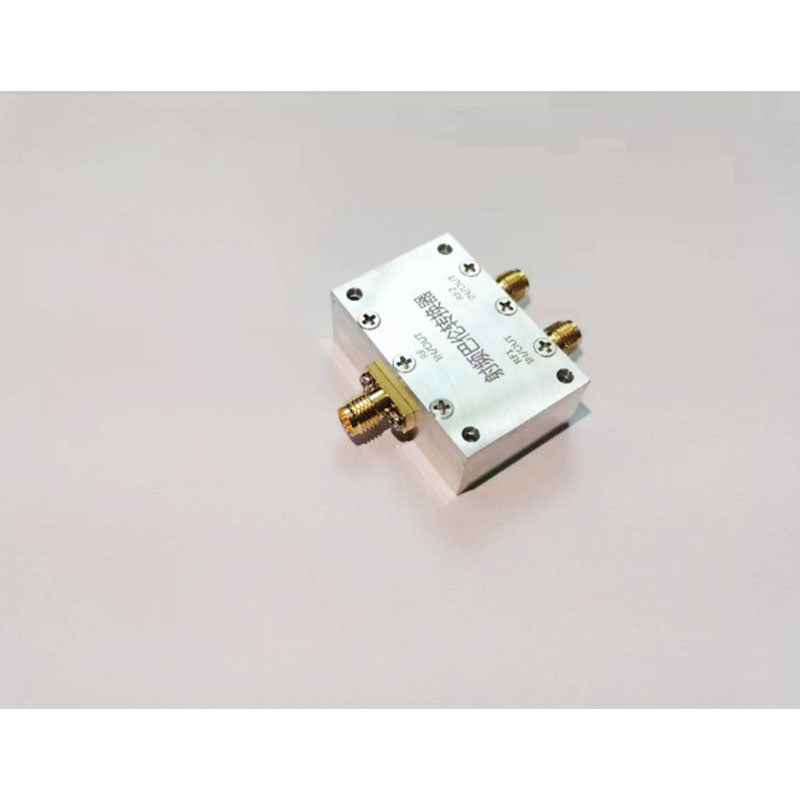

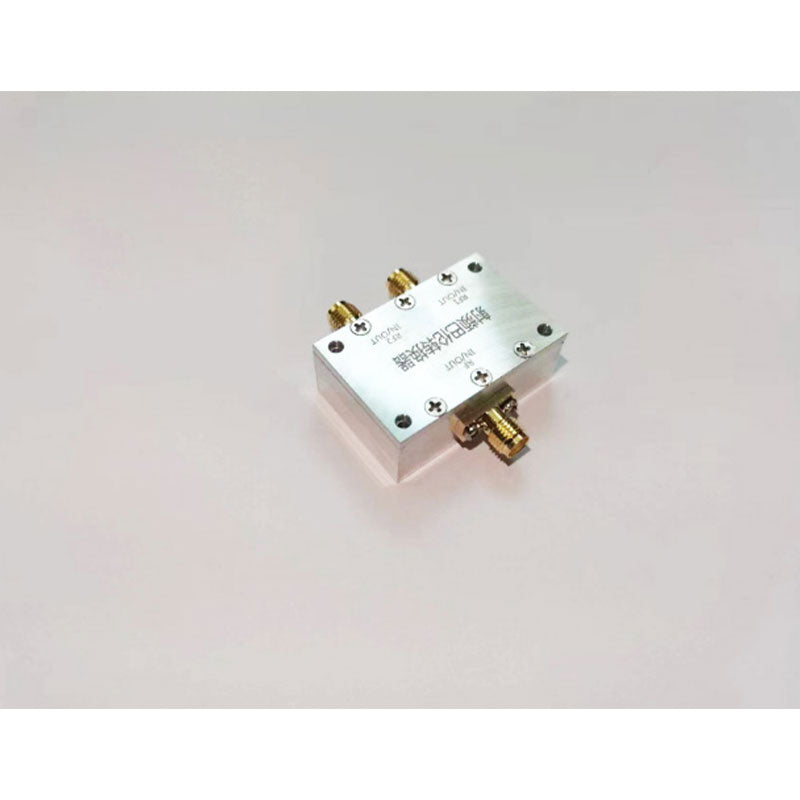

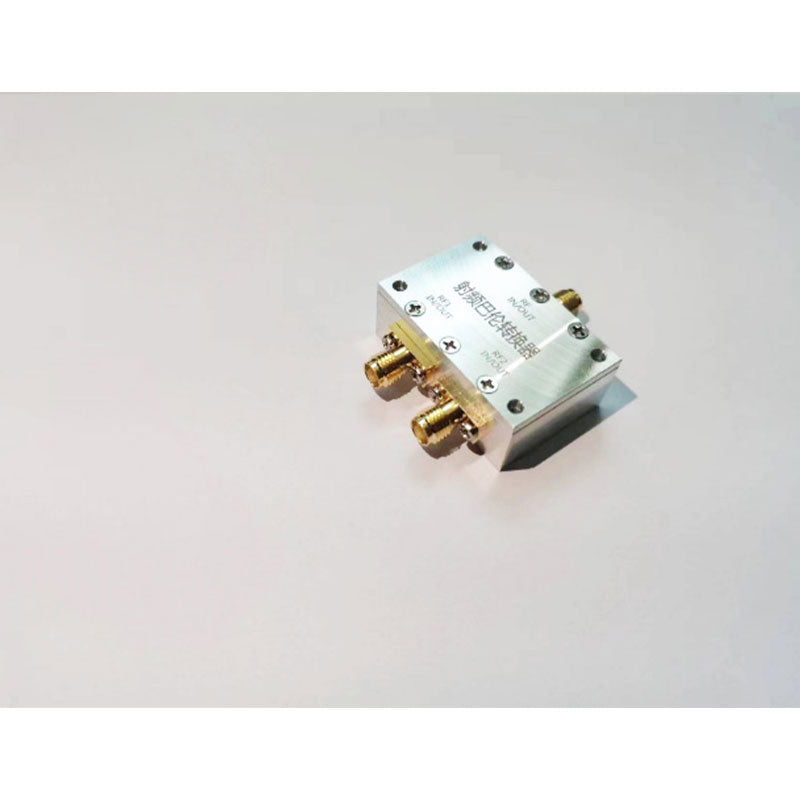

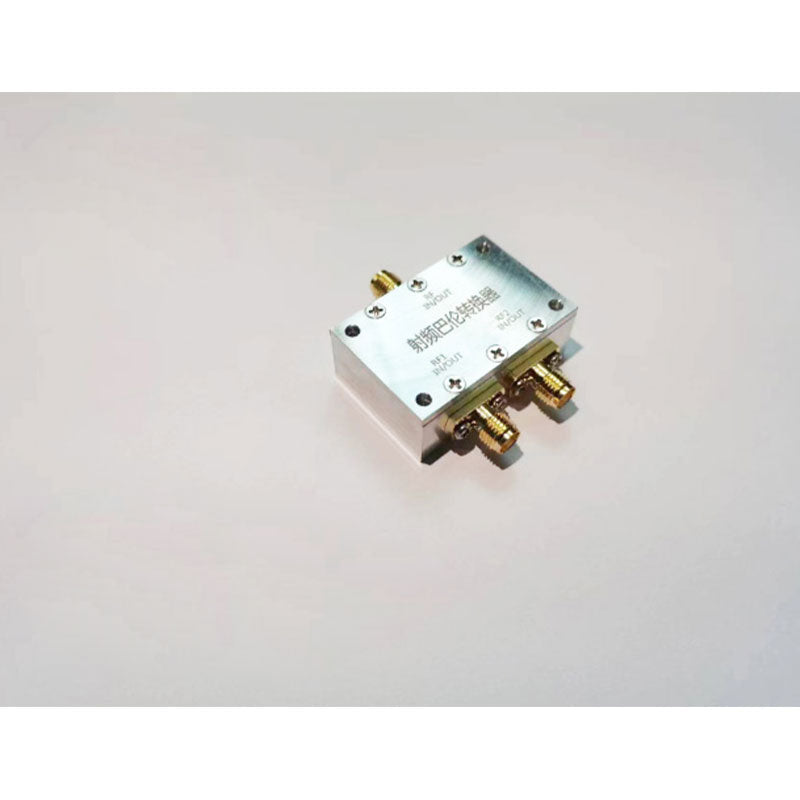

ADT1.5-1 RF Balun Adaptor 0.5-650MHz 1:1.5 Passive Balun Sinewave Square Wave Single-ended to Differential Conversion

ADT1.5-1 RF Balun Adaptor 0.5-650MHz 1:1.5 Passive Balun Sinewave Square Wave Single-ended to Differential Conversion

Module Function:
- Single-ended signal to differential signal
- Differential signal to single-ended signal

Specification:
- Model: QM-15ADT-0565
- Insertion loss: 4dB (typ.)
- Maximum input power: 30dBm (1W)
- Input impedance: 50ohms
- Balun type: 1:1.5
- Connector: SMA female connector

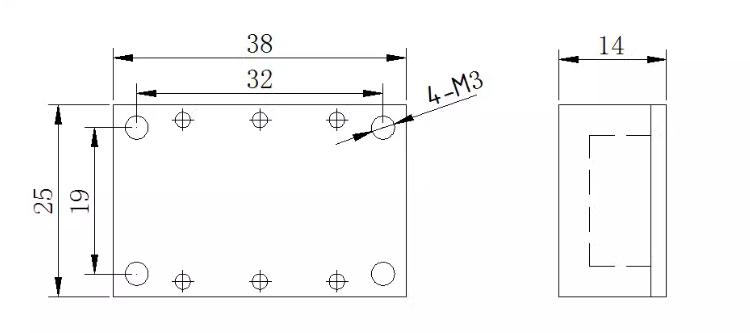

- Module size: 38 x 25 x 14mm (excluding the connector length)
- Working temperature: -25℃ ~ +85℃
- Storage temperature: -55℃ ~ +100℃

Package Included:
- 1 x Balun

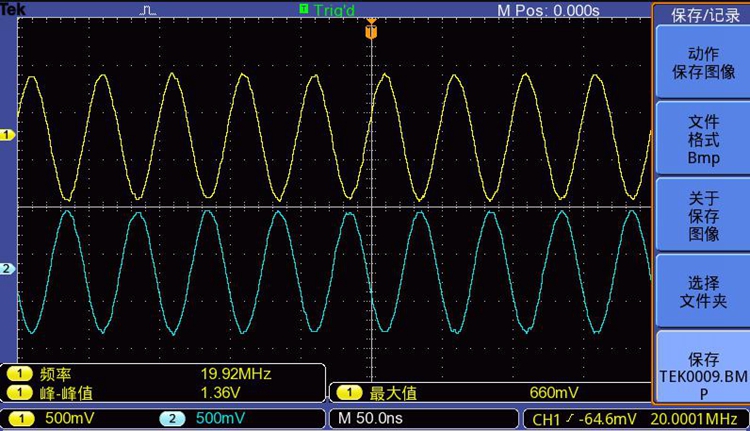

Actual Measurement Parameter:

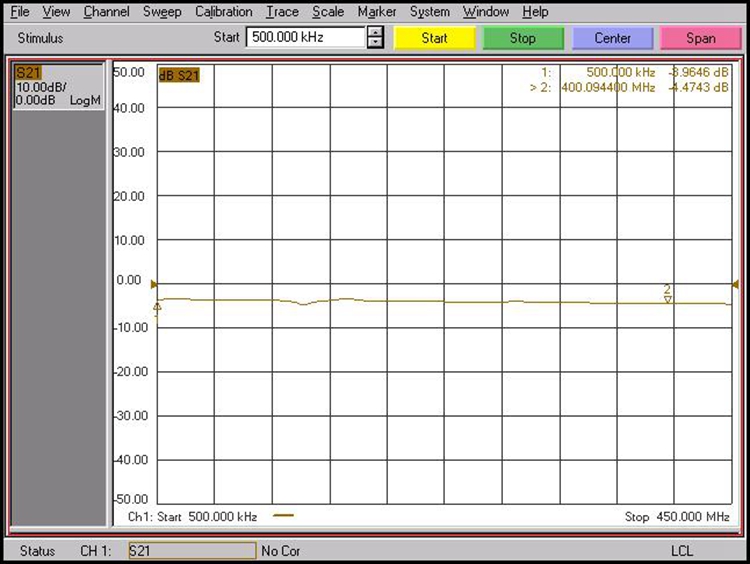

- Insertion loss test (open port requires additional load):

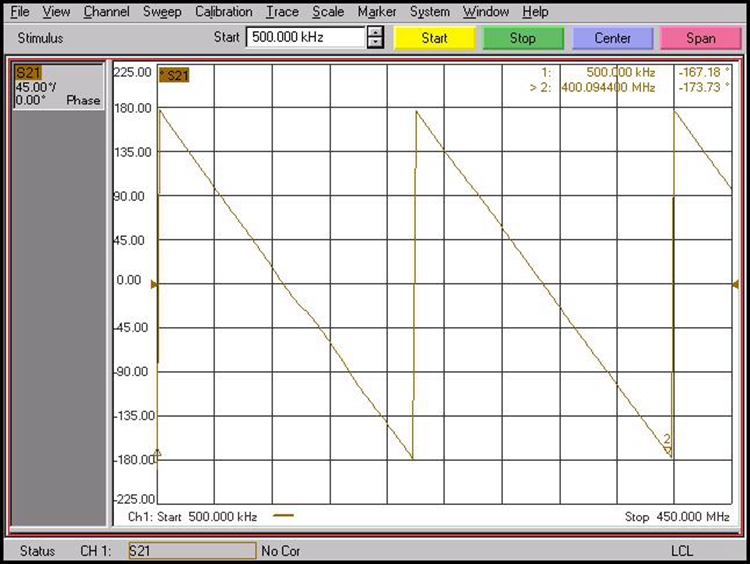

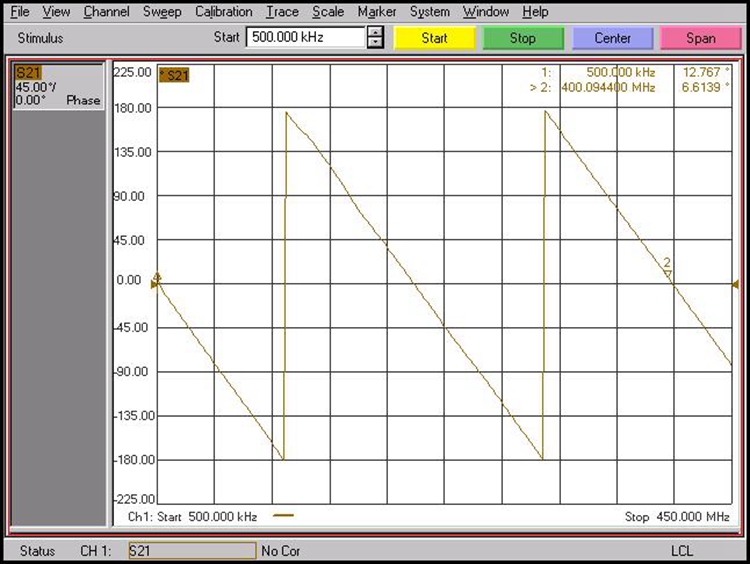

- Full band phase testing:
