Assembled SI4732 All Band Radio Receiver Support FM AM (MW And SW) SSB (LSB And USB) For DIY Uses

Assembled SI4732 All Band Radio Receiver Support FM AM (MW And SW) SSB (LSB And USB) For DIY Uses

Electrical parameters:
- Support USB charging
- Audio output supports headset 3.5MM
- Support 8-ohm speaker 1W output
- FM supports earphone antenna
- Antenna interface uses BNC
- The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible

Features of This Sketch:
1) FM, AM (MW and SW) and SSB (LSB and USB);
2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz;
3) 22 commercial and ham radio bands pre-configured;
4) BFO Control;
5) Frequency step switch (1, 5 and 10KHz).

Attention:
- If you want to modify the parameters, please refer to the actual product. Thank you!

You Will Get:

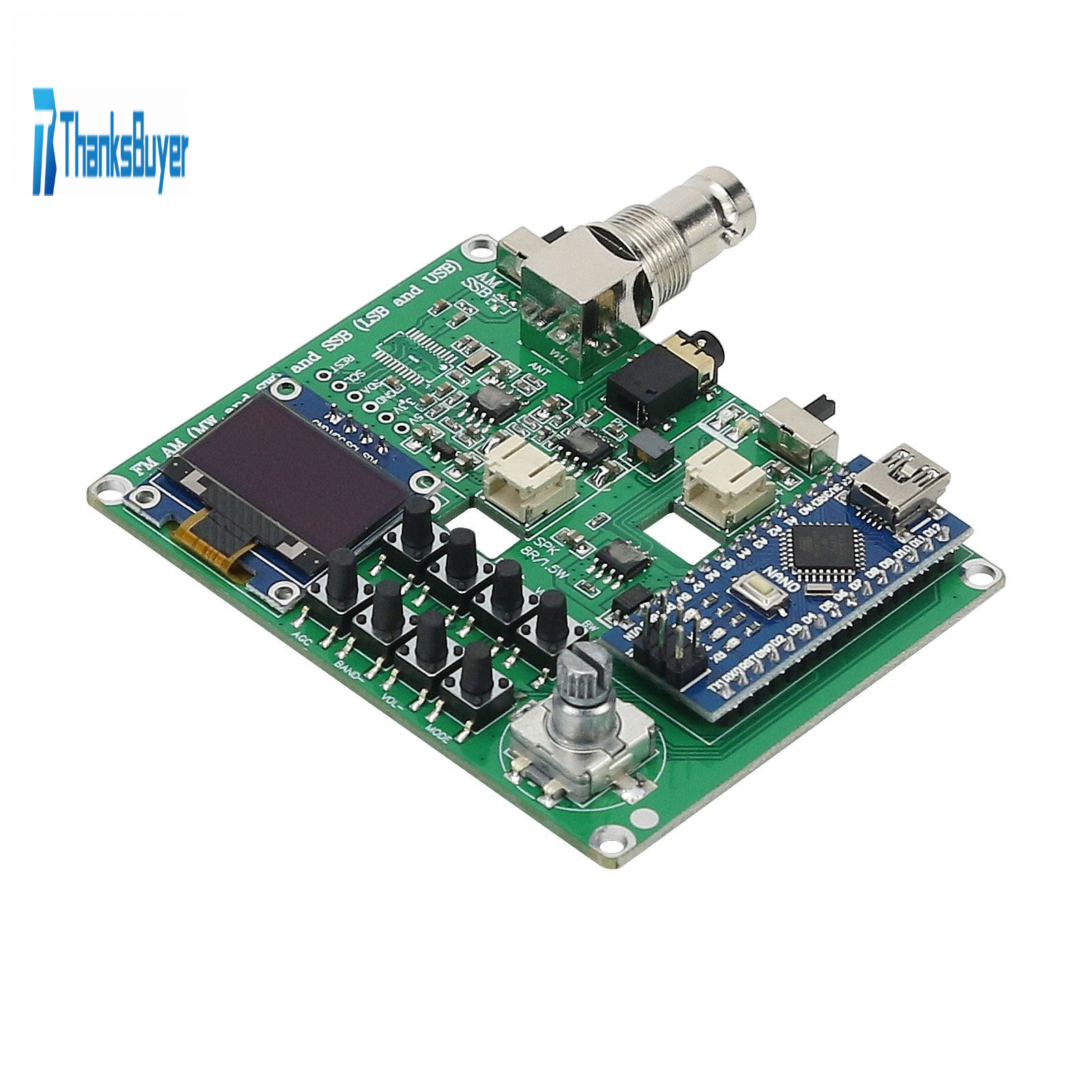

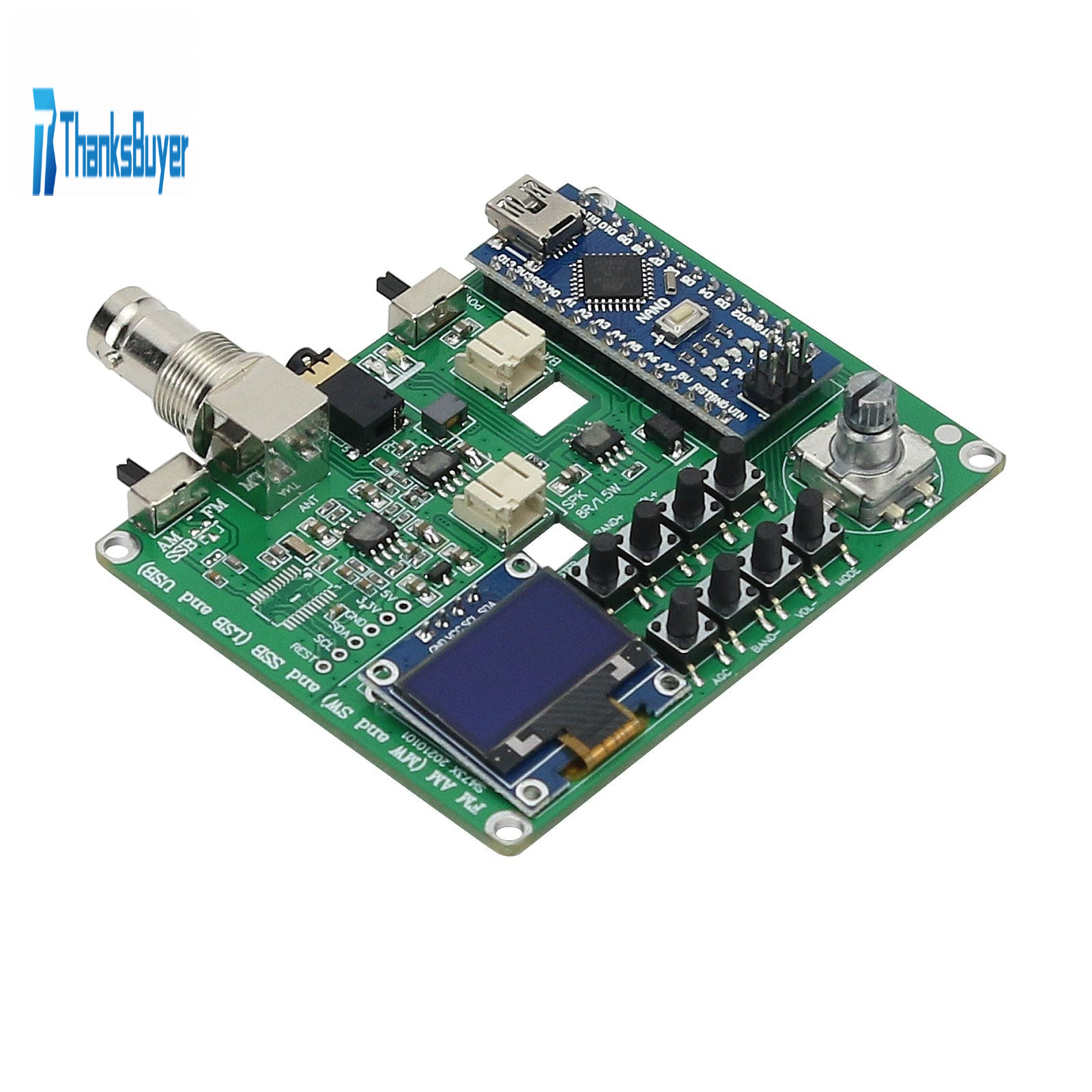

- Assembled host
- Battery cable
- Loudspeaker cable
- Antenna

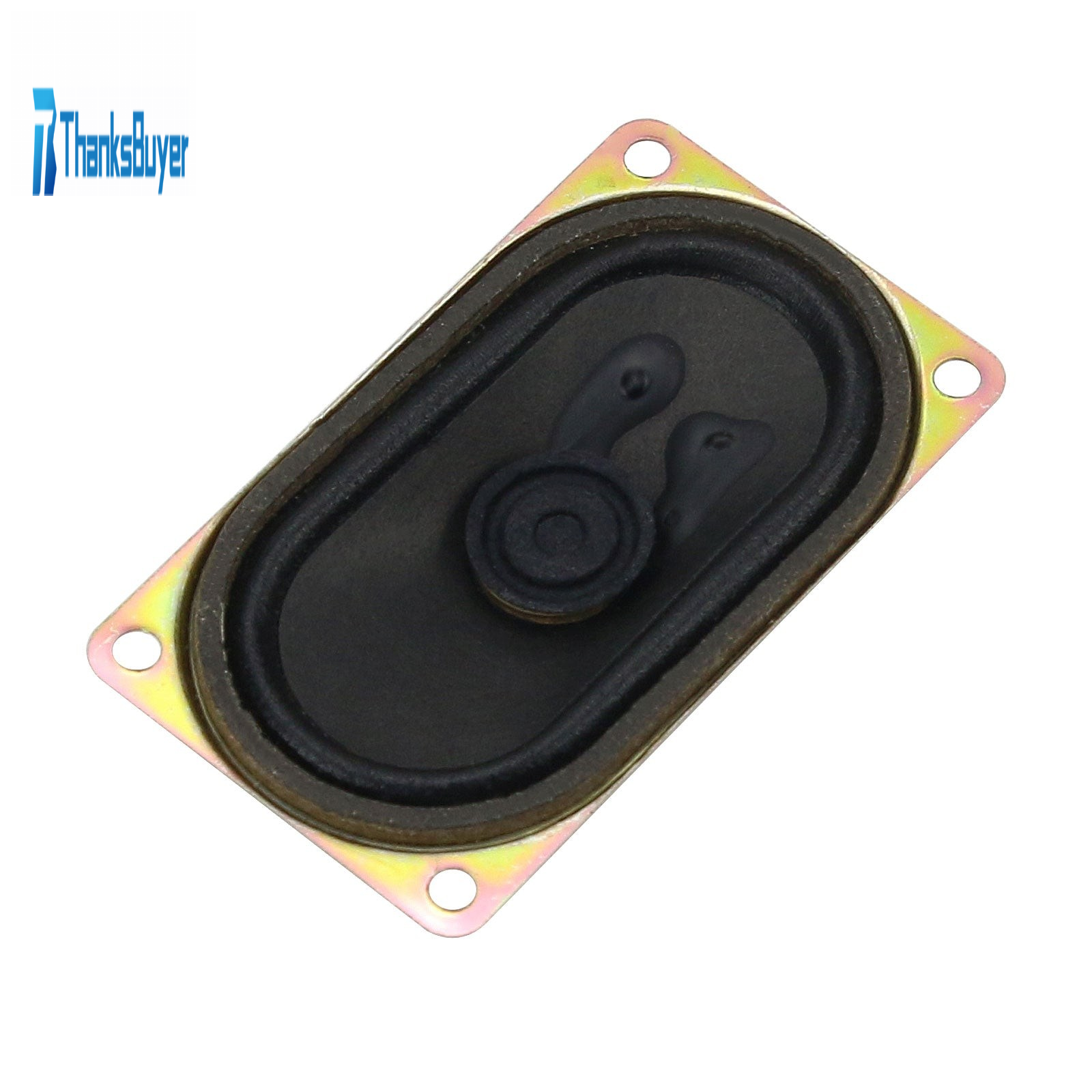

- Loudspeaker

Package Included:
- 1 x Set of Radio Receiver

Note:
- Battery is not included. It can be powered by a 3.6v or 3.7v lithium battery.
