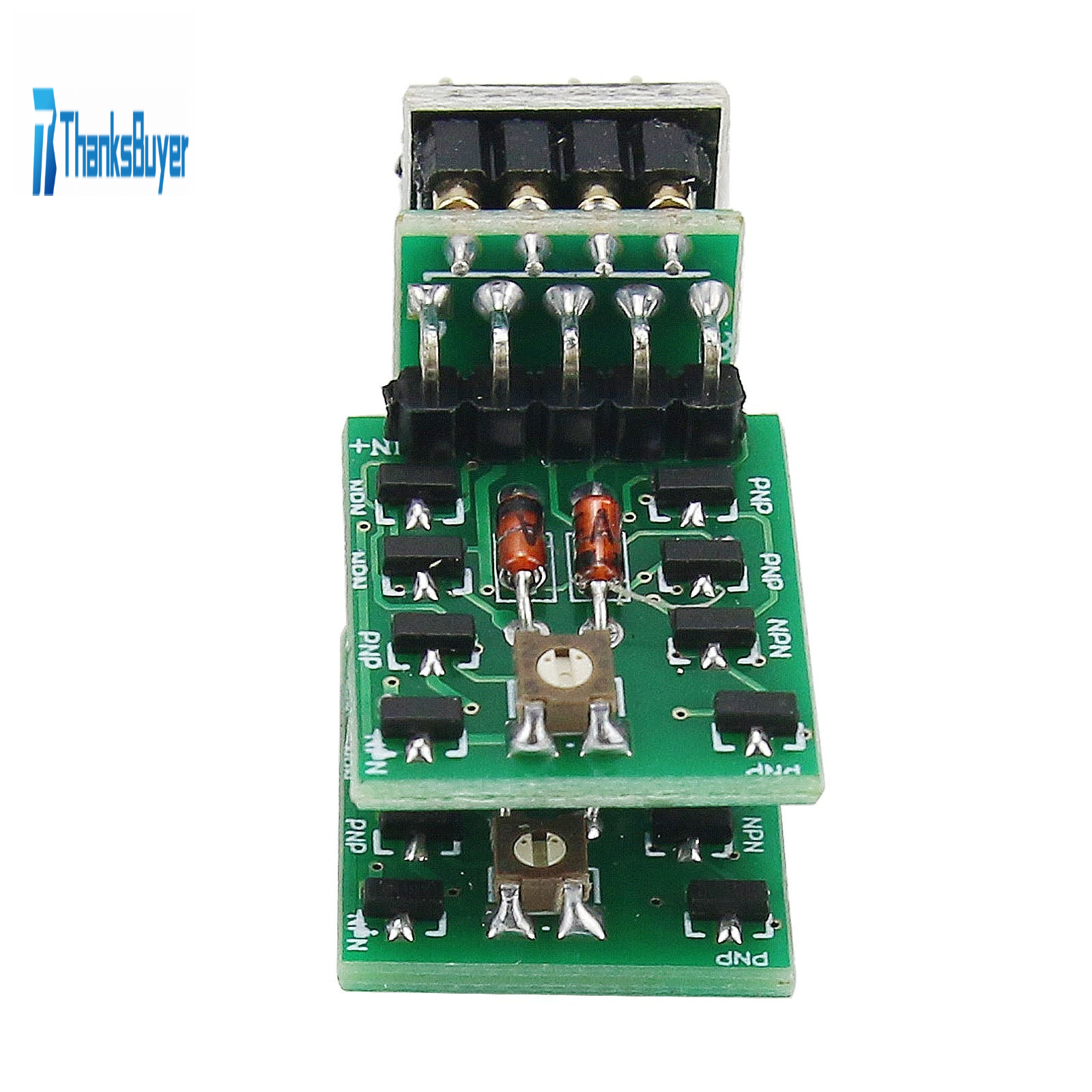

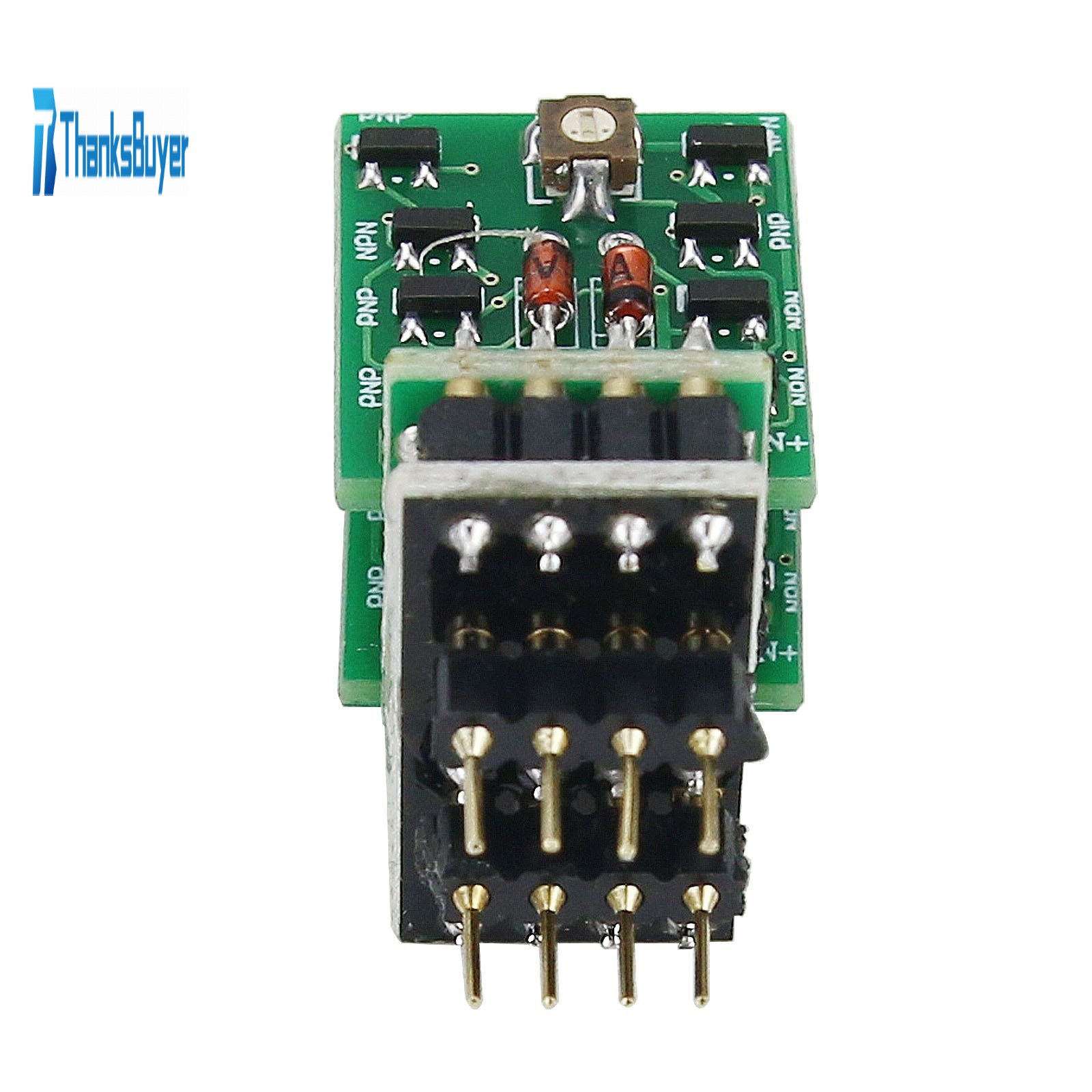

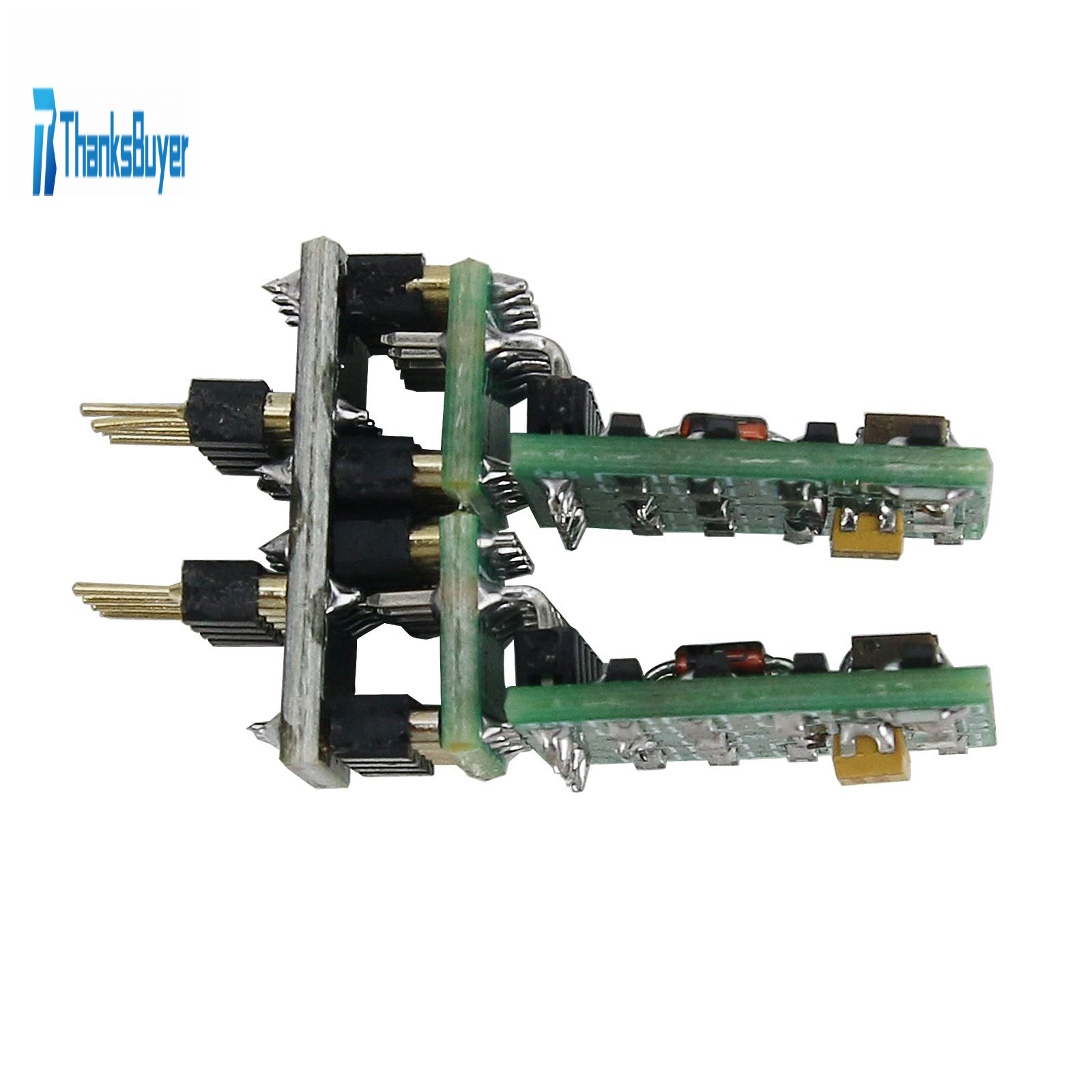

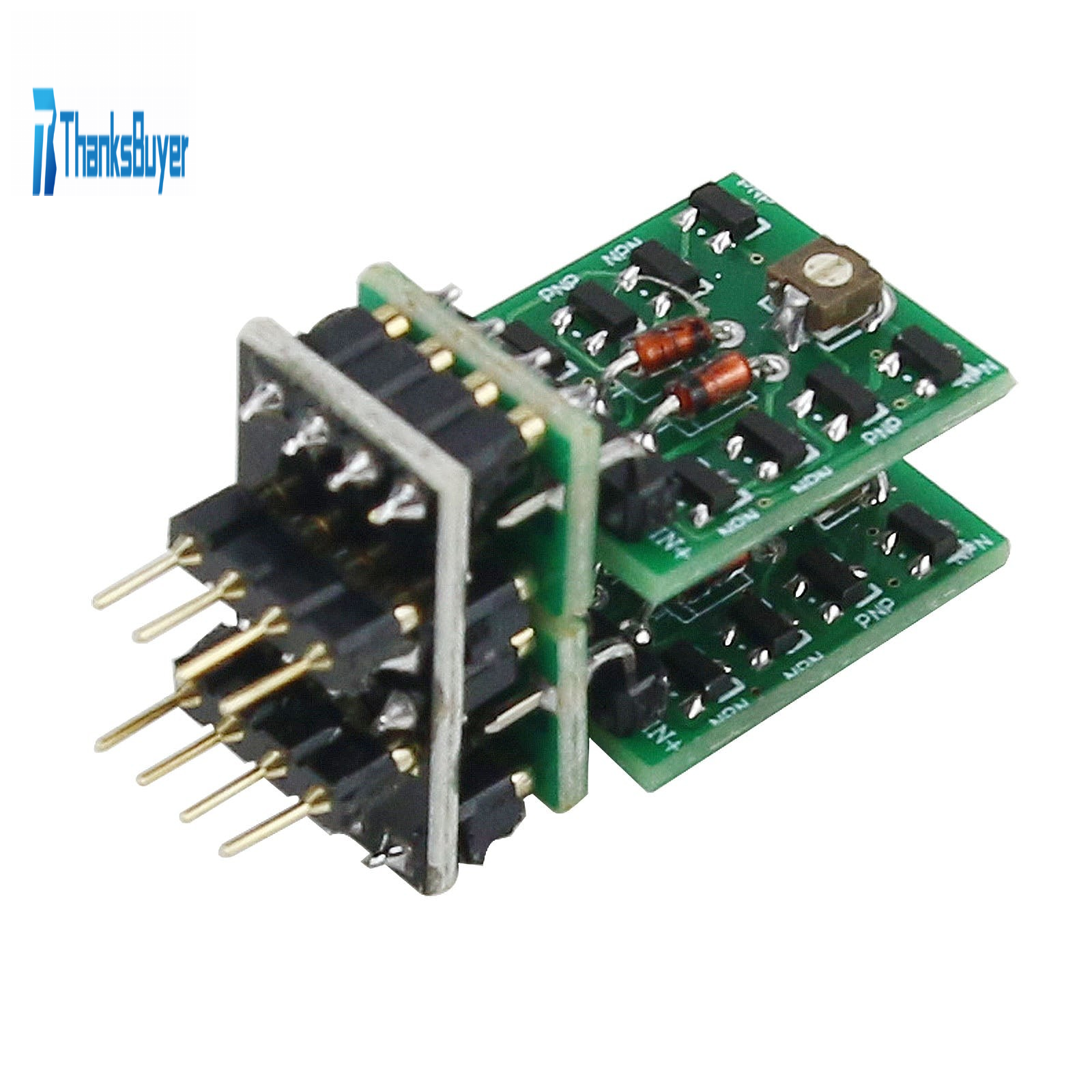

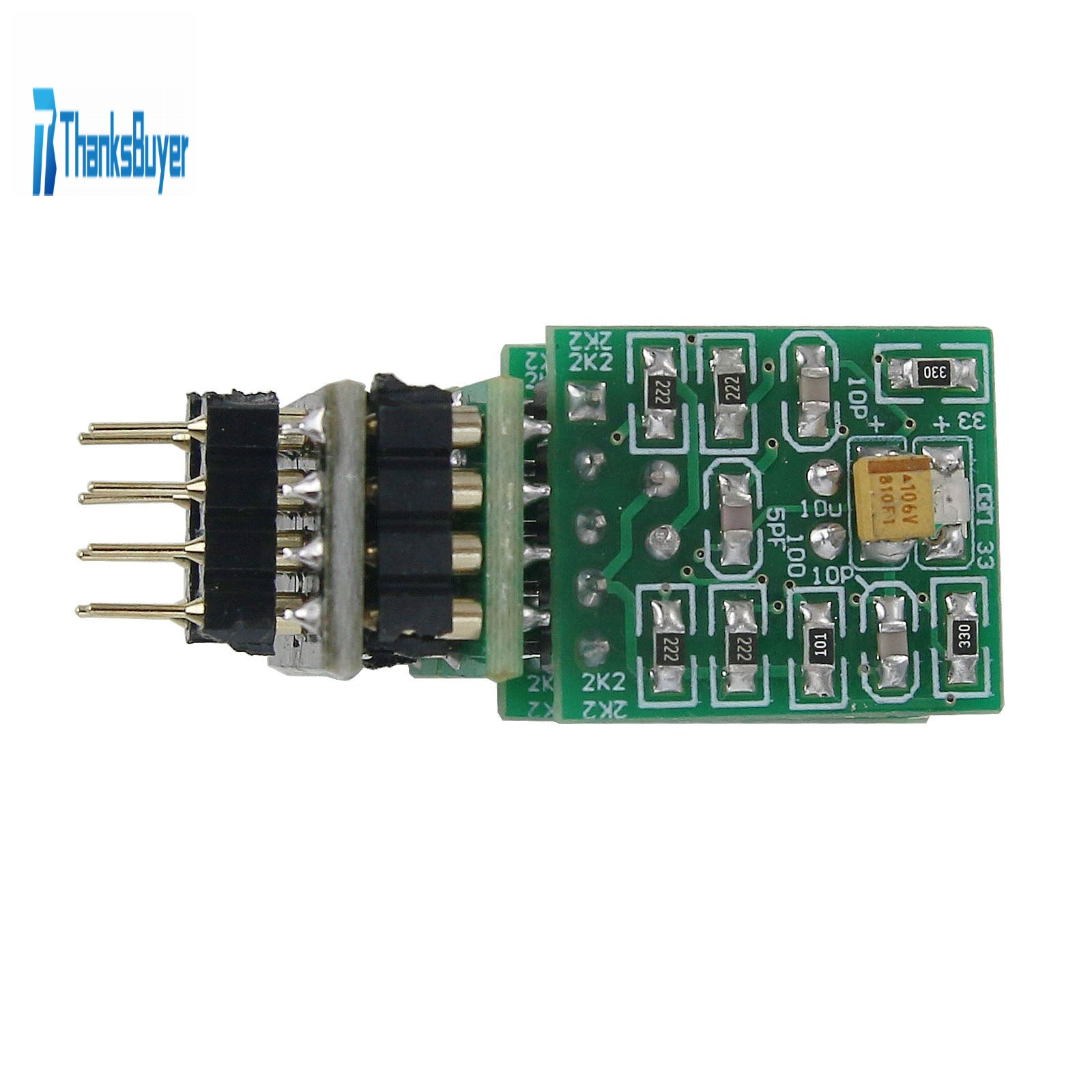

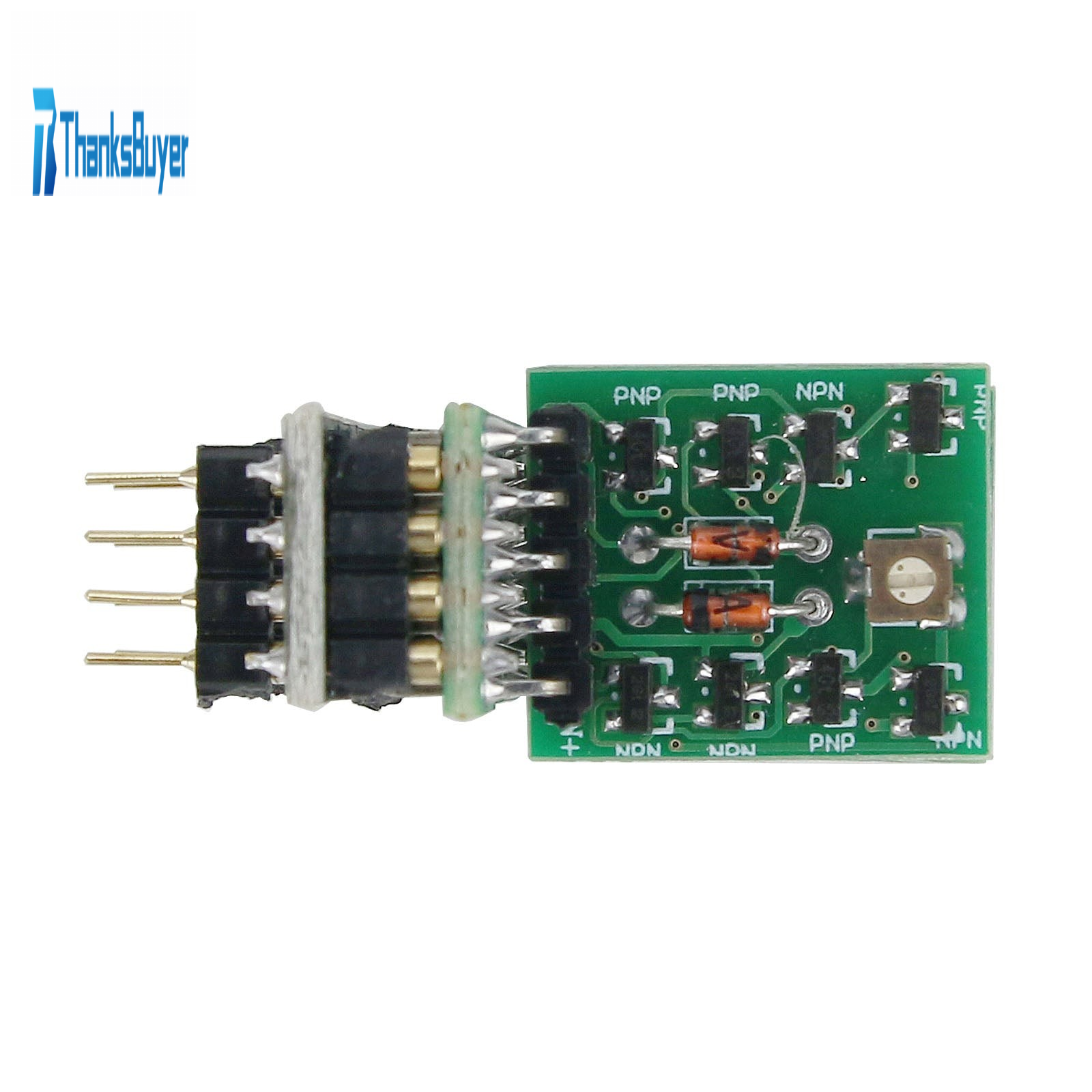

Discrete Dual Op Amp Double Differential Fully Symmetrical Discrete Circuit Compatible with OPA2604

Discrete Dual Op Amp Double Differential Fully Symmetrical Discrete Circuit Compatible with OPA2604

Description:
Using double differential fully symmetrical discrete circuit, low-frequency bounce is very good, full, high-frequency penetrability. It is cost-effective. Excellent compatibility and stable midpoint.

Carefully designed, the bottom area is almost the same as that of a single op amp, the pins are fully compatible with NE5532, LME49720, MUS02, OPA2604 and other op amp.

Op Amp Features:
- A relatively low open-loop gain is used, so no deep negative feedback like op amp is needed, and the sound comes out more natural and delicate.
- The power supply of op amp can be higher. It can work at the highest ±28V, and the dynamic is greater (also works well at ±5V).
- Larger output current. The output current of general op amp is about 40MA, the maximum output current of this op amp is 100MA.
- Can also be converted into dual op amps through single-turn dual-board.
- Compared with OPA series op amp LME49720HA, its vocal roundness, hearing resistance, and control are improved.

Specifications:
- Op amp height is 25MM (exclude the sizes of pins)
- Voltage range: ±5V to ±22V
- Quiescent current: about 30MA
- Frequency response: 0-100KHZ

Package Included:
- 1 x Set of Discrete Operational Amplifier
