This new version of MiniWhip Antenna has these features:
- New version, using modern MMBFJ310 and 2SC2570 semi conductors.
- Real class A circuitry, clean reception without IMD.
- One coax connection.

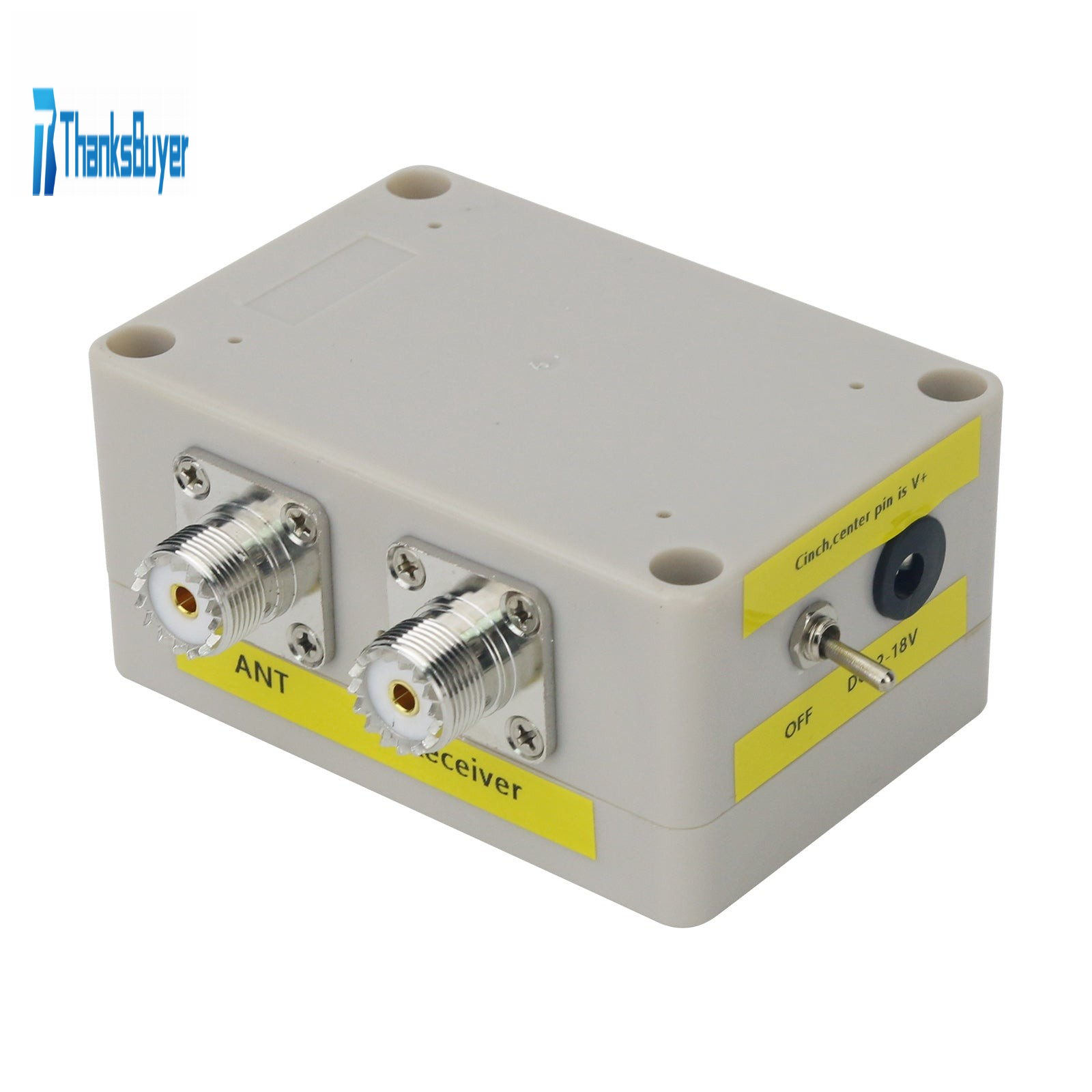

- Broadband L/C coupling to the receiver, no transformer.

Specifications:
- Frequency range: 10 KHz-150 MHz
- Power: 12-18 volts at 50-75 mA
- Secondorder output intercept point: > + 70 dBm
- Third order output intercept point: > + 30 dBm
- Maximum output power: in excess of - 15 dBm
- PCB Size: Length (mm): 90 x 30
- Connector: BNC or M or N
- Feed line: 50 - 100 ohm coaxial cable up to 80 meter long

Attention:
Each antenna performs as good as its installation permits it to. Any active antenna is not working good inside the house!

Package Included:

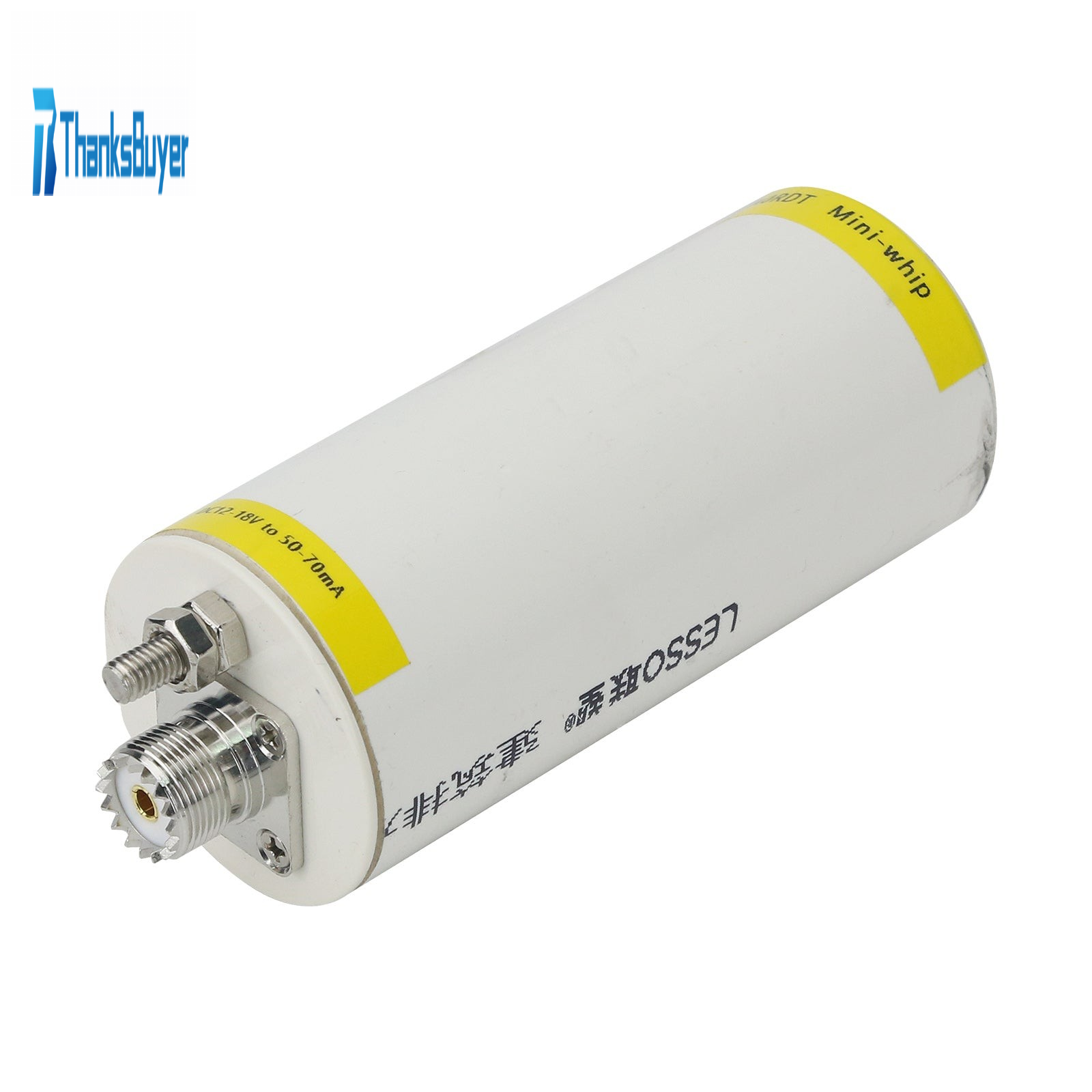

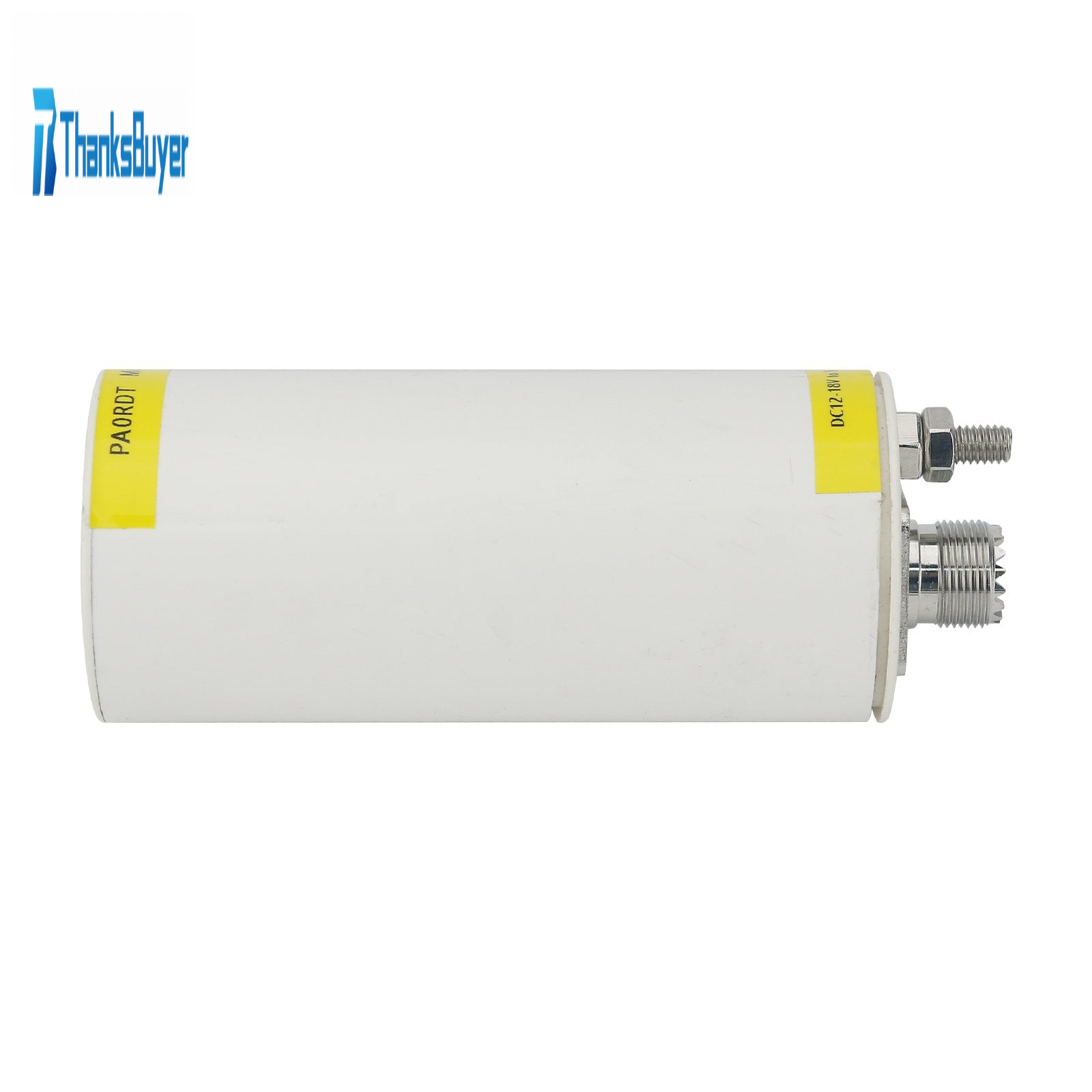

- 1 x Set of Miniwhip Antenna

Note:
1. Mini-whip active receiving antenna is finished product, you need install 18650 battery (not included) and ground net, then it will work.
2.This antenna is only suitable for outdoor use, it can only listen to FM radio indoors.
