Di HamGeek
HamGeek PCIEB210 SDR Development Board 40MHz 10MHz Clock Output Software Defined Radio
Prezzo di listino
$328.39
Prezzo di listino
Prezzo scontato
$328.39
Prezzo unitario
per
Imposte incluse.
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Availability:
2000 disponibile/i
SKU:
103219
Collections:
Prezzo di listino
$328.39
Prezzo di listino
Prezzo scontato
$328.39

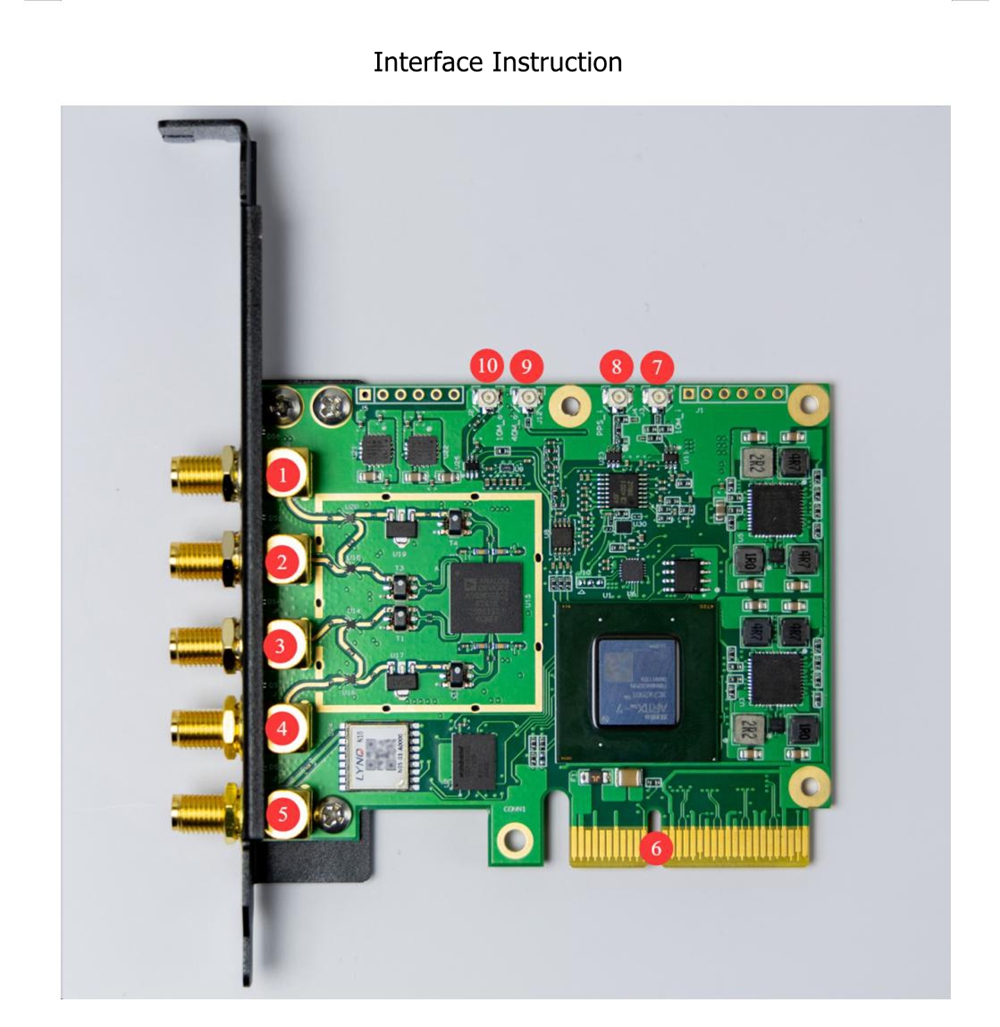

1: TXA, transmission port of channel A.
2: RXA, receiving port of channel A, the input power should not exceed 0dBm.
3: RXB, receiving port of channel B, the input power should not exceed 0dBm.
4: TXA, transmission port of channel B.
5: Connect GPS active antenna to achieve GPSDO function.
6: PCIE interface.
7: Connected to an external active clock, UHD defaults to a frequency of 10MHz.
8: PPS synchronization signal input.
9: 40M clock output.
10: 10M clock output.
Package Included:
- 1 x Development Board
