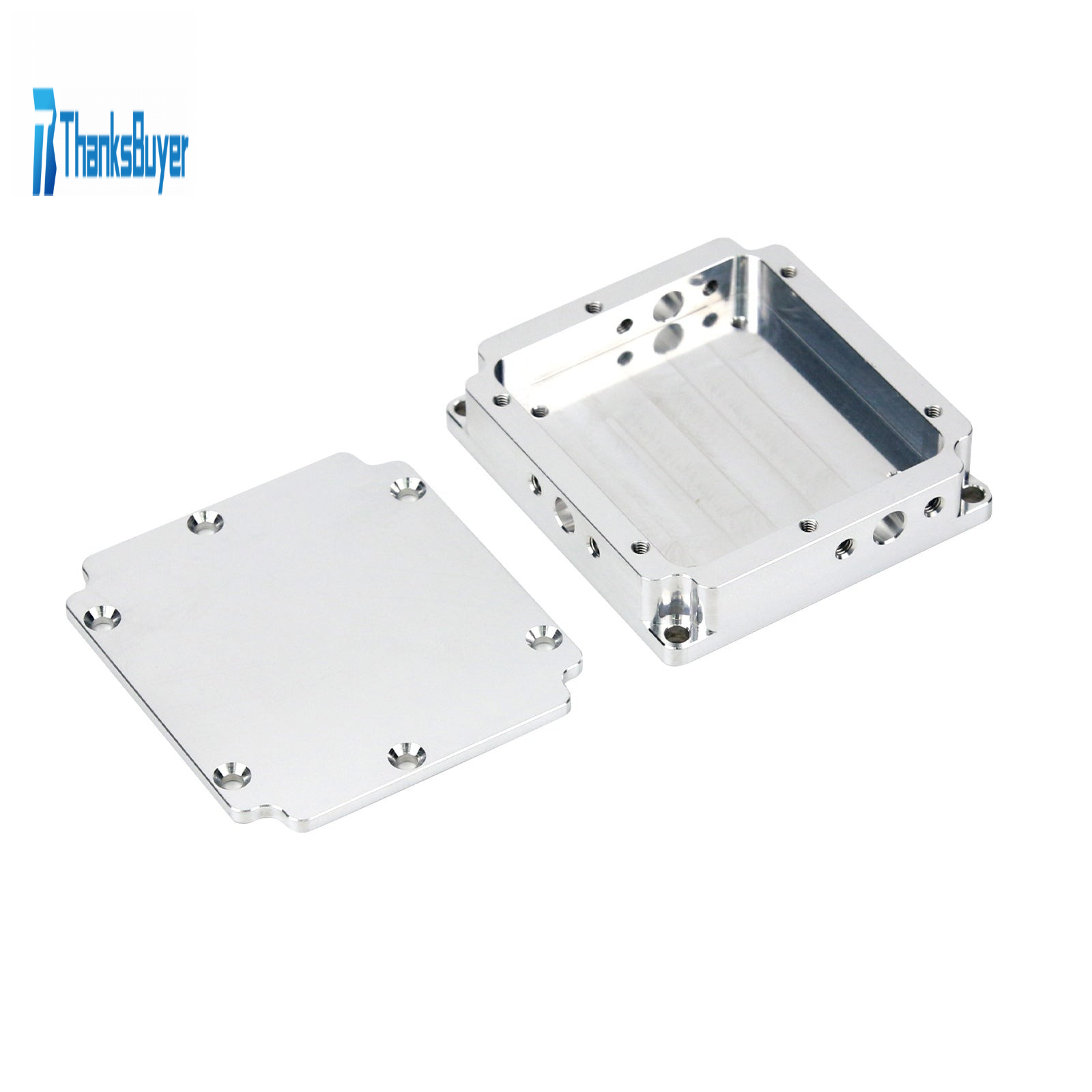

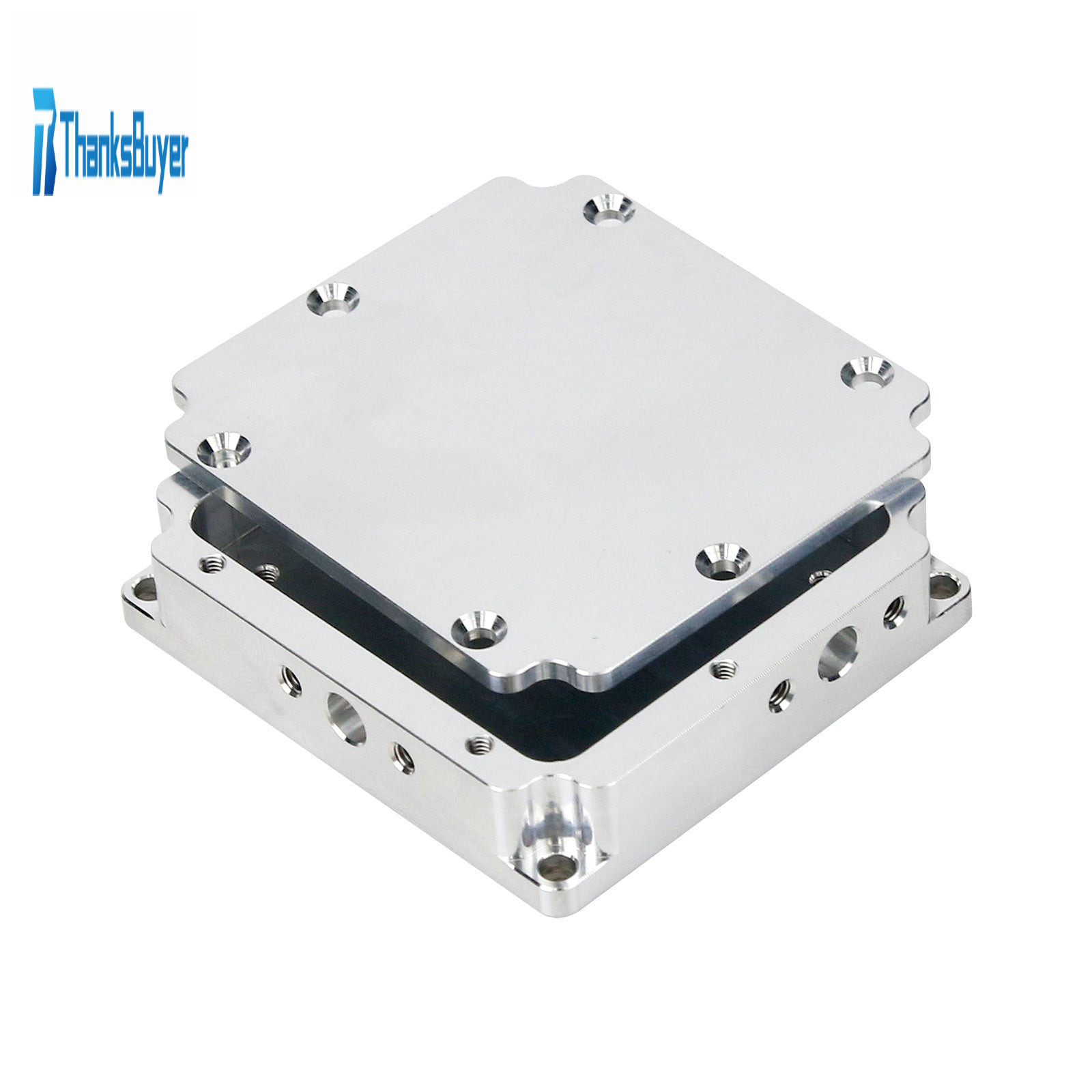

High Quality Aluminum RF Shield Box 49x45x12mm without SMA Connector for Passive Mixer/Power Divider

High Quality Aluminum RF Shield Box 49x45x12mm without SMA Connector for Passive Mixer/Power Divider

Description:
- This product has three SMA interfaces, suitable for single channel RF modules such as passive mixers, power dividers, voltage controlled oscillators, etc.

Specification:
- External size: 49mm x 45mm x 12mm (box cover 2mm)
- Cavity size: 41mm x 37mm x 6mm
- Recommended size of circuit board: smaller than cavity size (The circuit board needs to be chamfered R=3mm)
- Weight: about 50g
- Connector model: SMA-KFD46 (not included)
- Screw size: the interior of the chamber is equipped with M2 screw holes, and the cavity box cover is fixed with countersunk holes.

Package Included:
- 1 x RF Shield Box
- 1 x Screw Pack

Note:
- The SMA connector displayed in the picture is not included.
